Mounting The Tail Wheel - Seagull Models EDGE 540 Assembly Manual

EDGE 540. Instruction Manual.
Cable wire.
1) Insert servo arm into servo.

MOUNTING THE TAIL WHEEL.

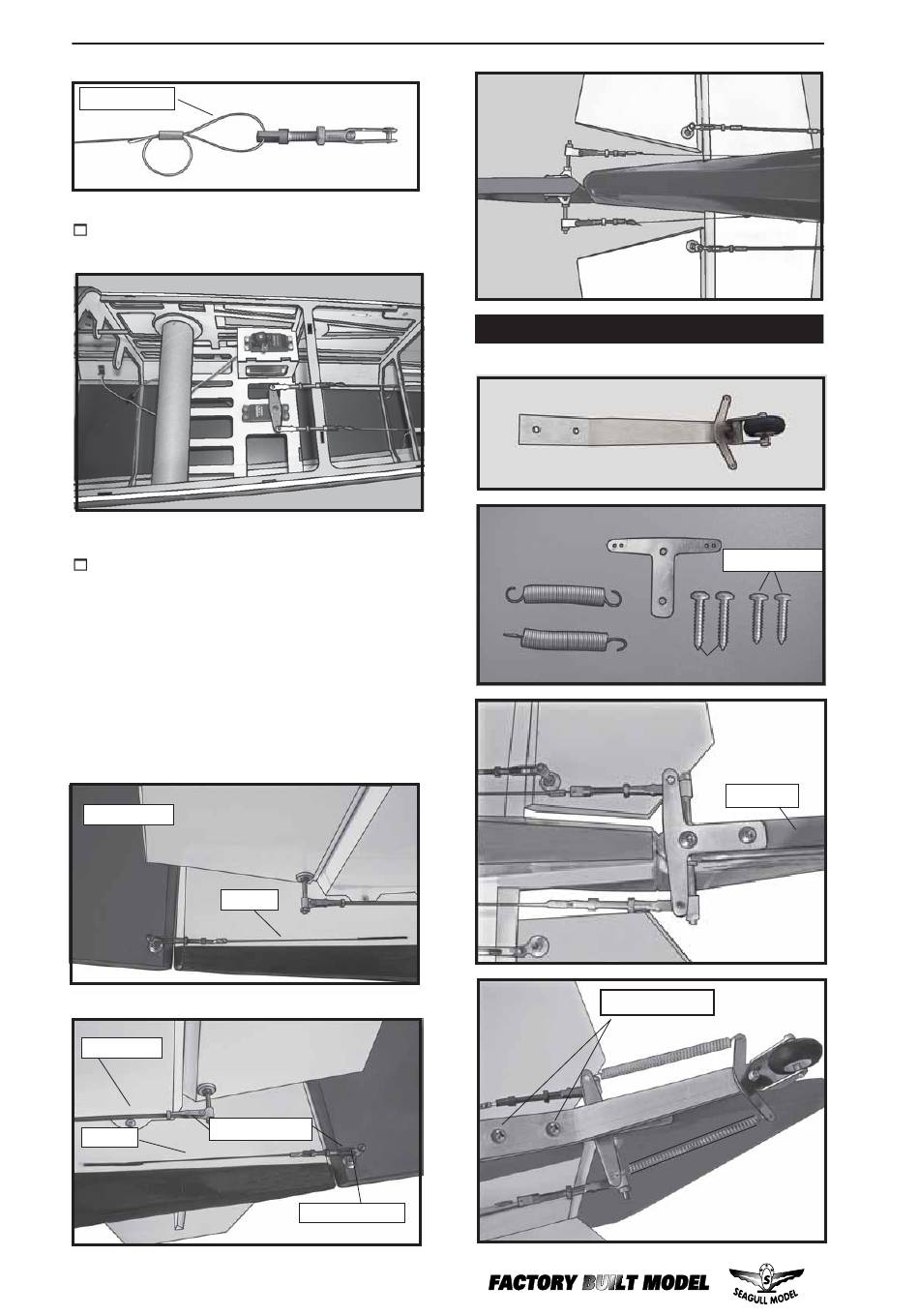

See picture below
M3 x20 mm.
2) With the radio on, check the operation
of the rudder. Adjust the cables so when the
rudder servo is centered, the rudder is
centered as well. There will be tension on the
cables. Adjustments can be made at the rudder
control horn and at the servo arm. Once
adjustments are made, secure the servo arm
to the rudder arm servo using the screw that
came with the servo
Rudder.
Right side.
Cable.
M3 x20 mm.
Pushrod.
Metal clevis.
Cable.
Control horn.
