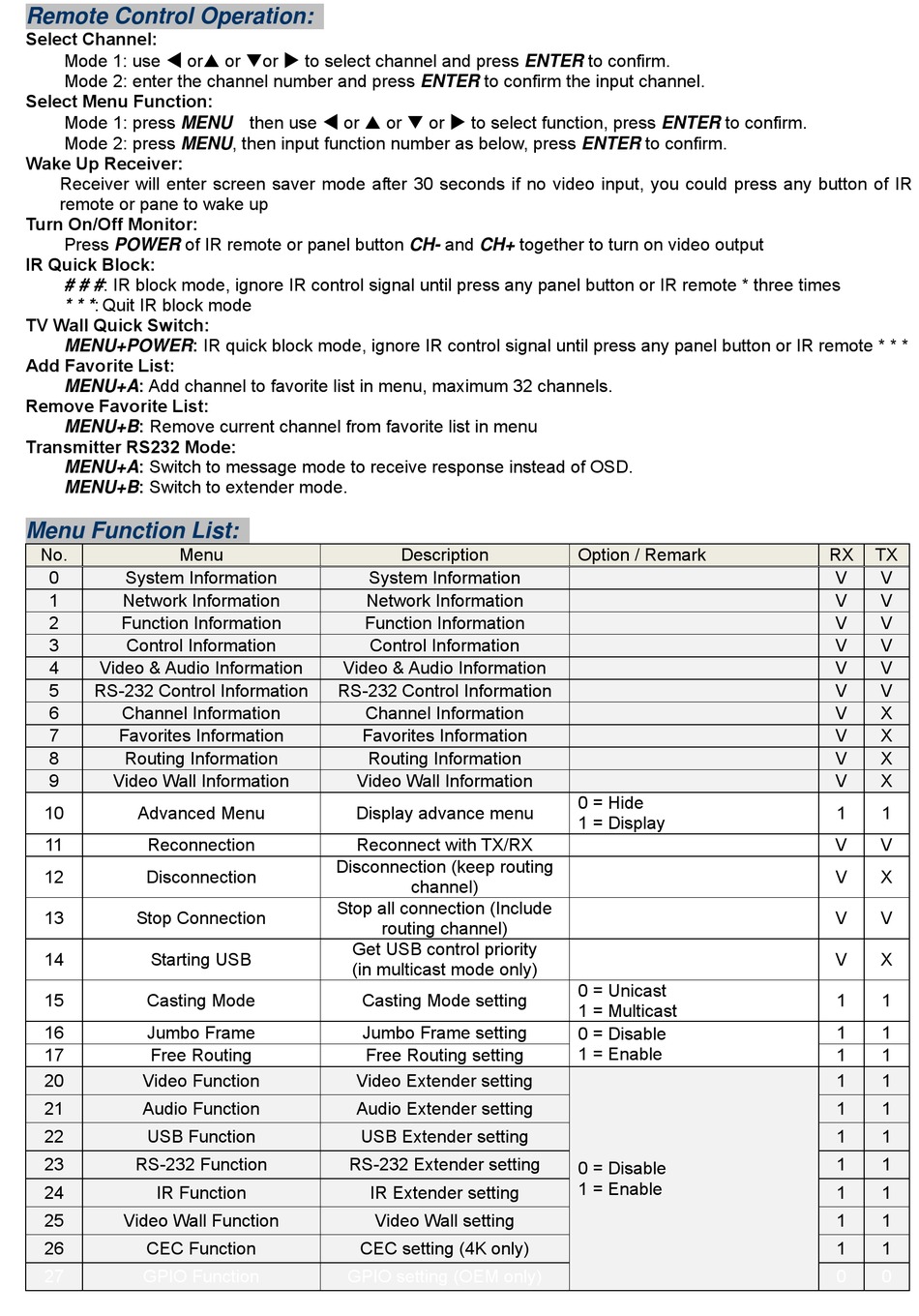

Remote Control Operation:

Select Channel:

or or or
Mode 1: use
Mode 2: enter the channel number and press ENTER to confirm the input channel.
Select Menu Function:
Mode 1: press MENU then use
Mode 2: press MENU, then input function number as below, press ENTER to confirm.
Wake Up Receiver:
Receiver will enter screen saver mode after 30 seconds if no video input, you could press any button of IR
remote or pane to wake up
Turn On/Off Monitor:
Press POWER of IR remote or panel button CH- and CH+ together to turn on video output
IR Quick Block:
# # #: IR block mode, ignore IR control signal until press any panel button or IR remote * three times
* * *: Quit IR block mode
TV Wall Quick Switch:
MENU+POWER: IR quick block mode, ignore IR control signal until press any panel button or IR remote * * *
Add Favorite List:
MENU+A: Add channel to favorite list in menu, maximum 32 channels.
Remove Favorite List:
MENU+B: Remove current channel from favorite list in menu
Transmitter RS232 Mode:
MENU+A: Switch to message mode to receive response instead of OSD.
MENU+B: Switch to extender mode.

Menu Function List:

No. Menu
0 System Information
1 Network Information
2 Function Information
3 Control Information
4 Video & Audio Information
5 RS-232 Control Information
6 Channel Information
7 Favorites Information
8 Routing Information
9 Video Wall Information
10 Advanced Menu
11 Reconnection
12 Disconnection
13 Stop Connection
14 Starting USB
15 Casting Mode
16 Jumbo Frame
17 Free Routing
20 Video Function
21 Audio Function
22 USB Function
23 RS-232 Function
24 IR Function
25 Video Wall Function
26 CEC Function
27 GPIO Function

to select channel and press ENTER to confirm.
 
or  or  or
Description
System Information
Network Information
Function Information
Control Information
Video & Audio Information
RS-232 Control Information
Channel Information
Favorites Information
Routing Information
Video Wall Information
Display advance menu
Reconnect with TX/RX
Disconnection (keep routing
channel)
Stop all connection (Include
routing channel)
Get USB control priority
(in multicast mode only)
Casting Mode setting
Jumbo Frame setting
Free Routing setting
Video Extender setting
Audio Extender setting
USB Extender setting
RS-232 Extender setting
IR Extender setting
Video Wall setting
CEC setting (4K only)
GPIO setting (OEM only)
to select function, press ENTER to confirm.
Option / Remark
0 = Hide
1 = Display
0 = Unicast
1 = Multicast
0 = Disable
1 = Enable
0 = Disable
1 = Enable
RX TX
V V
V V
V V
V V
V V
V V
V X
V X
V X
V X
1 1
V V
V X
V V
V X
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
0 0
