- Page 1 HDMI/ KVM Extender Series User Manual Model : HKM01-4K 4K HDMI USB/Audio/RS232/IR CAT5e KVM Extender 140M with Fiber Smart Cabling & Transmission Corp. V1.0...
- Page 2 HKM01-4K Introduction HKM01-4K is a 4K HDMI KVM extender that use a cost-effective Ethernet cable to send HDMI, USB, Analog audio, RS232, and IR signals with transmission distance up to 140 meters. Its TX unit has an HDMI loop out port for an extra HDMI display.
-
Page 3: Panel View
User Manual HKM01-4K Panel View HKM01T-4K Interface Function SFP Connector To insert a SFP transceiver module LINK/ACT To indicate the status of SFP link and data transmission RJ45 Connector To connect HKM01T-4K/ HKM01R-4K HDMI IN To connect a HDMI source... -
Page 4: Led Indication

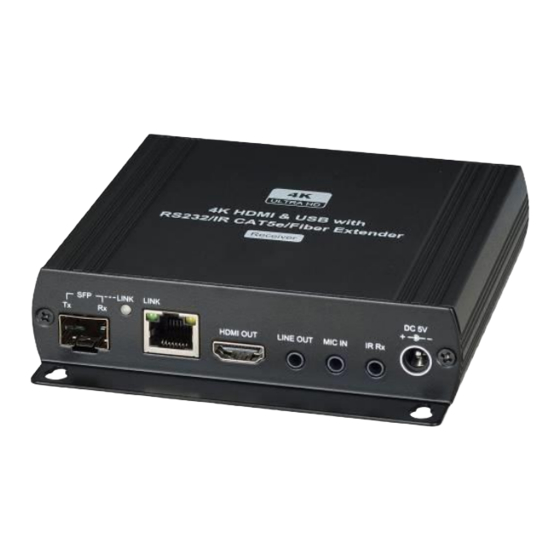

User Manual HKM01-4K HKM01R-4K Interface Function HDMI OUT To connect an HDMI display MIC IN To connect a 3.5mm jack for a microphone IR Rx To connect a 3.5mm jack for an IR receiver Internal IR receiver To receive IR signal... -
Page 5: Bottom View
User Manual HKM01-4K Bottom View HKM01T-4K HKM01R-4K Interface Function Tx Button 1 To set up EDID Tx DIP Switch To set up Groups, RS232, and EDID Rx Button 1 To check the status of MAC, IP, Baud Rate and EDID... - Page 6 User Manual HKM01-4K RS232 Pin Define DB9 (Male) DB9 (Female) Grouping Set up the switch of Tx and Rx (HKM01T/R-4K) to choose a group. SWITCH Group / Settings SW 1 Group 0 OFF↑ Group 1 ON↓ Set up the Channel a.
- Page 7 User Manual HKM01-4K RS232 Setting Refer to the instructions below to adjust the DIP switch. Tx (HKM01T-4K) Rx (HKM01R-4K) SWITCH Function Settings SWITCH Function Settings OFF↑ OFF↑ RS232 On RS232 On (Default) (Default) OFF↑ Button Check the bottom of the receiver (HKM01R-4K).
-
Page 8: Troubleshooting
User Manual HKM01-4K Digital /Analog Audio Conversion Function Transmitter Transmitter Receiver Receiver Description LINE IN LINE OUT MIC IN LINE OUT Analog Bypass Analog Audio IN, Analog Audio OUT (Monitor Audio Muted) Audio Analog Audio IN, HDMI Audio OUT Embedder... -
Page 9: Specification
User Manual HKM01-4K Specification ITEM NO. HKM01T-4K HKM01R-4K Support Compliance HDMI 1.4 , HDCP 1.4, USB 2.0/ 1.1/ 1.0 Max. Video Resolution 4K@30Hz Max. Transmission Distance 120M over CAT5e; 140M over CAT6; 60KM over single mode fiber optic Audio Format LPCM7.1@192KHZ...
