- Page 1 USB/Keyboard Mouse Extender Series User Manual Model : UE02H USB 2.0 CAT5e Extender with 4 Port Hub 140M Smart Cabling & Transmission Corp. V1.0...
-
Page 2: Installation View

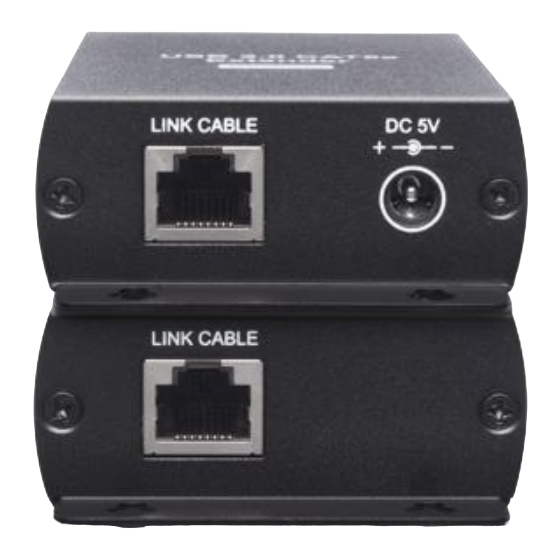

User Manual UE02H Introduction UE02H is a USB extender designed to carry 4 ports of USB signal to the remote side using a cost-effective Ethernet cable. It is a perfect solution for digital signage, home network integration, and industrial control. Features Extends an USB signal using an Ethernet cable. - Page 3 User Manual UE02H Panel View UE02HT UE02HR UE02HT Panel Interface Description USB Type B Port Connects to PC with USB type B to Type A cable. (Cable is included in package.) Power LED (Green) Green light indicates “ON” status. Link LED (Blue) Blue light indicates that UE02HT and UE02HR are linked.
-
Page 4: Package Included
User Manual UE02H Notes 1. a. Cable: (1) It is recommended to use high quality CAT5e UTP/STP/FTP or CAT6 UTP cable. (2) The transmission distance may be decreased by the cable quality, performance of input or output devices and installing environment . -
Page 5: Specification
User Manual UE02H Specification ITEM NO. UE02T UE02R Support Compliance USB 2.0, USB 1.1, USB 1.0 Data Bandwidth 120 Mbps Max. Transmission Distance 140M over CAT6, 120M over CAT5e Ports & Interfaces Data Input 1 x USB Type B 1 x RJ45...
