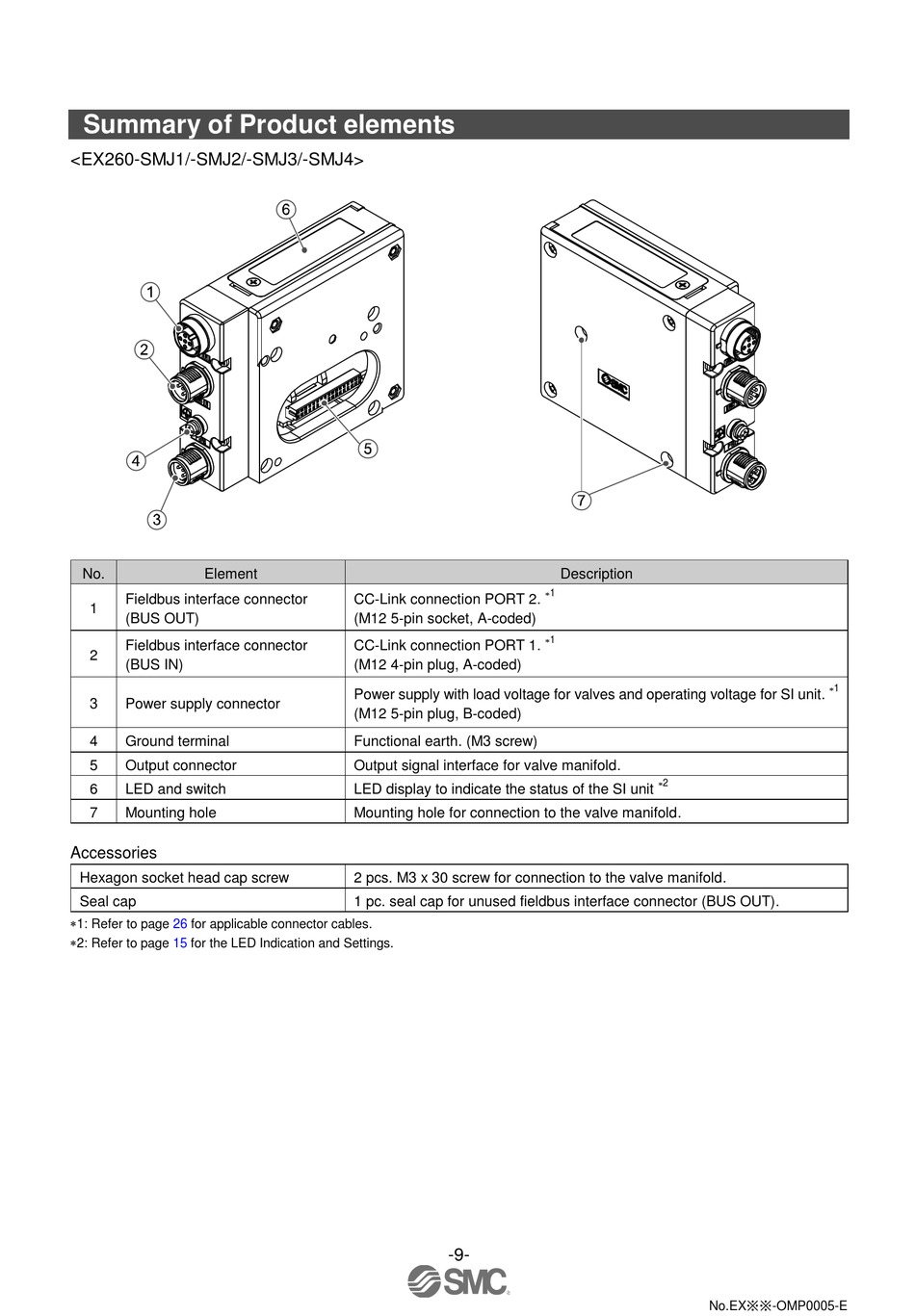

Summary of Product elements

<EX260-SMJ1/-SMJ2/-SMJ3/-SMJ4>
No. Element
Fieldbus interface connector
1
(BUS OUT)
Fieldbus interface connector
2
(BUS IN)
3 Power supply connector
4 Ground terminal
5 Output connector
6 LED and switch
7 Mounting hole
Accessories
Hexagon socket head cap screw
Seal cap
1: Refer to page
26 for applicable connector cables.
2: Refer to page
15 for the LED Indication and Settings.
CC-Link connection PORT 2.
(M12 5-pin socket, A-coded)
CC-Link connection PORT 1.
(M12 4-pin plug, A-coded)
Power supply with load voltage for valves and operating voltage for SI unit.
(M12 5-pin plug, B-coded)
Functional earth. (M3 screw)
Output signal interface for valve manifold.
LED display to indicate the status of the SI unit
Mounting hole for connection to the valve manifold.
2 pcs. M3 x 30 screw for connection to the valve manifold.
1 pc. seal cap for unused fieldbus interface connector (BUS OUT).
-9-
Description
 1
 1
 2
No.EX※※-OMP0005-E
