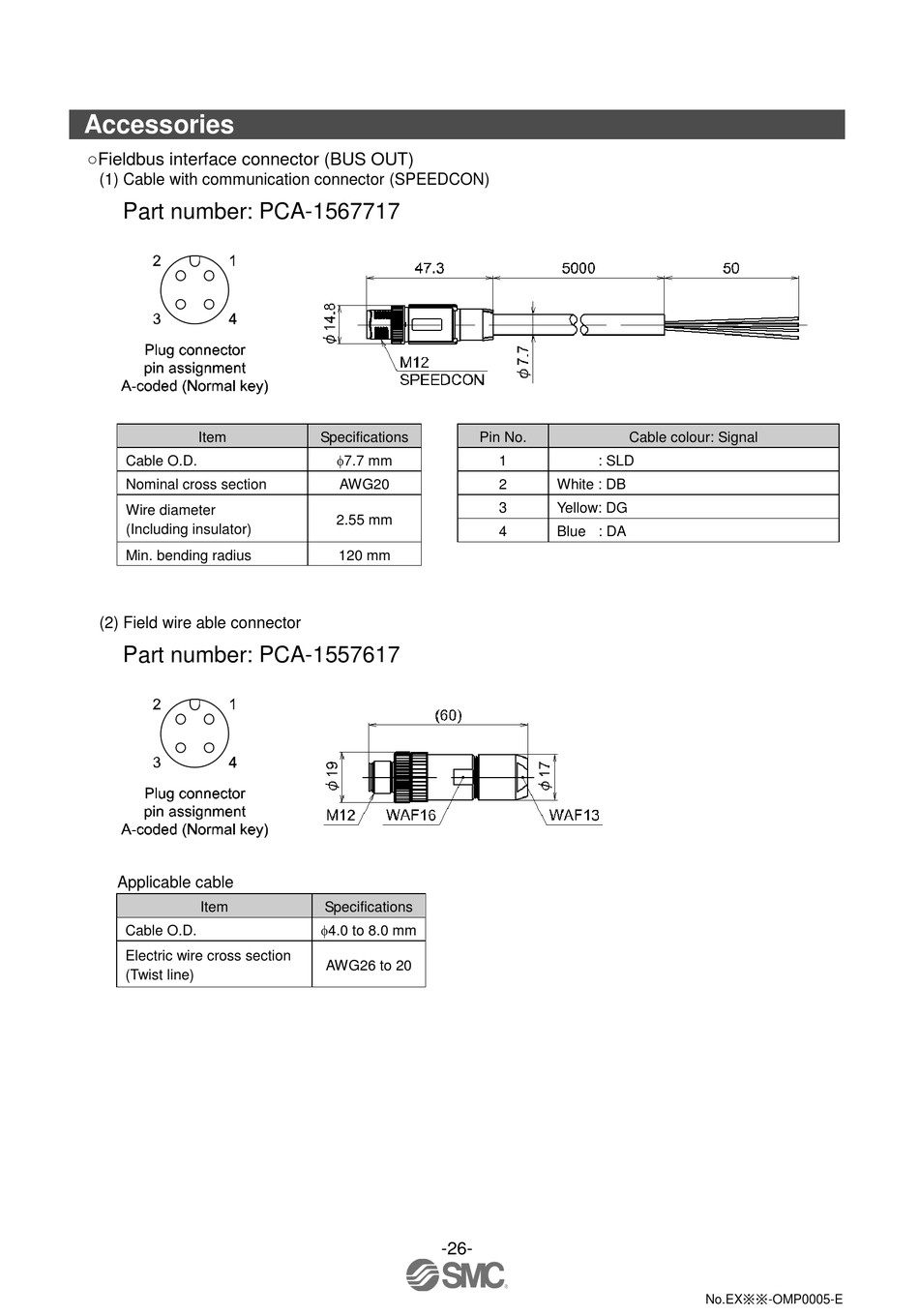

Accessories

○Fieldbus interface connector (BUS OUT)
(1) Cable with communication connector (SPEEDCON)
Part number: PCA-1567717
Item
Cable O.D.
Nominal cross section
Wire diameter
(Including insulator)
Min. bending radius
(2) Field wire able connector
Part number: PCA-1557617
Applicable cable
Item
Cable O.D.
Electric wire cross section
(Twist line)
Specifications Pin No.
7.7 mm
AWG20
2.55 mm
120 mm
Specifications
4.0 to 8.0 mm
AWG26 to 20
-26-
Cable colour: Signal
1 : SLD
2 White : DB
3 Yellow: DG
4 Blue : DA
