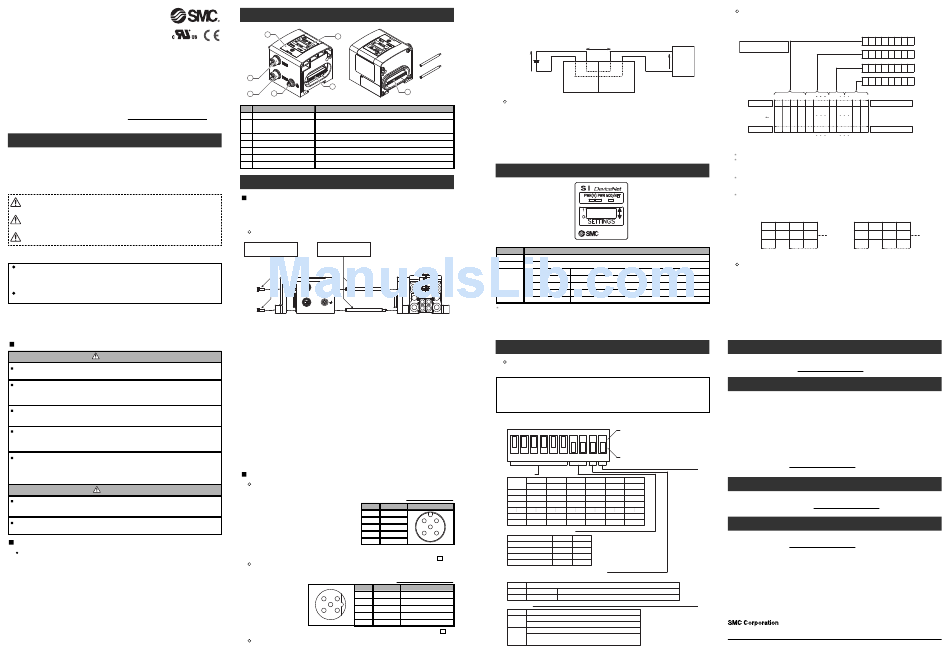

SMC Networks EX250 Series Operation Manual

Fieldbus device
Operation Manual
EX250 Series for DeviceNet TM
Thank you for purchasing an SMC EX250 Series Fieldbus device (Hereinafter
referred to as "SI unit" ).
Please read this manual carefully before operating the product and make sure you
understand its capabilities and limitations.
Please keep this manual handy for future reference.
To obtain more detailed information about operating this product,
please refer to the SMC website (URL http://www.smcworld.com) or
contact SMC directly.
Safety Instructions
These safety instructions are intended to prevent hazardous situations and/or
equipment damage.
These instructions indicate the level of potential hazard with the labels of
"Caution", " Warning" or "Danger". They are all important notes for safety and
must be followed in addition to International standards (ISO/IEC) and other safety
regulations.
Caution: CAUTION indicates a hazard with a low level of risk which, if
not avoided, could result in minor or moderate injury.
WARNING indicates a hazard with a medium level of risk
Warning:
which, if not avoided, could result in death or serious injury.
DANGER indicates a hazard with a high level of risk which, if
Danger:
not avoided, will result in death or serious injury.
Operator
This operation manual is intended for those who have knowledge of machinery
using pneumatic equipment, and have sufficient knowledge of assembly,
operation and maintenace of such equipment. Only those persons are allowed
to perform assembly, operation and maintenance.
Read and understand this operation manual carefully before assembling,
operating or providing maintenance to the product.
Safety Instructions
Warning
Do not disassemble, modify (including changing the printed circuit board) or repair.
An injury or failure can result.
Do not operate the product outside of the specifications.
Do not use for flammable or harmful fluids.
Fire, malfunction, or damage to the product can result.
Verify the specifications before use.
Do not operate in an atmosphere containing flammable or explosive gases.
Fire or an explosion can result.
This product is not designed to be explosion proof.
If using the product in an interlocking circuit:
•Provide a double interlocking system, for example a mechanical system.
•Check the product regularly for proper operation.
Otherwise malfunction can result, causing an accident.
The following instructions must be followed during maintenance:
•Turn off the power supply.
•Stop the air supply, exhaust the residual pressure and verify that the air is released before performing
maintenance.
Otherwise an injury can result.
Caution
After maintenance is complete, perform appropriate functional inspections.
Stop operation if the equipment does not function properly.
Safety cannot be assured in the case of unexpected malfunction.
Provide grounding to assure the safety and noise resistance of the Fieldbus system.
Individual grounding should be provided close to the product with a short cable.
NOTE
When conformity to UL is necessary the SI unit must be used with a UL1310
Class2 power supply.

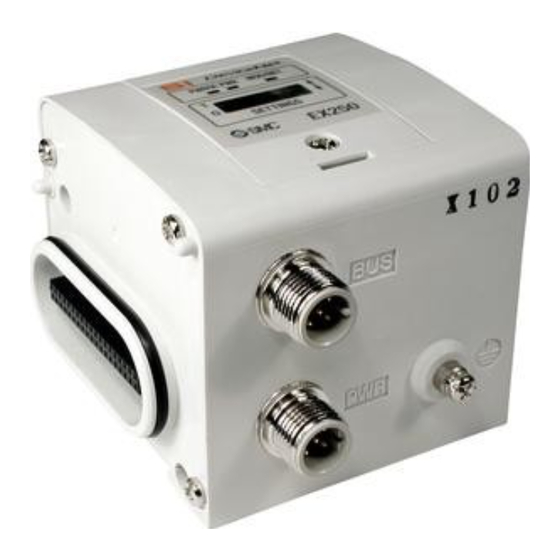

Summary of Product elements
6
5
1
Tie-rod (2 pcs.)
4
Accessory
3
7
2
No. Description Function
1 Communication connector Connect with DeviceNet communication line.
TM
Supplies power to the solenoid valve, the Output block, SI unit and the Input
2 Power supply connector
block.
3 Input block connector Connects the Input block.
4 Output block connector Connects the solenoid valve, Output block and etc.
5 Display LED display shows the SI unit status.
6 Switch protective cover Set MAC ID and Baud rate by using the switches under the cover.
7 Grounding terminal Used for grounding.
Mounting and Installation
Installation
The SI unit does not have mounting holes, so it cannot be installed alone. Make sure to
connect the solenoid valve. When an input block is not required, connect the end plate
directly to the SI unit.
Assembly and disassembly of the SI unit
M3 hexagon screw Tie-rod
Tightening torque: 0.6 Nm Tightening torque: 0.6 Nm
BUS
PWR
End plate SI unit Valve manihold
Exchange of SI unit
•Remove screws from End Plate and release connection of each unit.
•Replace old SI unit with new one. (Tie rod does not need to be removed.)
•Connect Input Block and End Plate and tighten removed screws by specified
tightening torque. (0.6 Nm)
Assembly and disconnection of unit
Addition of Input Block
•Remove screws from End Plate.
•Mount attached tie rod.
•Connect additional Input Block.
•Connect End Plate and tighten removed screws by specified tightening torque.
(0.6 Nm)
Caution for maintenance
(1) Be sure to turn-off all power supplies.
(2) Be sure that there is no foreign object in any of units.
(3) Be sure that gasket is lined properly.
(4) Be sure that tightening torque is according to specification.
If these items are not kept, it may lead to the breakage of substrate or intrusion of
liquid or dust into the units.
Wiring
Communication wiring
•Communication connector
M12 5-pin plug A-code
Pin No. Signal name Configuration
1 DRAIN
2
2 V+
3 V-
3
4 CAN_H
5 CAN_L
Example of the cable with connector: PCA-1557633
EX500-AC
Power supply wiring
Refer to "Safety Instructions" on this manual when selecting the power supply.
•Power supply connector
M12 5-pin B-code (reverse)
No. Description Function
3 2
1 SV24 V +24 V for solenoid valve.
2 SV0 V 0 V for solenoid valve
5 3 SW24 V +24 V for input block
4 1
4 SW0 V 0 V for input block
5 FE Ground
Example of the cable with connector: EX9-AC
FE connection
Connect the ground terminal to the ground. Resistance to the ground should be 100 Ω
or less.
SW power is supplied to the sensor connected to the input block. There is a voltage drop up
to maximum 1 V inside the SI unit when SW power is supplied. Select a sensor taking this
voltage drop into consideration. If 24 V must be supplied to the sensor, it is necessary to
increase the SW power supply voltage so that the input voltage of the sensor will be 24 V with
the actual load. (Allowable SW power supply range: 19.2 V to 28.8 V)
Voltage drop of max. 1 V
SW power
24 VDC
SI unit
Terminating resistors
DeviceNet TM requires a terminating resistor to be installed at each end of the trunk.
The resistor requirements are:
•121 Ω
•1% metal film
•1/4 W
Terminating resistors should not be installed at the end of a drop line, only at the two
ends of trunk line.
LED indication
EX250
LED
PWR(V) Green LED is ON when power for solenoid valve is supplied.
PWR Green LED is ON when power for DeviceNet
OFF Power supply is off, on-line status or checking for MAC ID duplication.
Green LED is flashing I/O connection stand-by (on-line status)
MOD/NET Green LED is ON I/O connection established (on-line status)
Red LED is flashing I/O connection time-out (minor communication error)
Red LED is ON MAC ID duplication error or BUS OFF error (serious communication error)
: EX250-SDN1 disconnects the I/O connection when the solenoid valve power supply decreases or
when the input block fuse is detected to be broken (EX250-SDN1-X102 does not disconnect the I/O
connection).
Setting
Switch setting
Open the protective cover, and set the switches with a small flat blade screwdriver.
Note
1. The power supply should be off while setting the switches.
2. Be sure to set the switches before use.
3. After setting the switches, close the switch cover and tighten the screw to the
specified torque. (Tightening torque: 0.6 Nm)
Address setting
ON
1 2 3 4 5 6 7 8 9 10
Node address
(MAC ID) setting
SW1-1 SW1-2 SW1-3 SW1-4
MAC ID
2 0 (1) 2 1 (2) 2 2 (4) 2 3 (8)
0 0 0 0 0
1 1 0 0 0
2 0 1 0 0
62 0 1 1 1
1
63 1 1 1 1
5
4 Communication speed (Baud Rate)
Communication speed SW1-7 SW1-8
125 kbps 0 0
250 kbps 1 0
500 kbps 0 1
-DN
Unused 1 1
Setting of solenoid output state in communication fault
Solenoid output state: Communication stops (I/O connection time out) or fault message is received.
SW1-9 Solenoid output state
1 HOLD All solenoid valve outputs are hold before communication fault.
0 CLEAR All solenoid valve outputs are reset to zero.
Mode setting
SW1-10 Mode
H / W mode
0
Set address and communication speed by SW1 to 8.
-1 S / W mode
1
Set address and communication speed by network1.
* : SW1-1 to 8 are invalid.
Output No. assignment
Combinations of output data and valve manifold
0: Solenoid valave OFF
1: Solenoid valave ON
+
23 VDC Sensor
-
Input block
Bit No. 0 2
Output No. 0 2
Side D
(SI unit side)
Output No. 1 3
Bit No. 1 3
: Output No. starts from 0, and will be assigned to the valves in order from the SI unit mounted side
: Manifold wiring is double wired as standard ("double wiring specification"), and the output
numbers are assigned in order from A side to B side. If the mounted valves are single solenoid
valves, the output on B side will be empty. (See Figure a)
: Special wiring specification with a mixed wiring of single solenoid and double solenoid can be
specified with a wiring specification sheet. This makes it possible to specify the output numbers
without empty outputs. (See Figure b)
: Each bit status, 0 or 1, of the data shows the ON or OFF solenoid valve status (0: OFF, 1: ON),
and the output number starting from 0 will be assigned to from the lowest bit of the memory data.
Fig.a
Double Single Double Double
No. 0 2
Station 1 2
No. 1 3
Description
TM communication is supplied. Input No. assignment
The inputs of the Input block are assigned from the SI unit side Input block in the order
0,1,2...maximum of 31.
Troubleshooting
Technical documentation giving detailed troubleshooting information can be found
on the SMC website (URL http://www.smcworld.com).
Specifications
Power for SI unit: 11 to 25 VDC, 0.1 A or less
Power for input block: 24 VDC ±20%, 1 A or less (Depending on number of connecting
Power for solenoid valve: 24 VDC +10%/-5%, 2 A or less
1
Connection load: Solenoid valve with protection circuit for 24 VDC and 1.5 W or less surge
voltage. (made by SMC)
Operating ambient temp: -10 to 50
Pollution degree: Pollution degree 3 (UL508)
0 Technical documentation giving detailed specification information can be found on
the SMC website (URL http://www.smcworld.com).
SW1-5 SW1-6
Outline Dimensions
2 4 (16) 2 5 (32)
0 0
0 0 Technical documentation giving detailed outline dimensions information can be
0 0 found on the SMC website (URL http://www.smcworld.com).
1 1
Accessories
1 1
Technical documentation giving detailed accessories information can be found on
the SMC website (URL http://www.smcworld.com).
wkihabaraNUzXNgk©bNjcgjcgbNSotokandabNyhiyodackubNTokyoNgfgcffhgbNJwPwN
PhonepNangNickhfmcnhjoNNN©axpNangNickhonckilh
Note: Specifications are subject to change without prior notice and any obligation on the part of the manufacturer.
DeviceNet TM is a trademark of ODVA.
© 2011 SMC Corporation All Rights Reserved
Output data
Bit: 7 0
Byte
0 Offset
Bit: 7 0
Byte
1 Offset
Bit: 7 0
Byte
2 Offset
Bit: 7 0
Byte
3 Offset
4 6 0 0 4 6
4 6 8 16 28 30 Solenoid on side A
5 7 9 17 29 31 Solenoid on side B
5 7 1 1 5 7
Valve manihold
Fig.b
Double Single Double Double
4 6 A No. 0 2 3 5 A
3 4 Station 1 2 3 4
5 7 B No. 1 - 4 6 B
Free
sensors and specifications)
(Depending on number of solenoid valve station and
specifications)
o C Storage ambient temp: -20 to 60 o C
