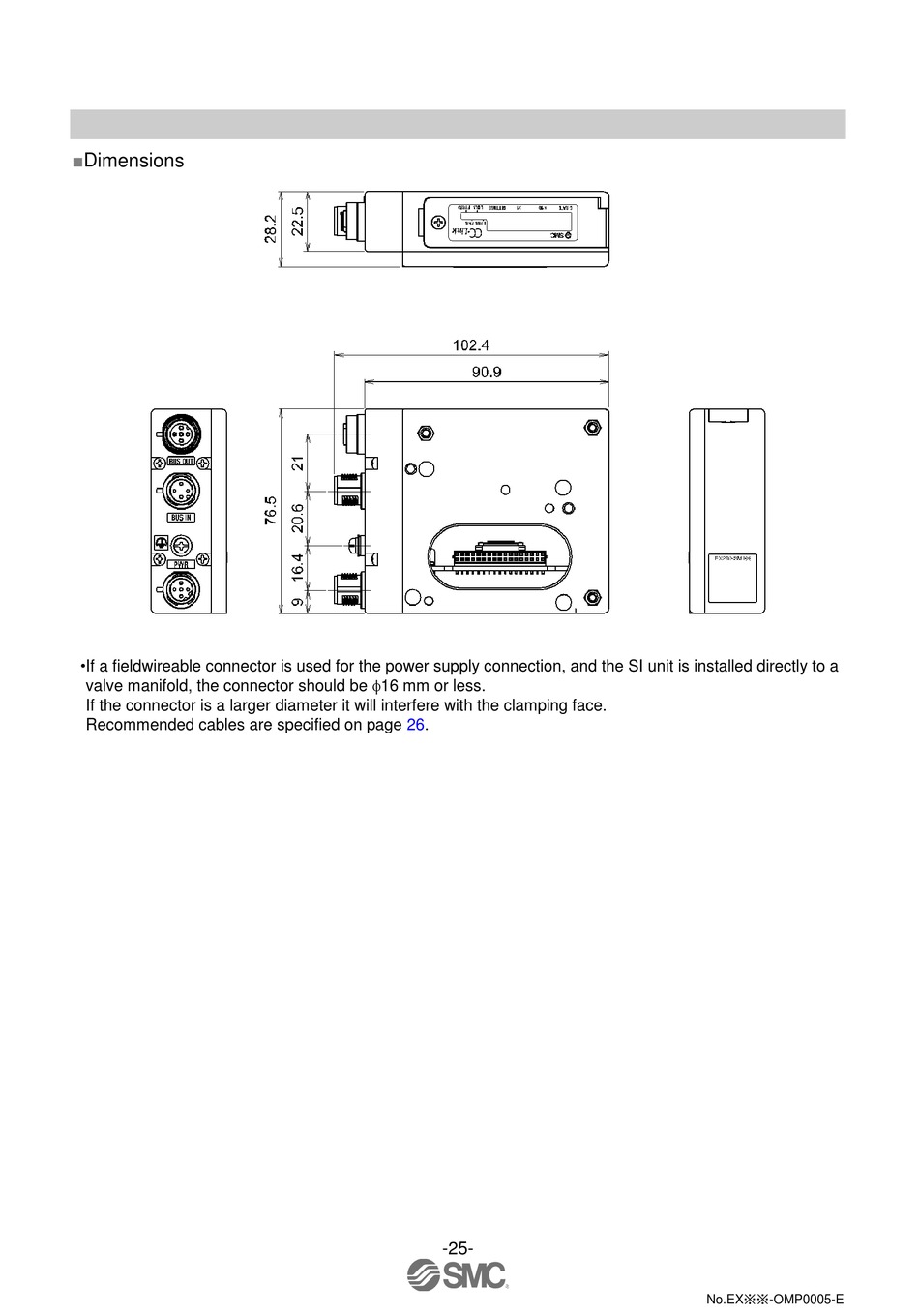

■Dimensions
•If a fieldwireable connector is used for the power supply connection, and the SI unit is installed directly to a
valve manifold, the connector should be 16 mm or less.
If the connector is a larger diameter it will interfere with the clamping face.
Recommended cables are specified on page 26.
-25-
No.EX※※-OMP0005-E
