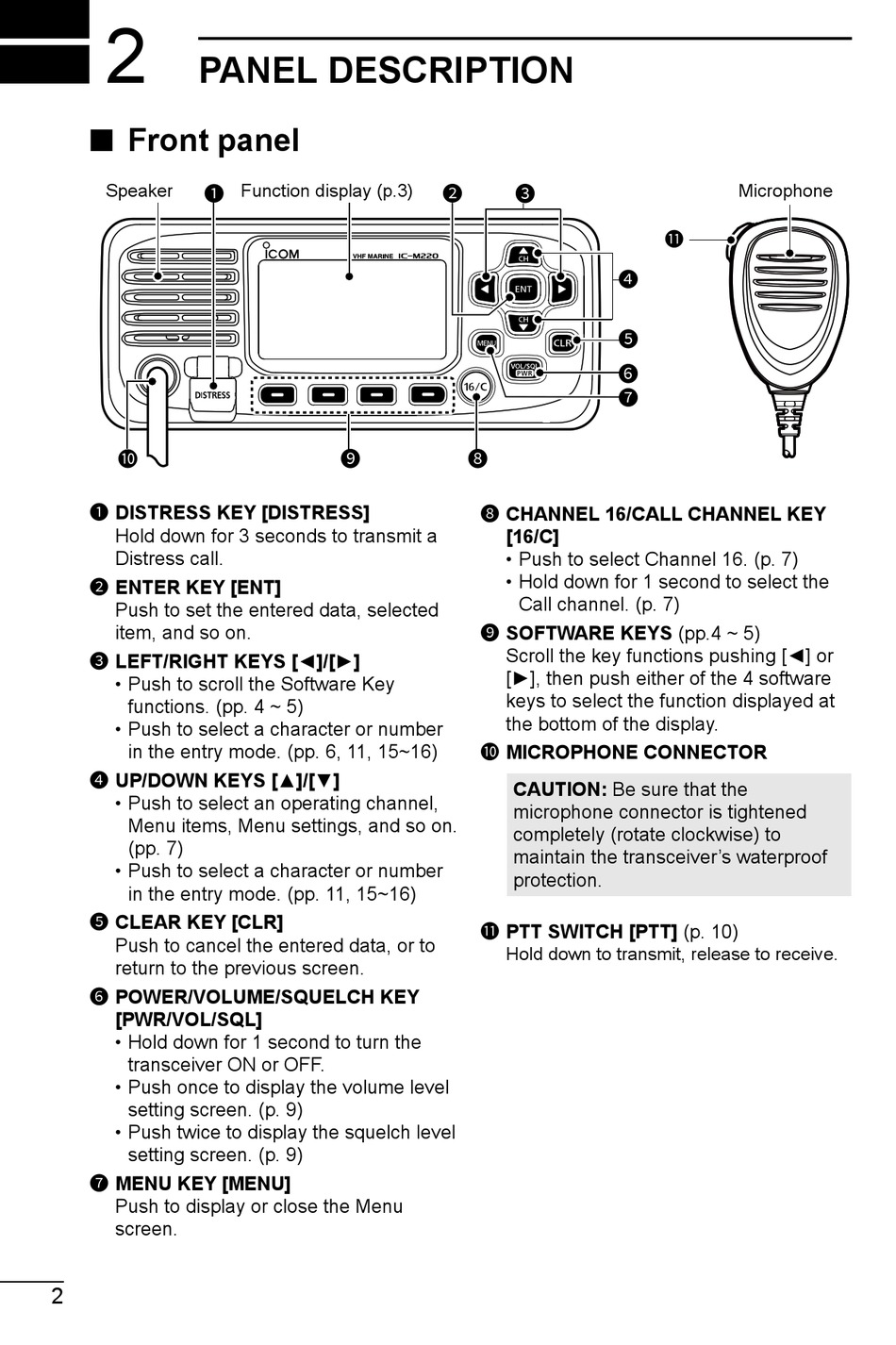

PANEL DESCRIPTION

■ Front panel

Speaker
1
10
1 DISTRESS KEY [DISTRESS]
Hold down for 3 seconds to transmit a
Distress call.
2 ENTER KEY [ENT]
Push to set the entered data, selected
item, and so on.
3 LEFT/RIGHT KEYS [◄]/[►]
• Push to scroll the Software Key
functions. (pp. 4 ~ 5)
• Push to select a character or number
in the entry mode. (pp. 6, 11, 15~16)
4 UP/DOWN KEYS [▲]/[▼]
• Push to select an operating channel,
Menu items, Menu settings, and so on.
(pp. 7)
• Push to select a character or number
in the entry mode. (pp. 11, 15~16)
5 CLEAR KEY [CLR]
Push to cancel the entered data, or to
return to the previous screen.
6 POWER/VOLUME/SQUELCH KEY
[PWR/VOL/SQL]
• Hold down for 1 second to turn the
transceiver ON or OFF.
• Push once to display the volume level
setting screen. (p. 9)
• Push twice to display the squelch level
setting screen. (p. 9)
7 MENU KEY [MENU]
Push to display or close the Menu
screen.
2
Function display (p.3)
9
2 3
4
5
6
7
8
8 CHANNEL 16/CALL CHANNEL KEY
[16/C]
• Push to select Channel 16. (p. 7)
• Hold down for 1 second to select the
Call channel. (p. 7)
9 SOFTWARE KEYS (pp.4 ~ 5)
S croll the key functions pushing [◄] or
[►], then push either of the 4 software
keys to select the function displayed at
the bottom of the display.
10 MICROPHONE CONNECTOR
CAUTION: Be sure that the
microphone connector is tightened
completely (rotate clockwise) to
maintain the transceiver's waterproof
protection.
11 PTT SWITCH [PTT] (p. 10)
Hold down to transmit, release to receive.
Microphone
11
