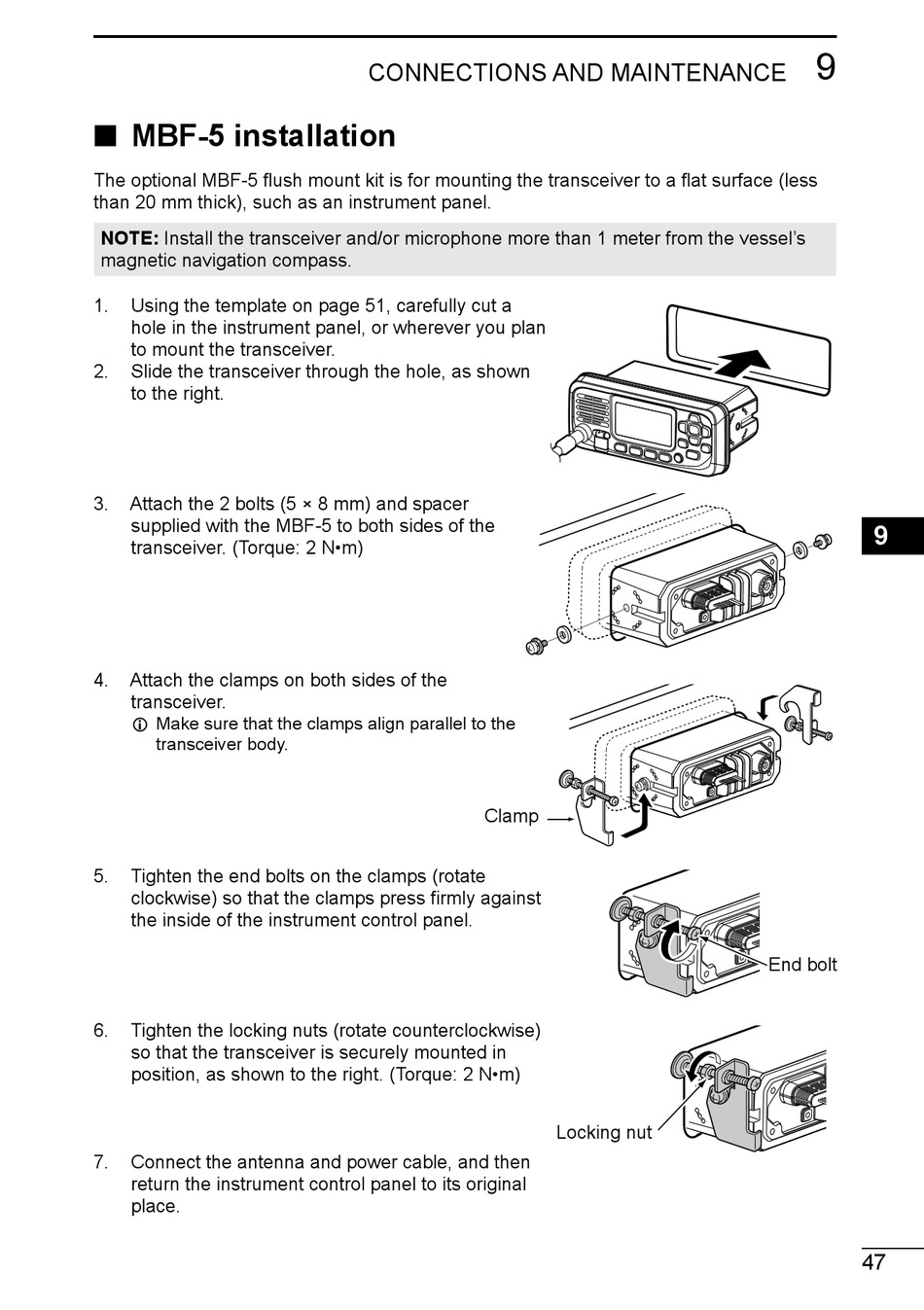

■ MBF-5 installation
The optional MBF-5 flush mount kit is for mounting the transceiver to a flat surface (less
than 20 mm thick), such as an instrument panel.
NOTE: Install the transceiver and/or microphone more than 1 meter from the vessel's
magnetic navigation compass.
1. Using the template on page 51, carefully cut a
hole in the instrument panel, or wherever you plan
to mount the transceiver.
2. Slide the transceiver through the hole, as shown
to the right.
3. Attach the 2 bolts (5 × 8 mm) and spacer
supplied with the MBF-5 to both sides of the
transceiver. (Torque: 2 N•m)
4. Attach the clamps on both sides of the
transceiver.
L Make sure that the clamps align parallel to the
transceiver body.
5. Tighten the end bolts on the clamps (rotate
clockwise) so that the clamps press firmly against
the inside of the instrument control panel.
6. Tighten the locking nuts (rotate counterclockwise)
so that the transceiver is securely mounted in
position, as shown to the right. (Torque: 2 N•m)
7. Connect the antenna and power cable, and then
return the instrument control panel to its original
place.
CONNECTIONS AND MAINTENANCE
Clamp
Locking nut
9
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
End bolt
