Icom IC-M220 Instruction Manual page 15

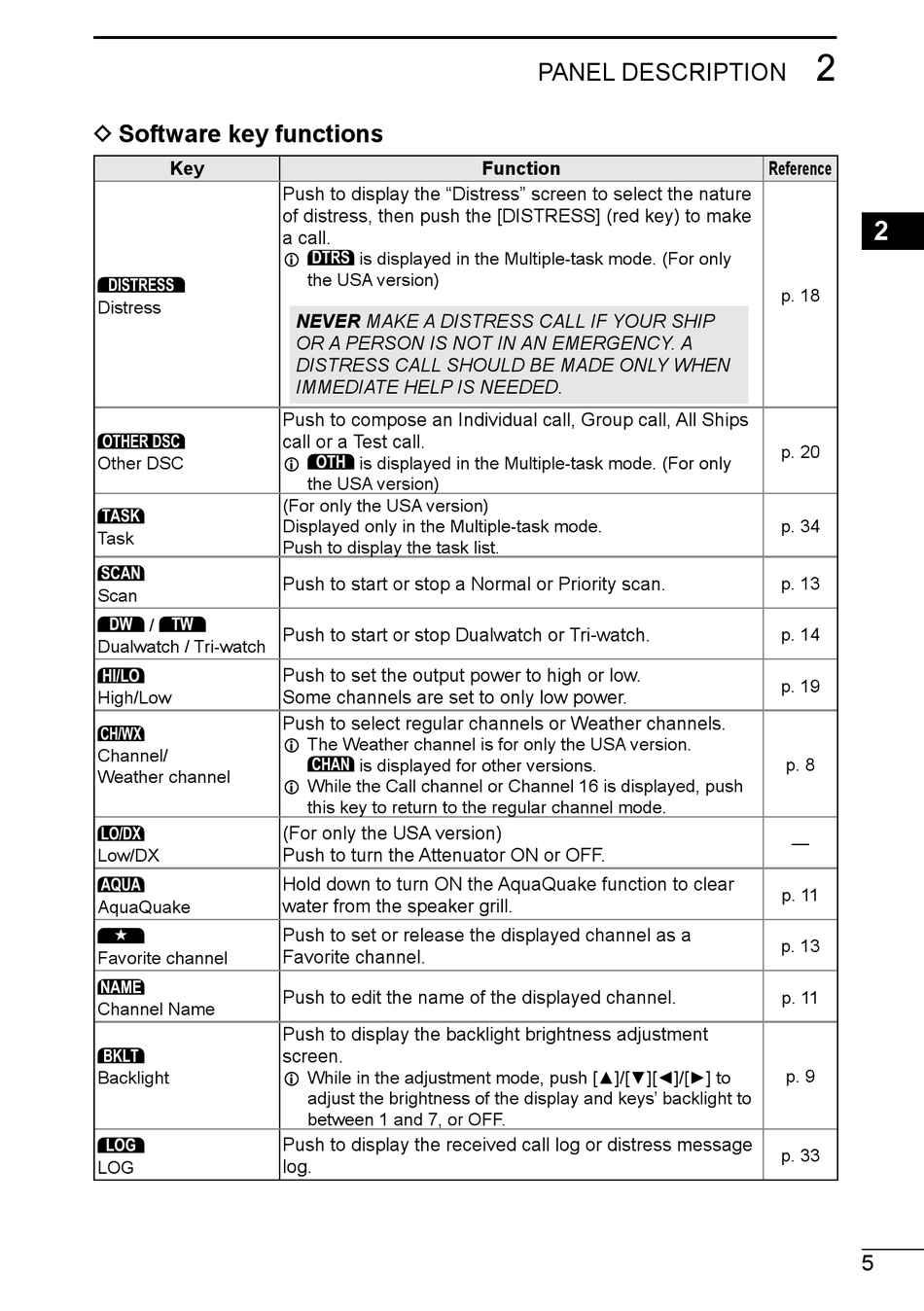

D Software key functions
Key
DISTRESS
Distress
OTHER DSC
Other DSC
TASK
Task
SCAN
Scan
DW TW
/
Dualwatch / Tri-watch
HI/LO
High/Low
CH/WX
Channel/
Weather channel
LO/DX
Low/DX
AQUA
AquaQuake
Favorite channel
NAME
Channel Name
BKLT
Backlight
LOG
LOG
Push to display the "Distress" screen to select the nature
of distress, then push the [DISTRESS] (red key) to make
a call.
DTRS
is displayed in the Multiple-task mode. (For only
L
the USA version)
NEVER MAKE A DISTRESS CALL IF YOUR SHIP
OR A PERSON IS NOT IN AN EMERGENCY. A
DISTRESS CALL SHOULD BE MADE ONLY WHEN
IMMEDIATE HELP IS NEEDED.
Push to compose an Individual call, Group call, All Ships
call or a Test call.
OTH
is displayed in the Multiple-task mode. (For only
L
the USA version)
(For only the USA version)
Displayed only in the Multiple-task mode.
Push to display the task list.
Push to start or stop a Normal or Priority scan.
Push to start or stop Dualwatch or Tri-watch.
Push to set the output power to high or low.
Some channels are set to only low power.
Push to select regular channels or Weather channels.
L The Weather channel is for only the USA version.
CHAN
is displayed for other versions.
L While the Call channel or Channel 16 is displayed, push
this key to return to the regular channel mode.
(For only the USA version)
Push to turn the Attenuator ON or OFF.
Hold down to turn ON the AquaQuake function to clear
water from the speaker grill.
Push to set or release the displayed channel as a
Favorite channel.
Push to edit the name of the displayed channel.
Push to display the backlight brightness adjustment
screen.
L While in the adjustment mode, push [▲]/[▼][◄]/[►] to
adjust the brightness of the display and keys' backlight to
between 1 and 7, or OFF.
Push to display the received call log or distress message
log.
PANEL DESCRIPTION
Function
2
Reference
1
2
3
p. 18
4
5
6
7
p. 20
8
p. 34
9
10
p. 13
11
p. 14
12
p. 19
13
14
p. 8
15
16
—
17
p. 11
18
p. 13
p. 11
p. 9
p. 33
5
