Bio-Logic VMP-300-based Installation And Configuration Manual page 88

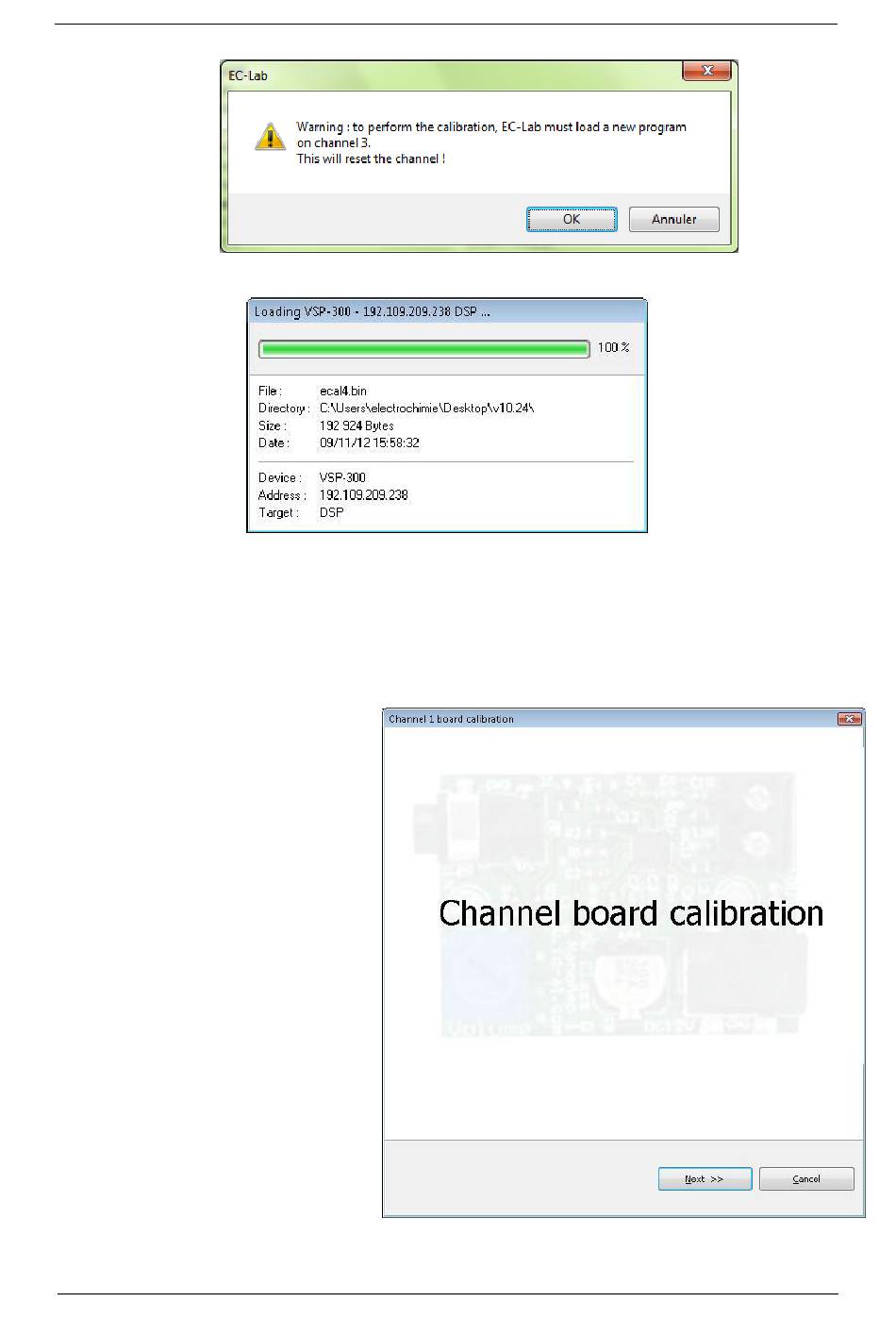

6) The calibration program ("ecal4.bin") is loaded on the channel.
7) Specific connections have to be done between the calibration board and the channel
and/or amplifier board(s) depending on the selected calibration. A wizard helps the user
to use the appropriate connection.
NOTE: Hereafter, the "Channel & Amplifier" is selected. If user selects "Channel" (steps
#8 to #16), only the first part will be done and if user selects "Amplifier" (steps #17 to
#22), only the second part will be done.
8) Click on the "Next"
button.
80
Manual for VMP300-based instruments
