2.1.3.2 HCV-3048

WARNING

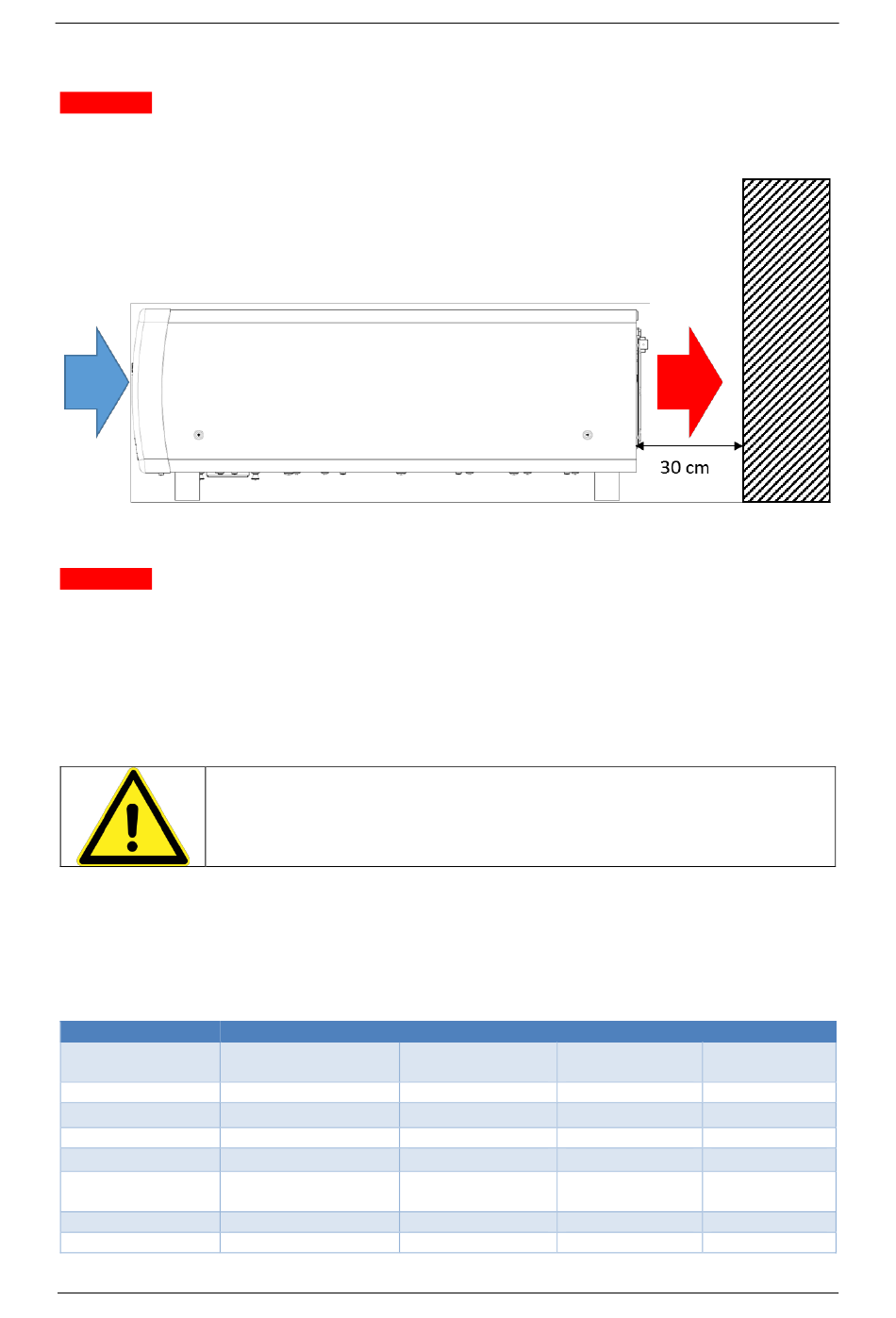

In HCV-3048, the air flows from front to the rear of the instrument (Fig. 13-14). It should be
placed at a minimum of 30 cm from a wall. Otherwise, the lifetime and the specifications of
the instrument are not guaranteed.
WARNING
As a general rule, the instruments should not be seated on an inflammable surface.
Please prefer inert surface such as glass or stone. This does not apply for instruments
connected in parallel, where they would be vertically stacked.

2.2 Unpacking and inspection

. VSP-300, VMP-300 and HCV-3048 are heavy instruments (22, 30
and 26 kg, respectively) and necessitate two persons to unpack and
carry them, to avoid crashing and health hazard.

2.3 Electrical equipment requirements

Please find below the electrical specifications of the instruments:
Table 5: Electrical input specifications of the instruments described in this manual.
Instrument
SP-200
SP-240
SP-300
VSP-300
VSP-300
(Vertical)
VMP-300
HCV-3048
Fig. 11: Air flow for HCV-3048
Voltage Range
/Vac
[90;264]
[90;264]
[90;264]
[90;264]
[90;264]
[90;264]
[85;264]
Manual for VMP300-based instruments
Input
Frequency Power max
range/Hz
[50;60]
[50;60]
[50;60]
[50;60]
[50;60]
[50; 60]
[47;40]
Fuses
/W
350 2 x 4 AF
350 2 x 4 AF
350 2 x 4 AF
650 2 x 5 AF
650 2 x 5 AF
1500 2 x 10 AF
2000 2 x 16 AF
