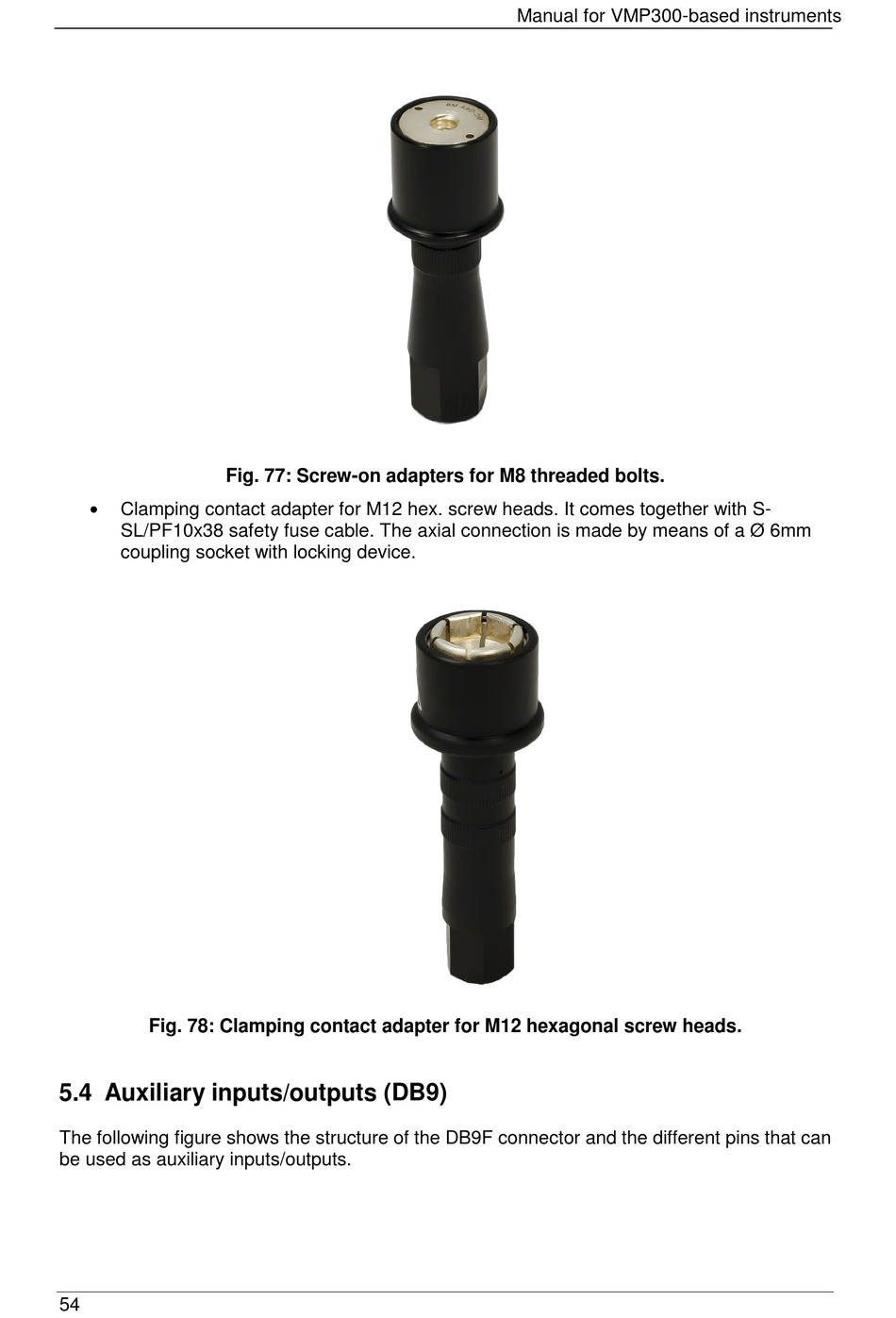

Fig. 77: Screw-on adapters for M8 threaded bolts.

Clamping contact adapter for M12 hex. screw heads. It comes together with S-
SL/PF10x38 safety fuse cable. The axial connection is made by means of a Ø 6mm
coupling socket with locking device.
Fig. 78: Clamping contact adapter for M12 hexagonal screw heads.

5.4 Auxiliary inputs/outputs (DB9)

The following figure shows the structure of the DB9F connector and the different pins that can
be used as auxiliary inputs/outputs.
