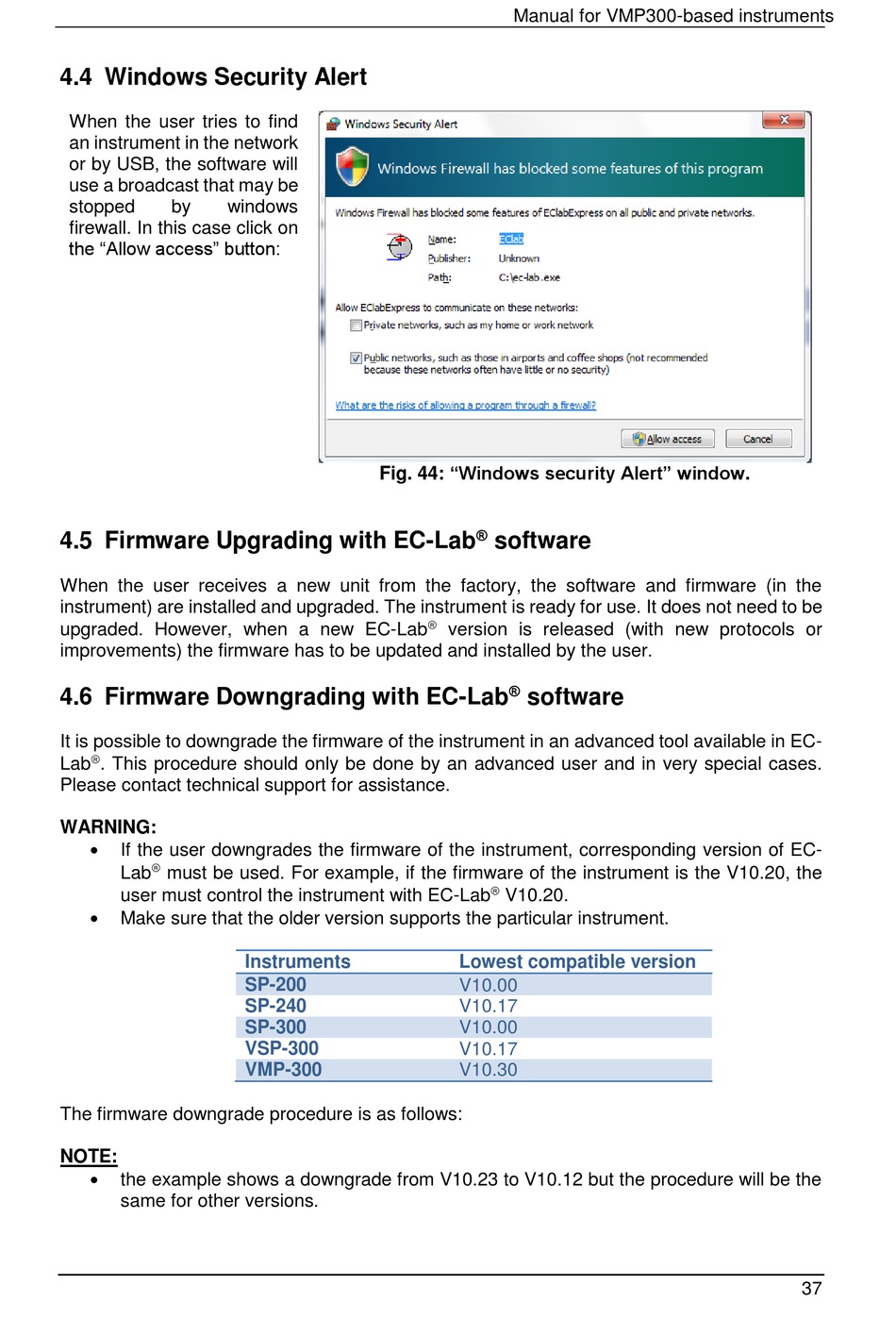

Windows Security Alert; Firmware Upgrading With Ec-Lab  Software; Firmware Downgrading With Ec-Lab  Software - Bio-Logic VMP-300-based Installation And Configuration Manual

4.4 Windows Security Alert

When the user tries to find
an instrument in the network
or by USB, the software will
use a broadcast that may be
stopped by
firewall. In this case click on
the "Allow access" button:
4.5 Firmware Upgrading with EC-Lab
When the user receives a new unit from the factory, the software and firmware (in the
instrument) are installed and upgraded. The instrument is ready for use. It does not need to be
upgraded. However, when a new EC-Lab
improvements) the firmware has to be updated and installed by the user.
4.6 Firmware Downgrading with EC-Lab
It is possible to downgrade the firmware of the instrument in an advanced tool available in EC-

Lab . This procedure should only be done by an advanced user and in very special cases.
Please contact technical support for assistance.
WARNING:

If the user downgrades the firmware of the instrument, corresponding version of EC-

Lab must be used. For example, if the firmware of the instrument is the V10.20, the
user must control the instrument with EC-Lab

Make sure that the older version supports the particular instrument.
The firmware downgrade procedure is as follows:
NOTE:

the example shows a downgrade from V10.23 to V10.12 but the procedure will be the
same for other versions.
windows
Fig. 44: "Windows security Alert" window.
Instruments
SP-200
SP-240
SP-300
VSP-300
VMP-300
Manual for VMP300-based instruments

software

version is released (with new protocols or

software

V10.20.
Lowest compatible version
V10.00
V10.17
V10.00
V10.17
V10.30
37
