Click on the "Minimize" button (Fig. 113).
-
- Check the fitted values. They have to be close to the theoretical values. The theoretical
values for DC2 are summarized in Tab. 8.
-
Table 8: The theoretical values of the DC2.
Element
R2 or R3

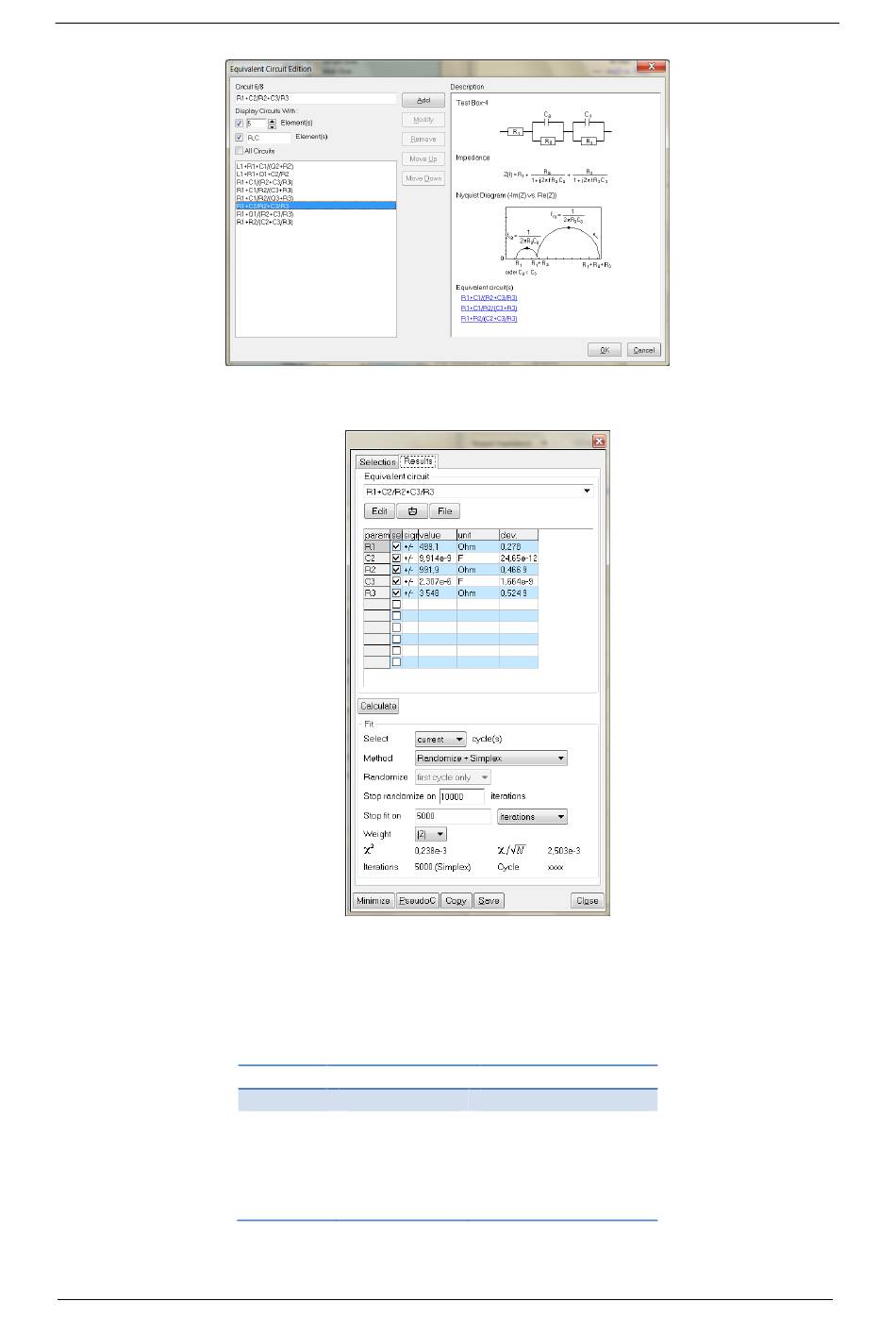

Fig. 112: Equivalent circuit selection.
Fig. 113: Results of Z Fit.
Value
499 Ω ±1%
R1
1 k Ω ±1%
Manual for VMP300-based instruments
NOTE:
The values R2/C2
and R3/C3 may be
inverted,
respectively.
