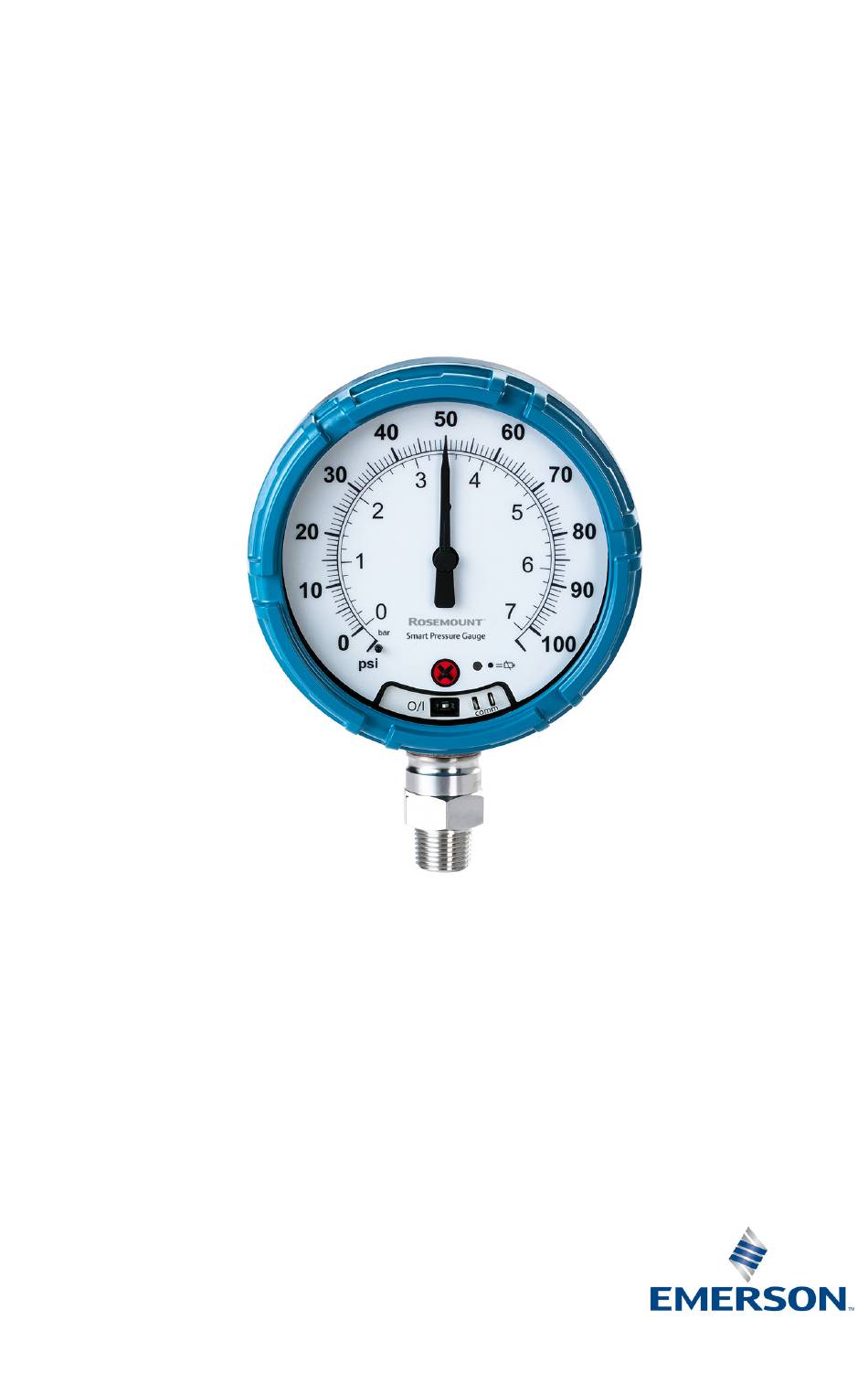

- Page 1 Quick Start Guide 00825-0100-4145, Rev BA February 2018 ™ Rosemount Smart Pressure Gauge...
-
Page 2: Table Of Contents
Refer to the Rosemount Smart Pressure Gauge Reference Manual for more instruction. The manual and this guide are also available electronically on Emerson.com\Rosemount. Shipping considerations The device is shipped with the battery installed. Each device contains one “D” size primary lithium-thionyl chloride battery. Primary lithium batteries are regulated in transportation by the U.S. -
Page 3: What's In The Box
Quick Start Guide February 2018 What’s in the box Smart Pressure Gauge Quick Start Guide The following options are also available and will ship with the Rosemount Smart Pressure Gauge if ordered. Rosemount 306 Integral Manifold (model code S5) B4 bracket (model code B4) Rosemount 1199 Seal (model code S1) Product Certification (model codes below) Q4: Calibration Cert... -
Page 4: Optional: Power/Device Check
February 2018 Quick Start Guide Optional: Power/device check The device is designed to be installation-ready. To check device battery prior to installation, perform the following: 1. Perform “Turn on device” on page 2. Slide the ON/OFF switch to the OFF position until ready for use. Optional: Normal range indication option Note The stickers are intended to be installed on the dial only and should not be applied on... -
Page 5: Installation Procedure
Quick Start Guide February 2018 Installation Procedure Step 1: Seal and protect threads Step 2: Mount device Note Use wrench on flats, not on housing. Mounting orientation The low side pressure port (atmospheric reference) is located in the neck of the device behind the housing. - Page 6 February 2018 Quick Start Guide Step 3: Turn on device Check to ensure the device and battery are working properly. 1. Twist the cover counterclockwise to remove it. 2. Slide the OFF/ON switch to the ON position to initiate the power sequence. Note During the power sequence, the dial tests full range of motion and LED flashes amber.
-
Page 7: Troubleshooting
Quick Start Guide February 2018 Step 5: Eliminate mounting effects Devices are factory-calibrated. Once installed, it is recommended to perform this step to eliminate potential error caused by mounting position or static pressure. Instructions for using a Field Communicator are listed below. Note See the Rosemount Smart Pressure Gauge Reference Manual... -
Page 8: Product Certifications
A copy of the EU Declaration of Conformity can be found at the end of the Quick Start Guide. The most recent revision of the EU Declaration of Conformity can be found at www.Emerson.com/Rosemount. Ordinary Location Certification from CSA The product has been examined and tested to determine that the design... - Page 9 Quick Start Guide February 2018 Markings: Intrinsically Safe for Class I, Division 1, Groups A, B, C, D T4; Ex ia IIC T4 Ga T4 (–50 °C Ta +70 °C) when installed per Rosemount drawing 00G45-1020; Type 4X; IP66/67; Special Conditions for Safe Use (X): 1.
- Page 10 February 2018 Quick Start Guide Figure 2. Declaration of Conformity EU Declaration of Conformity No: RMD 1108 Rev. D Rosemount Inc. 8200 Market Boulevard Chanhassen, MN 55317-9685 declare under our sole responsibility that the product, Models WPG & SPG: Wireless Pressure Gauge & Smart Pressure Gauge manufactured by, Rosemount Inc.
- Page 11 Quick Start Guide February 2018 EU Declaration of Conformity No: RMD 1108 Rev. D EMC Directive (2014/30/EU) Models WPG & SPG Harmonized Standards: EN 61326-1: 2013 Radio Equipment Directive (RED) (2014/53/EU) Model WPG (Wireless Pressure Gauge only) Harmonized Standards: EN 300 328 V2.1.1 EN 301 489-1 V2.2.0 EN 301 489-17: V3.2.0 EN 61010-1: 2010...
- Page 12 February 2018 Quick Start Guide EU Declaration of Conformity No: RMD 1108 Rev. D ATEX Notified Bodies Baseefa [Notified Body Number: 1180] Rockhead Business Park Staden Lane Buxton, Derbyshire SK17 9RZ United Kingdom ATEX Notified Body for Quality Assurance Baseefa [Notified Body Number: 1180] Rockhead Business Park Staden Lane Buxton, Derbyshire...
- Page 13 Quick Start Guide February 2018 Rosemount S PG China RoHS List of Rosemount SPG Parts with China RoHS Concentration above MCVs / Hazardous Substances Hexavalent Polybrominated Polybrominated Part Name Lead Mercury Cadmium Chromium biphenyls diphenyl ethers (Pb) (Hg) (Cd) (Cr +6) (PBB) (PBDE) Electronics...
- Page 14 The Emerson logo is a trademark and service mark of Emerson Jebel Ali Free Zone - South 2 Electric Co. Rosemount is a mark of one of the Emerson family of Dubai, United Arab Emirates companies. All other marks are the property of their respective +971 4 8118100 owners.
