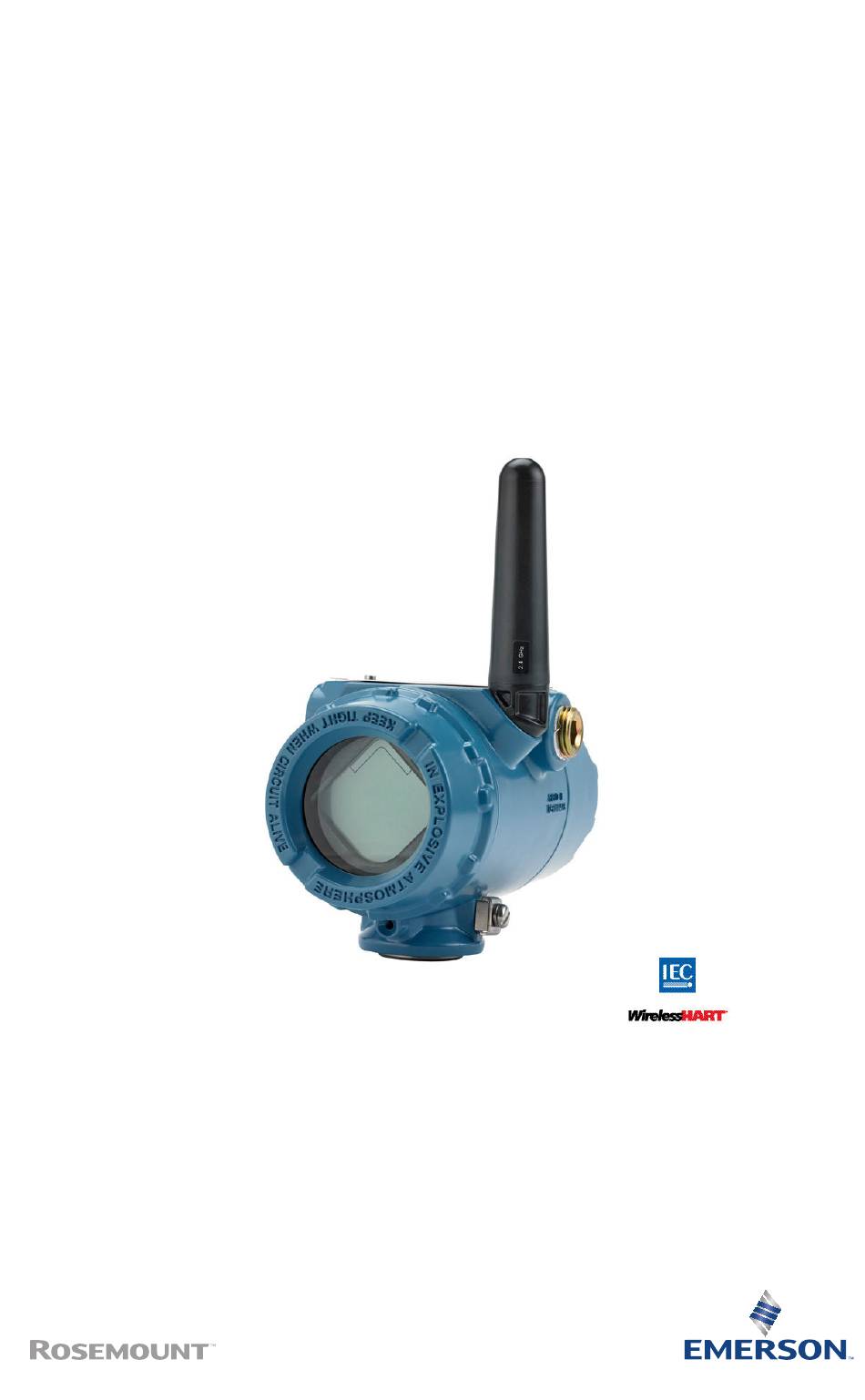

- Page 1 Quick Start Guide 00825-0100-6129, Rev AC November 2024 Rosemount Wireless Dam Monitor ™ (WDM) Special...
- Page 2 Device Install Kit/DD Revision Device Revision 1, DD Revision 1 or higher NOTICE This guide provides basic information for the Rosemount WDM special. It does not provide instructions for detailed configuration, diagnostics, maintenance, service, troubleshooting, or installations WARNING Failure to follow these installation guidelines could result in death or serious injury.
-
Page 3: Table Of Contents
Refer to the Product certifications section of this Quick Start Guide documentation when using the RFID tag (option code Y3) for required installation conditions. Contents Functionality..........................5 Physical installation........................8 Verify operation..........................10 Troubleshooting.........................13 Power module replacement..................... 14 Product Certifications........................16 www.Emerson.com... - Page 4 Quick Start Guide November 2024 www.Emerson.com...
-
Page 5: Functionality
1.1 Wireless considerations Power up sequence The Rosemount WDM Special and all other wireless devices should be installed only after the Wireless Gateway (“Gateway”) has been installed and is functioning properly. Wireless devices should also be powered up in order of proximity from the Gateway, beginning with the closest. - Page 6 Field Communicator connections The black power module needs to be installed in the device for the Field Communicator to interface with the Rosemount WDM Special. For HART Wireless Transmitter communication via a Field Communicator, a Rosemount WDM Device Dashboard (DD) is...
- Page 7 November 2024 Quick Start Guide required. See Configuration for more information regarding the WDM Refer to Figure 1-3 for connecting the Field Communicator to the Rosemount WDM Special. Figure 1-3: Connection #K1197 P/N 00753-9200-0020 COMM www.Emerson.com...
-
Page 8: Physical Installation
The cable shield should be trimmed close and insulated to keep it from touching the other sensor wires or terminals. Only power this device with the 701PBKKF power module and only connect Impress Strain Gauge on the terminals. www.Emerson.com... - Page 9 November 2024 Quick Start Guide Figure 2-1: Terminal Wire Colors www.Emerson.com...
-
Page 10: Verify Operation
3.2 Configuration For HART Wireless transmitter communication via a Field Communicator or AMS Device Manager, a Rosemount WDM Device Dashboard (DD) is required. Contact the Rosemount Wireless Specialist Team (RMT-NA.SpecialistWireless@Emerson.com) to obtain the DD. To provide accurate sensor readings, values from each sensor data sheet need to be configured and stored in the Rosemount WDM Transmitter. -
Page 11: Wireless Gateway
Advertisement Count, Join Attempts 3.3 Wireless Gateway If the Rosemount WDM Special was configured with the Network ID and Join Key and sufficient time for network polling has passed, the transmitter will be connected to the network. To verify device operation and connectivity using the Gateway's web based user interface, navigate to the Devices page. - Page 12 Quick Start Guide November 2024 wiring (see Power module replacement) and the sensor configuration (see Table 4-2). Figure 3-1: Gateway Network Settings www.Emerson.com...
-
Page 13: Troubleshooting
2, 2, 1 Network ID, Join to Network, Broadcast Configuration Info Table 4-2 lists the Fast Key sequences for common transmitter functions. Table 4-2: Rosemount WDM Special Fast Key Sequence Function Fast Key Menu items sequence Device Information 2, 2, 7... -
Page 14: Power Module Replacement
Consult the materials safety data sheet for battery specific information. Reference conditions are 70 °F (21° C), transmit rate of once per minute, and routing data for three additional network devices. www.Emerson.com... -
Page 15: Shipping Considerations
November 2024 Quick Start Guide 5.3 Shipping considerations The unit was shipped without the black power module installed. Remove the module prior to shipping the unit. www.Emerson.com... -
Page 16: Product Certifications
RF spectrum. Nearly every country requires this type of product certification. Emerson is working with governmental agencies around the world to supply fully compliant products and remove the risk of violating country directives or laws governing wireless device usage. - Page 17 November 2024 Quick Start Guide Figure 6-1: Rosemount 648 Wireless Declaration of Conformity www.Emerson.com...
- Page 18 Quick Start Guide November 2024 www.Emerson.com...
- Page 19 WARNING Additional warnings The plastic enclosure may present a potential electrostatic ignition hazard. RFID tag has limitations in ambient temperature and zone installation areas (Zones 1 & 21) as compared to the gauge. www.Emerson.com...
- Page 20 2024 Emerson. All rights reserved. Emerson Terms and Conditions of Sale are available upon request. The Emerson logo is a trademark and service mark of Emerson Electric Co. Rosemount is a mark of one of the Emerson family of companies. All other marks are the property of their respective owners.
