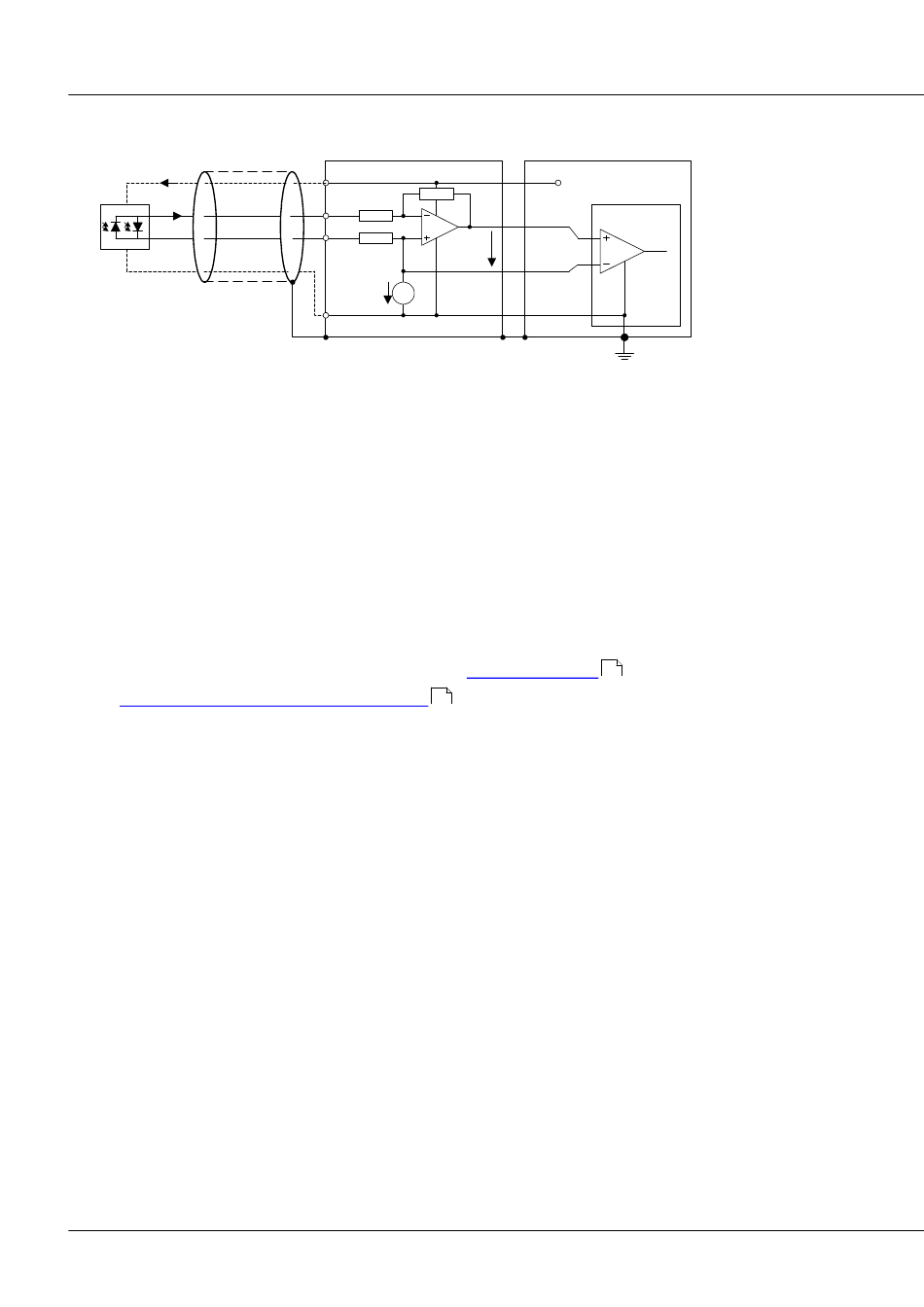

5.1.1.3.7.3 Connection: Sensors with current signals
sensor cable
I_supply
+I
-I
Vout = Va-V0 = -R*I
INDEX: R = 100k
IN_AB[1..4]: R = 200k
I = 11µA_pkpk = +/-5.5µA (typ.)
Vout = 1.1V sin(wt), 2.2Vpkpk
(min. 0.7V, max. 1.6V)
I_supply: max. 170m A / D SU B !
For a rotational encoder working with current signals, the current/ voltage terminal ACC/DSUB-ENC-4-IU
can be used.
It is possible to power the sensor from the ENC-4 module. The pertinent specifications are:
max. supply current: 320 mA
typ. encoder with 11
Heidenhain ROD 456, current c: max. 85 mA per (2-signal) encoder
5.1.2 Analog outputs
The analog outputs DAC 01 to 04 provide 4 analog output channels to be used as dynamic control and
actuator signals. The outputs can be defined as the results of calculations performed by imc Online
FAMOS on data from combinations of measurement channels.
The pin configuration of the corresponding DSUB-15:
The technical specification of the module DAC-4
Highlights
·
±10 V level at max. ±10 mA driver capability and 250 Ω load
·
ensured startup level 0 V without undefined transient states
·
short-circuit protected against ground.
© 2018 imc Test & Measurement GmbH
ACC/DSUB-ENC4-IU
+5V
R
+INA
500R
-INA
500R
2.5V V0
GND
CHASSIS
signals:
µA
ss
155
Hardware configuration of all devices
ENC-4
+5V
Va
+INA
Vout +/-10V
-INA
GND
CHASSIS
ACC/DSUBM-DAC4 .
170
.
