Starting Up The Device Emulator - Casio IT-600 Series Quick Start Manual

7.2 Starting Up the Device Emulator

After installing all required software described in Chapter 7.1, follow the steps below to start up the
Device Emulator on your PC.
1. Navigate to Start menu → All Programs → CASIO Device Emulator and click IT-600.
2. Make sure that the IT-600 Device Emulator has started up on the screen. See Figure 7.2. If
Figure 7.2 and Figure 7.3 appear on your PC, it is ready to use the emulator.
Note.
If do not appear "IT-600" in "CASIO Device Emulator", please execute "Add Device".
If you use OS after Windows Vista, please execute "DevEmuLoader.exe" as administrator by
referring "Case of using after Windows Vista OS" section.
C:\Program Files\Common Files\CASIO\Emulator\DevEmuLoader.exe

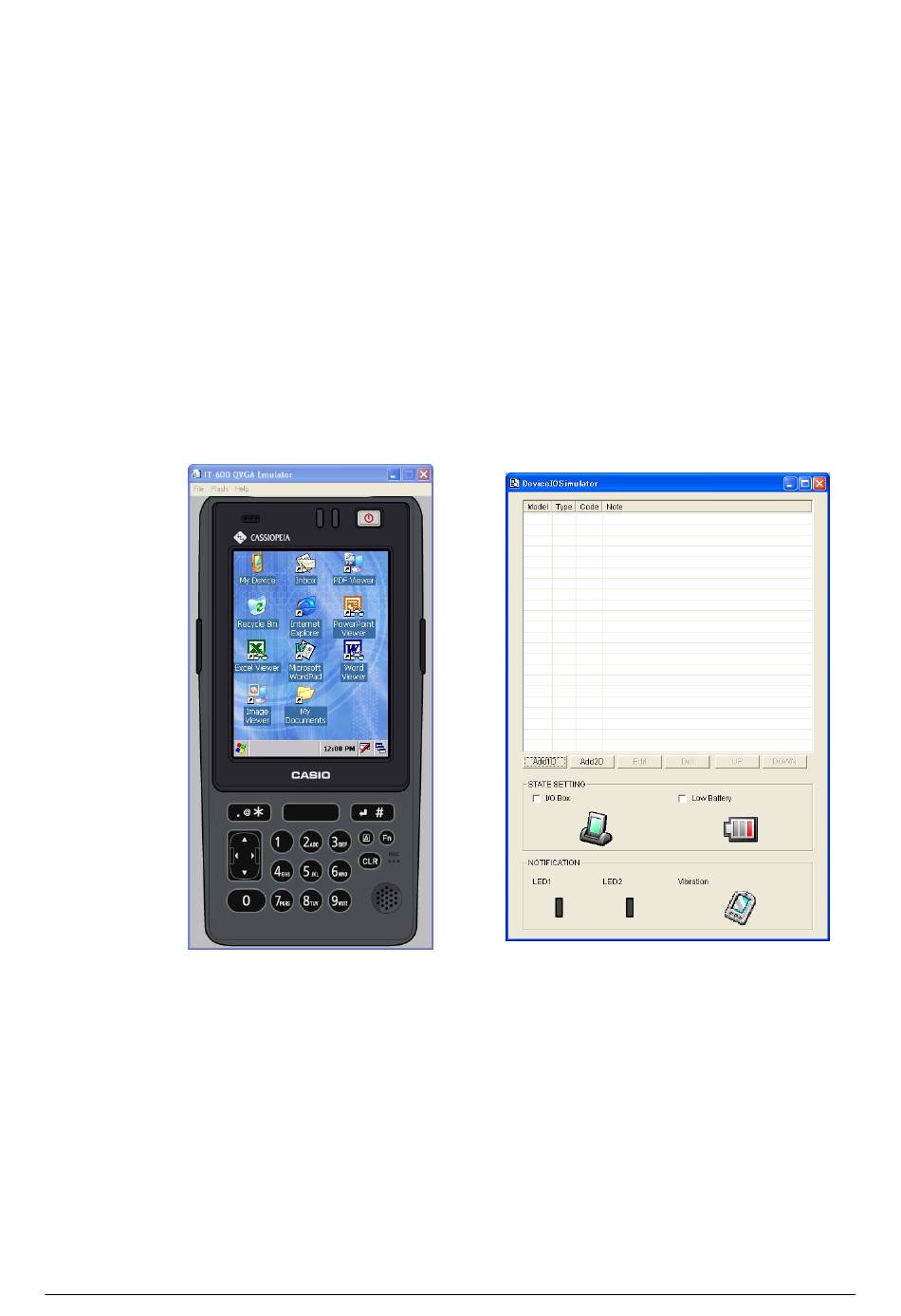

Figure 7.2 IT-600 Device Emulator
Terminology of Emulator and Simulator;
The Emulator described in this reference manual is a software that can provide performances
immense in similarity to those performed on the actual device by imitating individual hardware
components or protocol which can control the components by side.
On the other hand, the Simulator is also software but logically integrates application programming
interfaces ("API") and minimum functions to debug the application program. From the view of
application side, the Emulator performs in the pseudo CPU and hardware environment –
impossible for the application to recognize whether it is in actual environment or pseudo
environment. However, performances carried out by the Simulator are not likely to those
performed by actual components.
Figure 7.3 I/O Simulator
