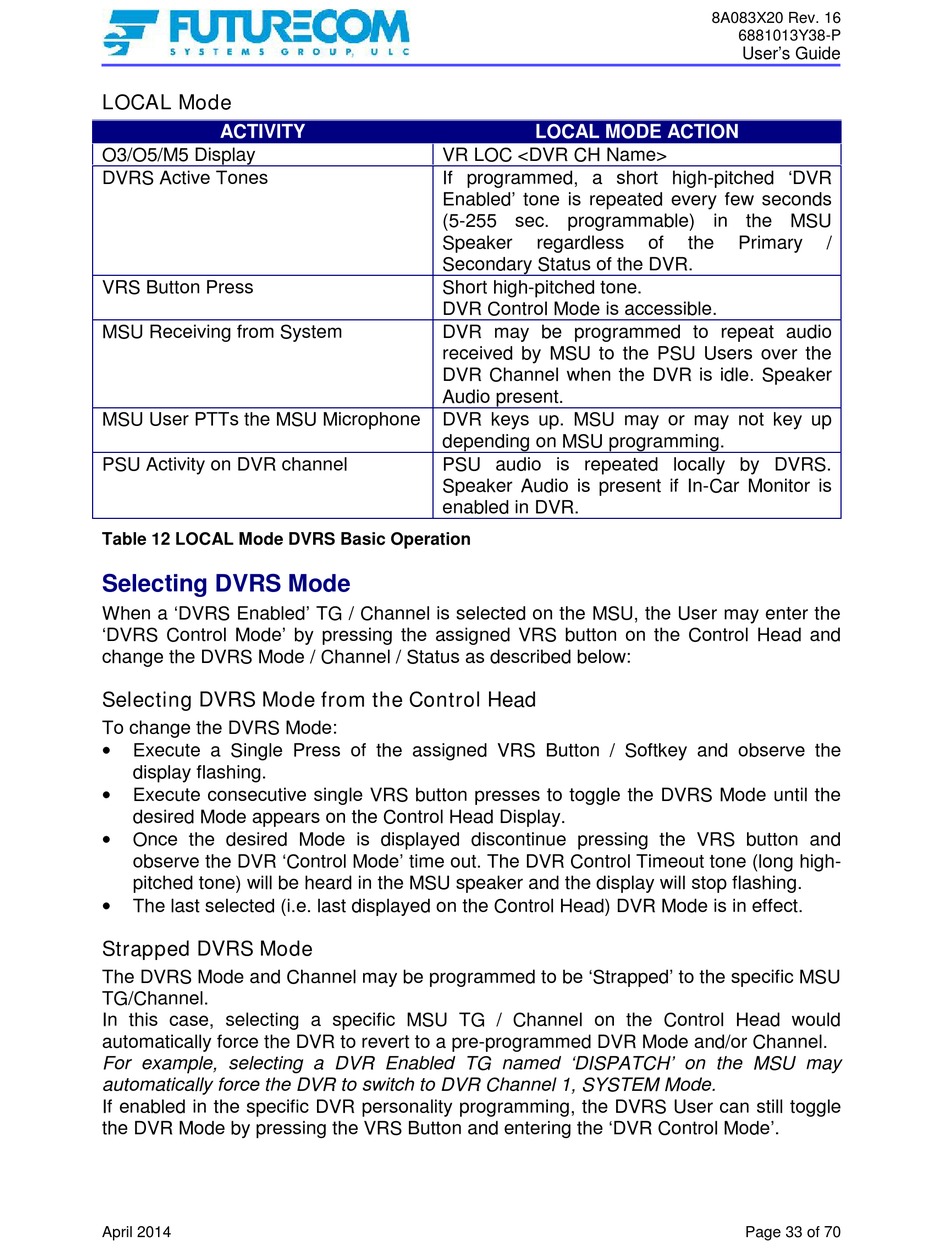

LOCAL Mode

ACTIVITY
O3/O5/M5 Display
DVRS Active Tones
VRS Button Press
MSU Receiving from System
MSU User PTTs the MSU Microphone
PSU Activity on DVR channel

Table 12 LOCAL Mode DVRS Basic Operation

Selecting DVRS Mode

When a 'DVRS Enabled' TG / Channel is selected on the MSU, the User may enter the
'DVRS Control Mode' by pressing the assigned VRS button on the Control Head and
change the DVRS Mode / Channel / Status as described below:

Selecting DVRS Mode from the Control Head

To change the DVRS Mode:

Execute a Single Press of the assigned VRS Button / Softkey and observe the
display flashing.

Execute consecutive single VRS button presses to toggle the DVRS Mode until the
desired Mode appears on the Control Head Display.

Once the desired Mode is displayed discontinue pressing the VRS button and
observe the DVR 'Control Mode' time out. The DVR Control Timeout tone (long high-
pitched tone) will be heard in the MSU speaker and the display will stop flashing.

The last selected (i.e. last displayed on the Control Head) DVR Mode is in effect.

Strapped DVRS Mode

The DVRS Mode and Channel may be programmed to be 'Strapped' to the specific MSU
TG/Channel.
In this case, selecting a specific MSU TG / Channel on the Control Head would
automatically force the DVR to revert to a pre-programmed DVR Mode and/or Channel.
For example, selecting a DVR Enabled TG named 'DISPATCH' on the MSU may
automatically force the DVR to switch to DVR Channel 1, SYSTEM Mode.
If enabled in the specific DVR personality programming, the DVRS User can still toggle
the DVR Mode by pressing the VRS Button and entering the 'DVR Control Mode'.
April 2014
LOCAL MODE ACTION
VR LOC <DVR CH Name>
If programmed, a short high-pitched 'DVR
Enabled' tone is repeated every few seconds
(5-255 sec. programmable) in the MSU
Speaker regardless
Secondary Status of the DVR.
Short high-pitched tone.
DVR Control Mode is accessible.
DVR may be programmed to repeat audio
received by MSU to the PSU Users over the
DVR Channel when the DVR is idle. Speaker
Audio present.
DVR keys up. MSU may or may not key up
depending on MSU programming.
PSU audio is repeated locally by DVRS.
Speaker Audio is present if In-Car Monitor is
enabled in DVR.
8A083X20 Rev. 16
6881013Y38-P
User's Guide
of the Primary
Page 33 of 70
/
