8A083X20 Rev. 16
6881013Y38-P
User's Guide

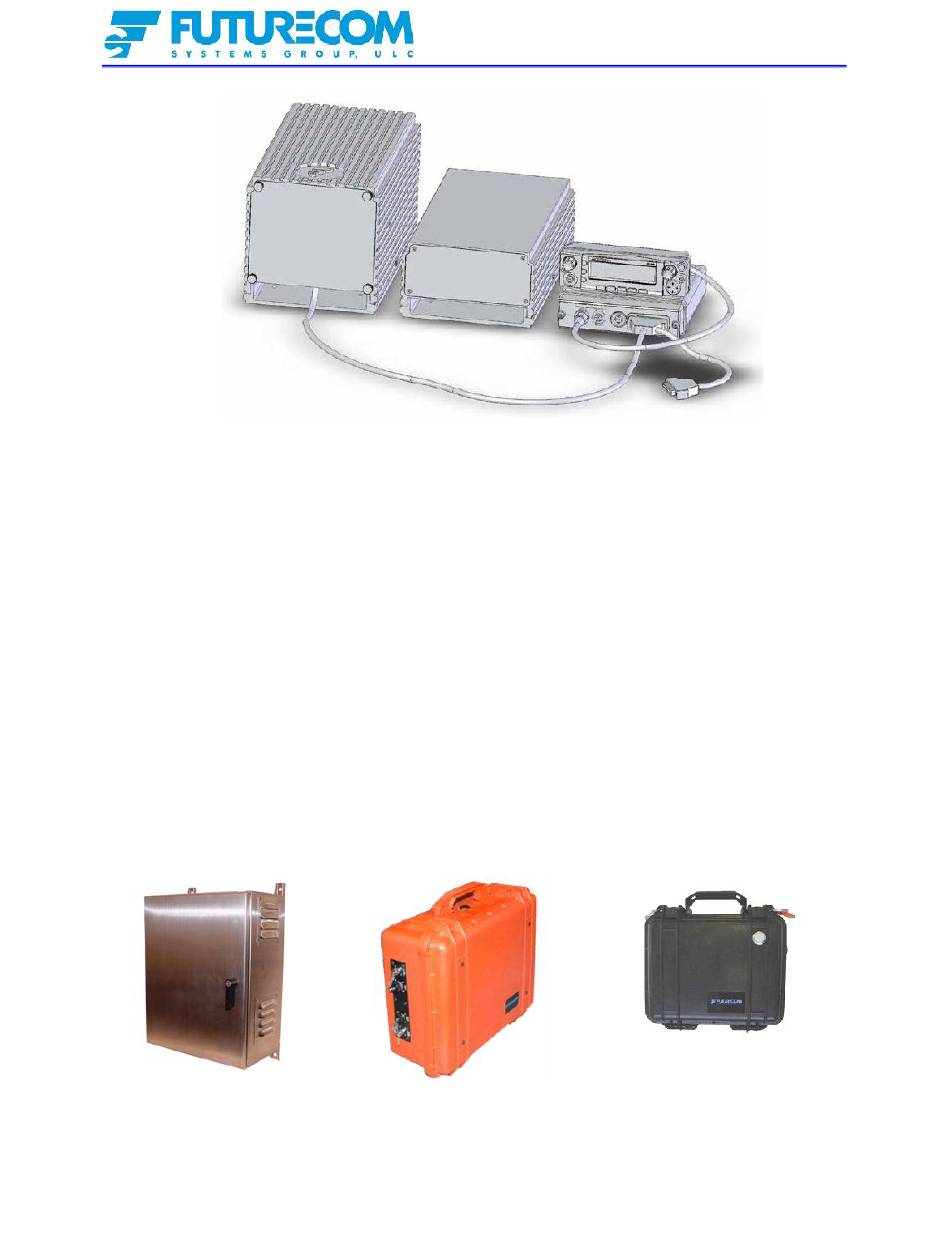

Figure 3 Typical In-Band DVRS Layout - 700 or 800 MHz

Transportable DVRS
The Transportable DVRS is packaged in a durable suitcase and includes all necessary
electronics and filtering. The Transportable unit can be easily deployed in the field and is
powered up either by plugging into an AC outlet or by using an optional battery backup
kit.
The battery backup kit is also packaged in a suitcase for ease of transportation.
The Transportable Model requires two antennas - one connected to the MSU and one to
the DVR.
The MSU antenna needs to be strategically deployed in order to ensure reliable link
between the MSU and the Radio System Infrastructure.
The DVR antenna needs to be positioned to provide optimum radio coverage for the
portable radio users. For further details, please refer to publication 8F083X02.
Fixed DVRS
The Fixed DVRS model is housed in a wall-mount indoor enclosure and includes all
necessary electronics and filtering. The Fixed DVRS is intended for permanent i.e.
'Fixed' type installations. For further details, please refer to publication 8F083X01.
Fixed DVRS Transportable DVRS (TDVRS) Battery Pack
for TDVRS
April 2014 Page 17 of 70
