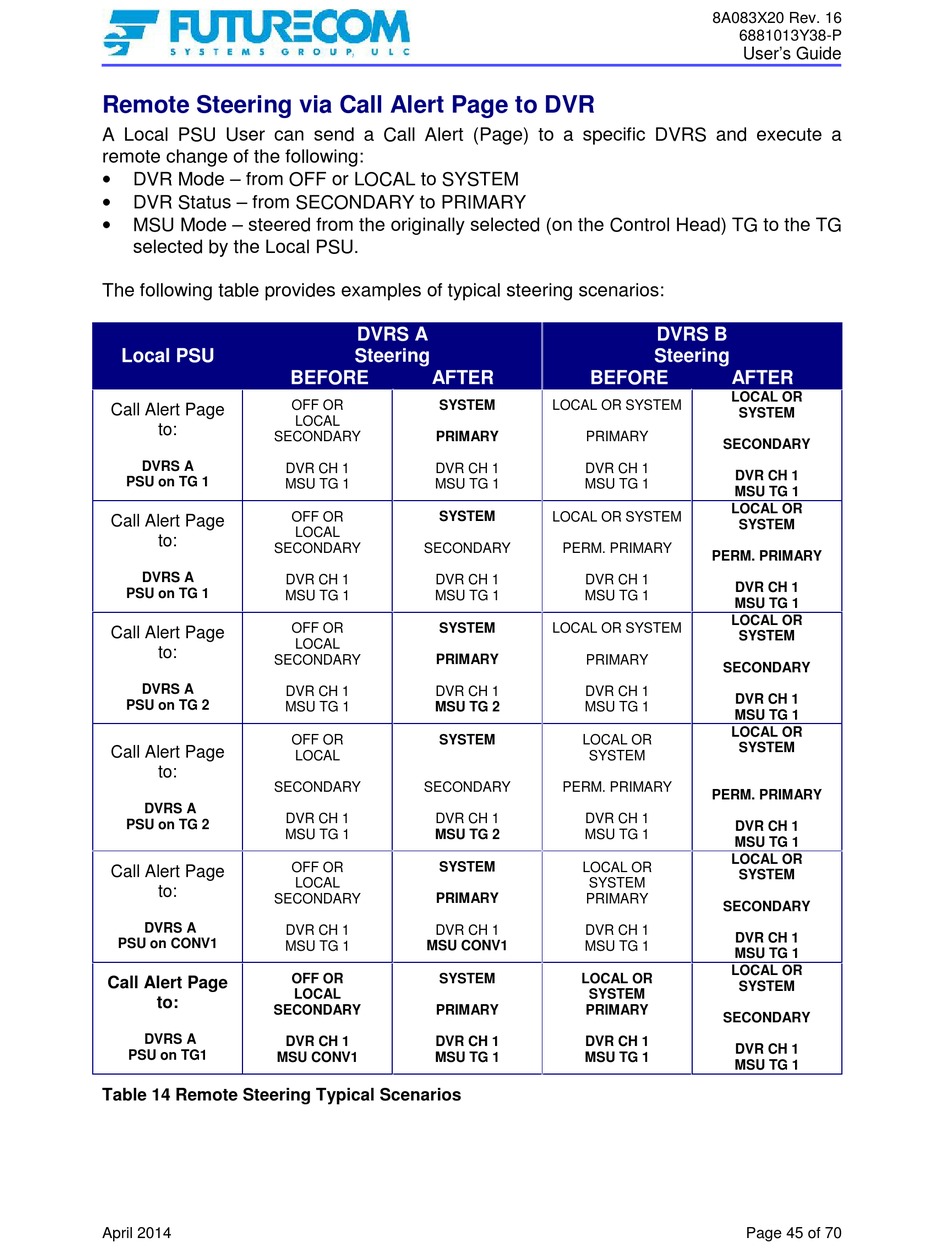

Remote Steering via Call Alert Page to DVR

A Local PSU User can send a Call Alert (Page) to a specific DVRS and execute a
remote change of the following:

DVR Mode – from OFF or LOCAL to SYSTEM

DVR Status – from SECONDARY to PRIMARY

MSU Mode – steered from the originally selected (on the Control Head) TG to the TG
selected by the Local PSU.
The following table provides examples of typical steering scenarios:
Local PSU
Call Alert Page
to:
SECONDARY
DVRS A
PSU on TG 1
Call Alert Page
to:
SECONDARY
DVRS A
PSU on TG 1
Call Alert Page
to:
SECONDARY
DVRS A
PSU on TG 2
Call Alert Page
to:
SECONDARY
DVRS A
PSU on TG 2
Call Alert Page
to:
SECONDARY
DVRS A
PSU on CONV1
Call Alert Page
to:
SECONDARY
DVRS A
PSU on TG1
MSU CONV1

Table 14 Remote Steering Typical Scenarios

April 2014
DVRS A
Steering
BEFORE AFTER
OFF OR SYSTEM
LOCAL
PRIMARY
DVR CH 1 DVR CH 1
MSU TG 1 MSU TG 1
OFF OR SYSTEM
LOCAL
SECONDARY
DVR CH 1 DVR CH 1
MSU TG 1 MSU TG 1
OFF OR SYSTEM
LOCAL
PRIMARY
DVR CH 1 DVR CH 1
MSU TG 1 MSU TG 2
OFF OR SYSTEM
LOCAL
SECONDARY
DVR CH 1 DVR CH 1
MSU TG 1 MSU TG 2
SYSTEM
OFF OR
LOCAL
PRIMARY
DVR CH 1 DVR CH 1
MSU TG 1 MSU CONV1
OFF OR SYSTEM
LOCAL
PRIMARY
DVR CH 1 DVR CH 1
MSU TG 1
8A083X20 Rev. 16
DVRS B
Steering
BEFORE
LOCAL OR SYSTEM
PRIMARY
SECONDARY
DVR CH 1
MSU TG 1
LOCAL OR SYSTEM
PERM. PRIMARY
PERM. PRIMARY
DVR CH 1
MSU TG 1
LOCAL OR SYSTEM
PRIMARY
SECONDARY
DVR CH 1
MSU TG 1
LOCAL OR
SYSTEM
PERM. PRIMARY
PERM. PRIMARY
DVR CH 1
MSU TG 1
LOCAL OR
SYSTEM
PRIMARY
SECONDARY
DVR CH 1
MSU TG 1
LOCAL OR
SYSTEM
PRIMARY
SECONDARY
DVR CH 1
MSU TG 1
6881013Y38-P
User's Guide
AFTER
LOCAL OR
SYSTEM
DVR CH 1
MSU TG 1
LOCAL OR
SYSTEM
DVR CH 1
MSU TG 1
LOCAL OR
SYSTEM
DVR CH 1
MSU TG 1
LOCAL OR
SYSTEM
DVR CH 1
MSU TG 1
LOCAL OR
SYSTEM
DVR CH 1
MSU TG 1
LOCAL OR
SYSTEM
DVR CH 1
MSU TG 1
