DVRS Mounting Arrangement

Side-By-Side DVRS
Side-By-Side mounting is the standard option for vehicular type installations. The Cross-
Band DVRS package includes a DVR Repeater and Duplexer Enclosure, mounted on
one side and a Remote Mount MSU mounted next to the DVR.

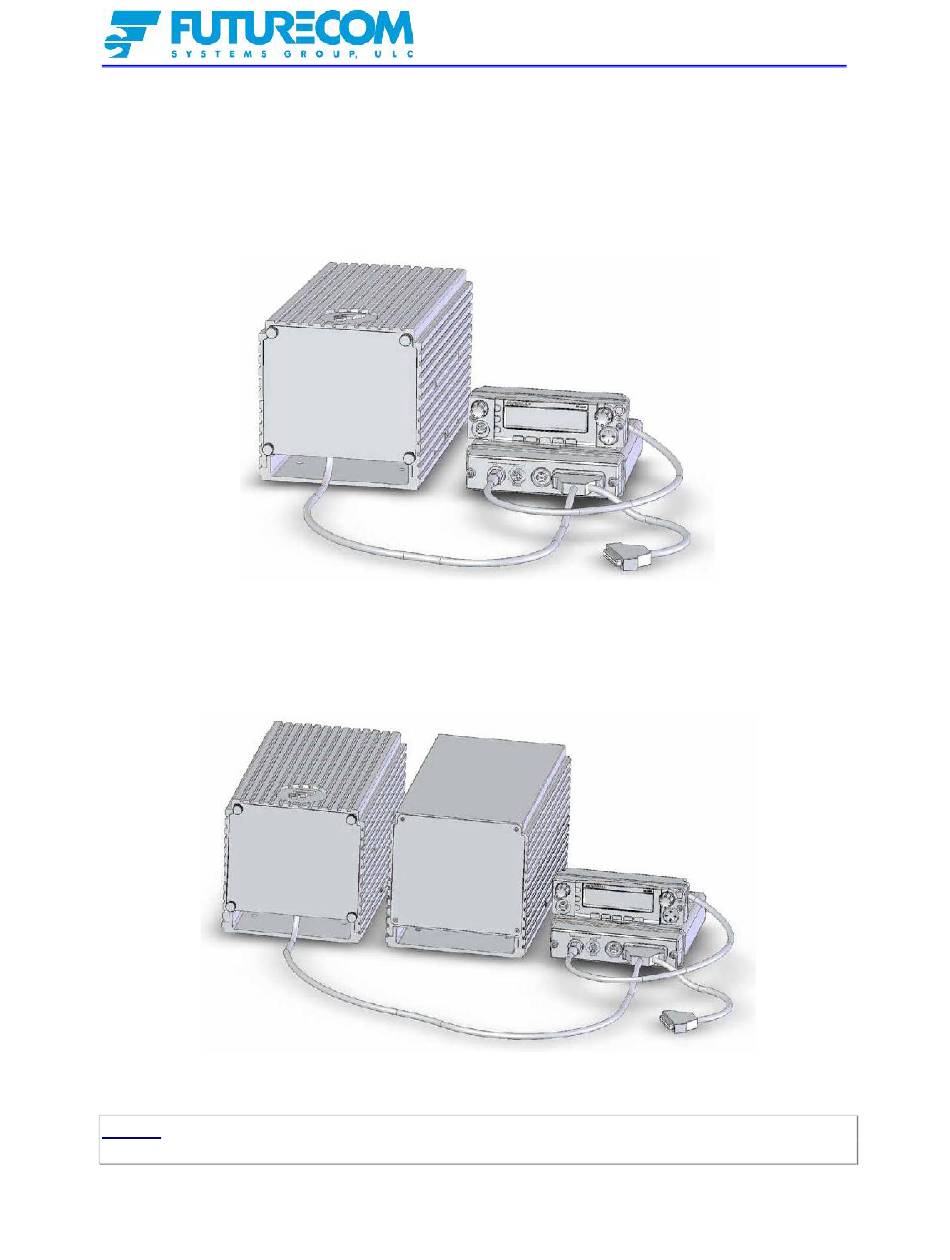

Figure 1 Typical Cross-Band DVRS Layout

The In-Band models are comprised of a DVR Repeater and its associated filtering
shelves mounted on one side, a model-specific in-band filtering shelf (shelves) mounted
as close as possible to the DVR and a Remote Mount MSU mounted next to the in-band
filtering.

Figure 2 Typical In-Band DVRS Layout - VHF

NOTE:
The DVR and MSU always require two separate antennas.
