Fitting the external call station

Select a location close to the
FLUSH MOUNTING
door to be controlled
Recommended mounting height
1.45 meters (camera lens)
Secure back plate to the wall
paying attention to the upward
facing arrow located on the
back plate
Feed cables from each
apartment and the power
supply through the cable entry
hole, the entry hole will need to
be knocked out.

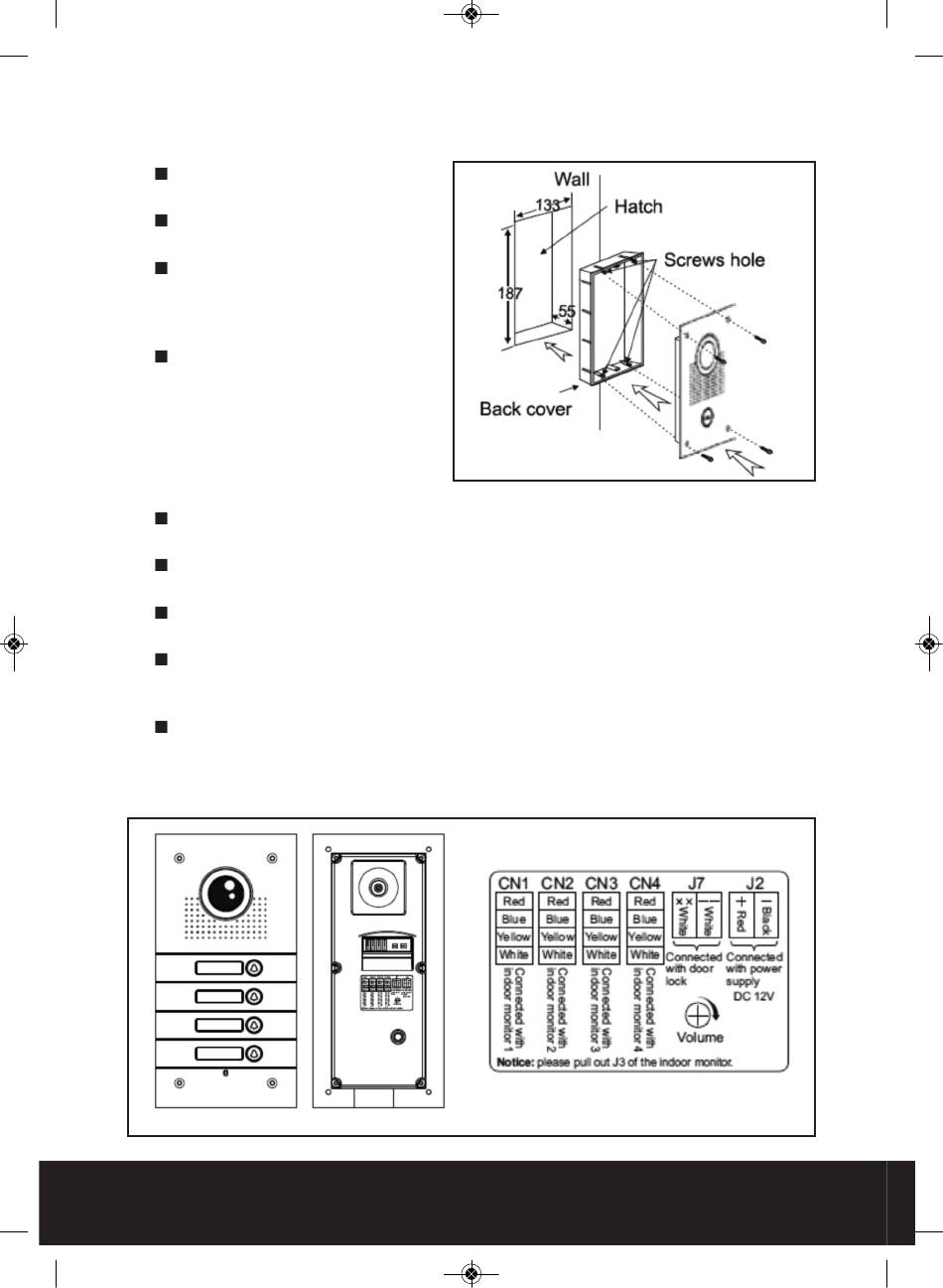

Fig. 2
Wiring the external call station
Each call button will have its own brown 4 core connector (supplied) consisting of
red, blue, yellow and white cores.
The 4 colours that are connected to the brown connector are to be connected to
the corresponding 4 core cable going to each of the apartments.
The connection can be completed by means of soldering, crimping or by use of
screw connectors.
To power the camera, keypad and call station a 12 volt DC feed is required. To do
this a white two pin plug consisting of red and black cores supplied should be
connected to the corresponding cable going to the EVBPS power supply.
The two single black cables on the external call station are for the lock release.
These are volt free and are normally open going closed. These contacts will
change state on the lock release command. The two black cables need to be
connected the EVBPS 'p.b' terminal
Fig. 3
