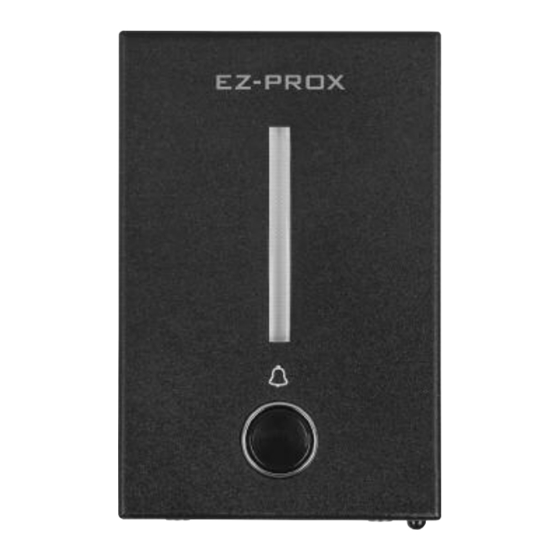

ESP EZ-PROX User Manual

Single door proximity door entry
Hide thumbs

Advertisement

Quick Links

Download this manual
EZ-PROX
S I N G L E D O O R P R OX I M I T Y D O O R E N T R Y
U S E R M A N U A L

Advertisement

loading
Need help?

Need help?

Do you have a question about the EZ-PROX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ESP EZ-PROX

Summary of Contents for ESP EZ-PROX

  • Page 1 EZ-PROX S I N G L E D O O R P R OX I M I T Y D O O R E N T R Y U S E R M A N U A L...
  • Page 2 Green break glass emergency release (EVEBG)* *Note:- for use with Magnetic lock only Functions of the EZ-PROX The EZ-PROX can control one door by use of tags. Programmable door open time 00 to 99 seconds. 1000 Tags can be programmed.
  • Page 3 Sighting Of The EZ-PROX The EZ-PROX must not be located within 2 meters of any reader/keypad type devices. The EZ-PROX must not be sited back to back with reader/keypad type devices. Site the EZ-PROX within easy access to the door/doors to be...
  • Page 4 Wiring Diagram Red-power DC input +12V - +24V Black-power AC input ~ 12V - 24V Brown-door status detecting reed switch Orange-push to exit button Yellow-DATA 1 Green-GND Blue-Door bell Purple-Door bell Gray-DATA 0 White-NO 1 Pink-COM 1 Aqua-NC 1 Shielded ground DC input +12V - +24V AC input ~ 12V - 24V...
  • Page 5 Wiring Diagram for Maglock EV-BPS 240vAC INPUT Push button E.lock DC out Timer GND P.B Exit Button 0-20 secs Capacitor Maglock 0.47uF 100v Emergency door release Wiring Diagram for Yale Release EV-BPS 240vAC INPUT E.lock DC out Push button Timer GND P.B Exit Button 0-20...
  • Page 6 Note:- Do not have Tags in your hand or close by when pressing keys. EZ-PROX has 1000 locations available from 000 to 999. 1. Enter programming mode the blue LED will turn yellow. 2. Enter the location you want to programme the Tag to in a 3 digit format (xxx).
  • Page 7 Programing a group of fobs or cards Enter programing mode. 1. All tags to be programed as a group must have consecutive numbers. 2. Press the * key then the 9 key the yellow light will flash 3. Press the 0 key then the 1 key the unit will bleep once. 4.
  • Page 8 Changing the Programming code 1. Enter programming mode. A Long bleep will be heard and the blue power LED will turn yellow. 2. Press * key followed by the 3 key the orange LED will start to flash. 3. Enter the new programming pin twice. A conformation bleep will be heard.

  • Page 9: Factory Default

    Delete all user fobs and cards and restore to factory default Enter programming mode. 1. A Long bleep will be heard and the blue power LED will turn yellow. 2. Press * key followed by the 8 key theyellow LED will start to flash.

  • Page 10: Technical Specifications

    Technical Specifications Working temperature -10 ~ +55ºC Voltage DC: 12V-24V AC: 12V~24V Working current <120mA Standby current <90mA Card mode ID / IC card Effective distance <5CM Capacity 1000 Cards or Fobs Elite Security Products Fax: 01527 515143 Tel: 01527 515150 email: info@espuk.com...
