Enterview VX Manual_Layout 2 01/08/2013 09:22 Page 2
Table of contents
Planning and installing the Enterview VX . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Fitting the external call station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Fitting and wiring the handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Programming the Enterview VX keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Trouble Shooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Optional accessories for Enterview VX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

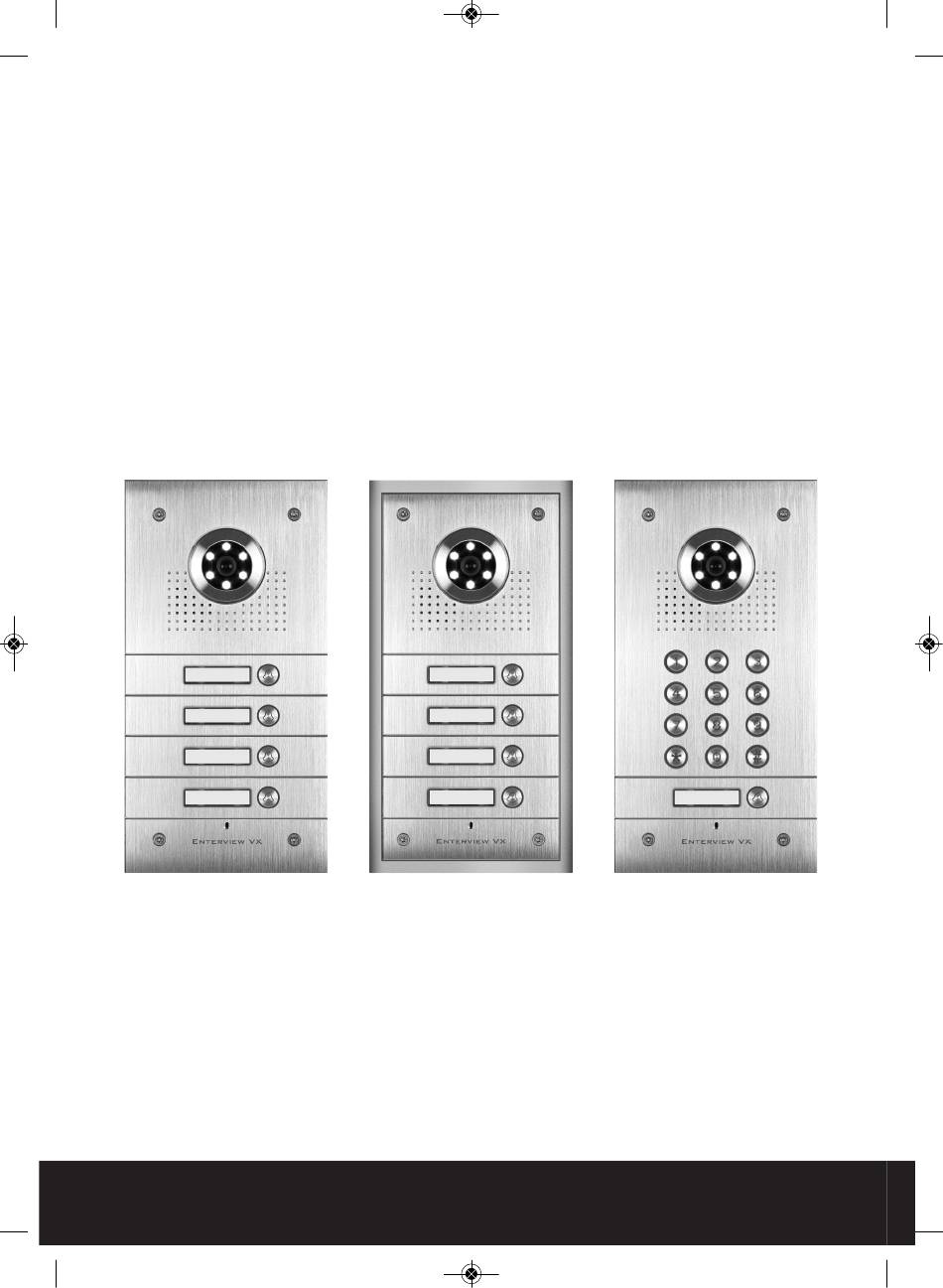

EVVX1F
1 button flush mount video
door station
EVVX2F
2 button flush mount video
door station
EVVX3F
3 button flush mount video
door station
EVVX4F
4 button flush mount video
door station
2
EVVX1S
1 button surface mount
video door station
EVVX2S
2 button surface mount
video door station
EVVX3S
3 button surface mount
video door station
EVVX4S
4 button surface mount
video door station
EVVX1KPF
1 button flush mount video
door station with keypad
EVVX2KPF
2 button flush mount video
door station with keypad
EVVX1KPS
1 button surface mount video
door station with keypad
EVVX2KPS
2 button surface mount video
door station with keypad
