ESP Enterview Multi Operation And Installation Instructions Manual

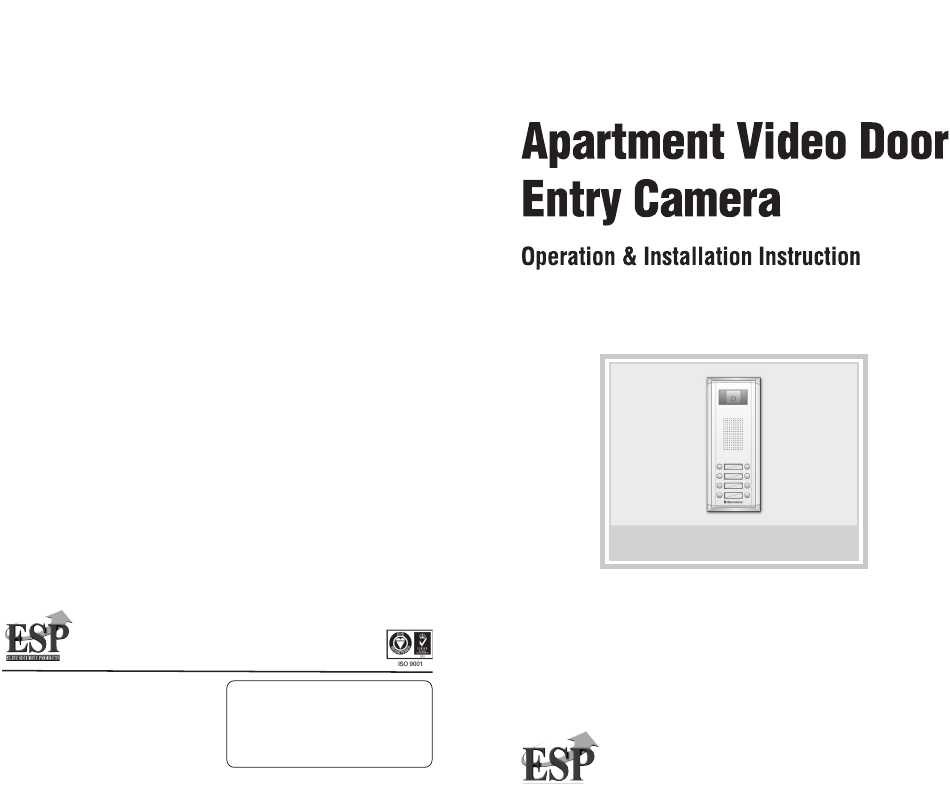

Apartment video door entry camera

Advertisement

Quick Links

Enterview Multi
6320000028H
For your protection, please read these instructions completely and keep it for future reference

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Enterview Multi and is the answer not in the manual?

Questions and answers

Summary of Contents for ESP Enterview Multi

  • Page 1 Enterview Multi 6320000028H For your protection, please read these instructions completely and keep it for future reference...
  • Page 2 WARNING To prevent injury, the following safety precaution should be observed during installation, use and servicing of the unit. CAUTION RISK OF ELECTRIC SHOCKS DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL This symbol is intended to alert the user to the presence of...
  • Page 3: Important Safeguards

    To 17. Replacement Part operate the unit by battery or other power source, consult the When replacement parts are required, use replacement parts specified operating instructions. by the manufacturer. 02|03 Enterview Multi...
  • Page 4: System Components

    ESP introduces the most advanced apartment door entry video system allowing easy and simple installation.(additional system set-up after wiring is not required) New Enterview Multi System is the ideal communication solution for apartment and condominium. Front panel Position the camera adjustment to get better view and tighten the screws on it with a philip screwdriver before installation.
  • Page 5: Installation

    Note : 1. The connection between wires and connectors should be completed in the reverse side of your desired call buttons 2. No additional system set-up is necessary after wiring 06|07 Enterview Multi...
  • Page 6: Specifications

    Operations Specifications Enterview Multi The monitor station sounds a melody and the indicator light of door camera flashes after a visitor presses the “call” button of door camera Remark Specification Power Source Regulated DC 12V Power Consumption DC 12V, 230mA / 330mA...
  • Page 7: Installation And Wiring

    Installation & Wiring Panel Combination Installation (Extension Panel With Jointers) Wiring 1. Put the wires into connectors between the modules. 2. Remove the stopper of each flush box. 3. Pass the wire(A) through the jointers and plug to connector(B) 10|11 Enterview Multi...
  • Page 8 Memo Memo Technical Helpline - 0121 786 1881...
