Summary of Contents for ESP Enterview 3

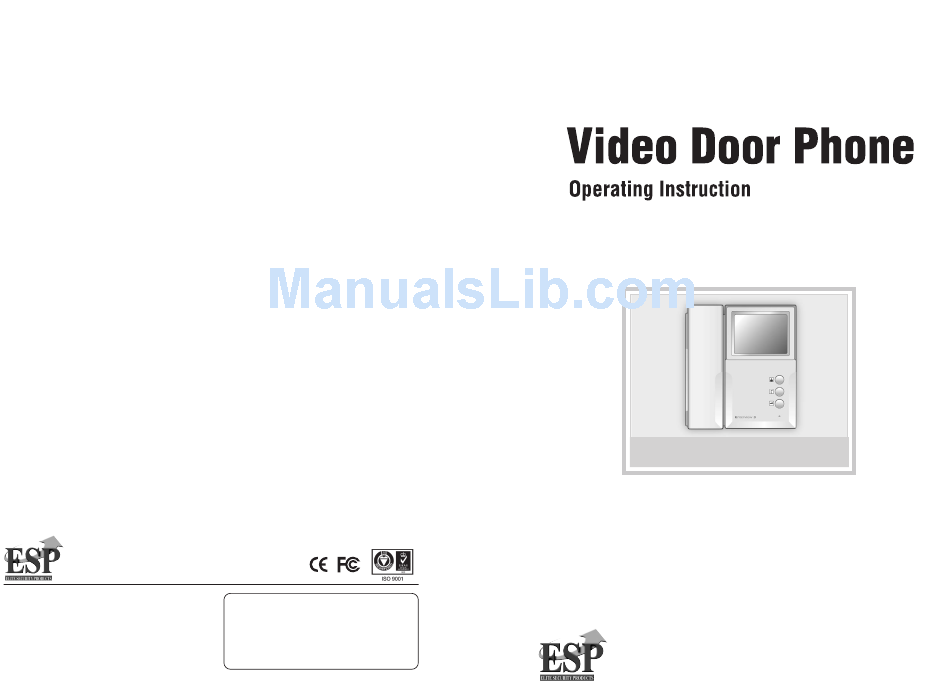

- Page 1 Enterview 3/ 3V/ 3C/ 3VC 6320000026H For your protection, Please read these instructions completely and keep it for future reference Hanmi Building 45, Pang-E Dong, Songpa-Ku Seoul 138-724, Korea Tel 82.2.2240.9234/9271/9273 Web site : www.hyundaitel.com Hyundai Telecom Printed in Korea...
- Page 2 WARNING To prevent injury, the following safety precaution should be observed during installation, use and servicing of the unit. CAUTION RISK OF ELECTRIC SHOCKS DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL This symbol is intended to alert the user to the presence of uninsulated...
- Page 3 When replacement parts are required, use replacement parts specified by the or other power source, consult the operating instructions. manufacturer. 10. Grounding and Polarization This unit may be equipped with either a polarized 2-wire AC line plug 02|03 Enterview 3 / 3V / 3C / 3VC...
-
Page 4: Table Of Contents
TABLE OF CONTENTS UNIT & COMPONENTS Front/Side/Bottom panel Parts Enclosed INSTALLATION & WIRING UNIT & COMPONENTS Installation Wiring OPERATIONS How to use Buttons and adjustment on the unit Communication function ADDITIONAL INFORMATION Troubleshooting Guide Specifications... -
Page 5: Unit & Components
UNIT & COMPONENTS Optional Cameras Front panel Main unit Front panel Enterview 3 / 3C Enterview 3V / 3VC Enterview Multi Optional Cameras Side & Bottom panel Main unit Side & Bottom panel 06|07 Enterview 3 / 3V / 3C / 3VC... -
Page 6: Parts Enclosed
The parts shown below are provided by the manufacture and are enclosed in the box OPERATIONS Mounting Bracket / Flush Box / Surface Mount Box Handset Main Cable / Screw / Wrench Manual (Optional Cameras) Enterview 3 / 3C Enterview 3V / 3VC Enterview Multi... -
Page 7: Installation & Wiring
40 C) or high humidity conditions. Do not select an installation location subjected to When planning the initial Enterview 3 System wiring installation, consider future vibration or pounding. system expansion. The total wire length for a single camera and monitor system (or... - Page 8 Basic(Single Camera/Single Main) Option 2(Enterview 3V / 3VC) Option 1(Single Camera/Two Main) 12|13 Enterview 3 / 3V / 3C / 3VC...
-
Page 9: Operations
OPERATIONS How to use buttons & adjustment on the unit BUTTON DESCRIPTION Monitor ON/OFF of screen, talk through door camera Intercom Activate an talk with the intercom Door Door release ADJUSTMENT DESCRIPTION Brightness adjustment. (In off hook) After pick up the handset, user can adjust the brightness of screen (Mode: Normal/ Brighter) ADDITIONAL INFORMATION... -
Page 10: Troubleshooting Guide
ADDITIONAL INFORMATION Specifications Enterview 3 / 3V / 3C / 3VC (Main unit) Remark Specification Voltage Requirements 90~250V AC, 50/60 Hz(Smps) Maximum 30VA, Stand by 5VA Power Consumption Color Maximum 28VA, Stand by 5VA Monitor Screen B&W Flat 4 Flat type / Color 4 TFT-LCD Maximum Wiring Distance 50m/165 feet (22 AWG, 0.65mm 4wire) - Page 11 Dimension 123W 308H 18D(mm) / 4-5/6W 12-1/8H 5/7D(Inches) Size Weight 1kg / 2.2 Ibs Installation Flush Mount Type The depth of camera on the table indicates from wall surface after installation 18|19 Enterview 3 / 3V / 3C / 3VC...
- Page 12 Memo...
