Summary of Contents for ESP Enterview VX

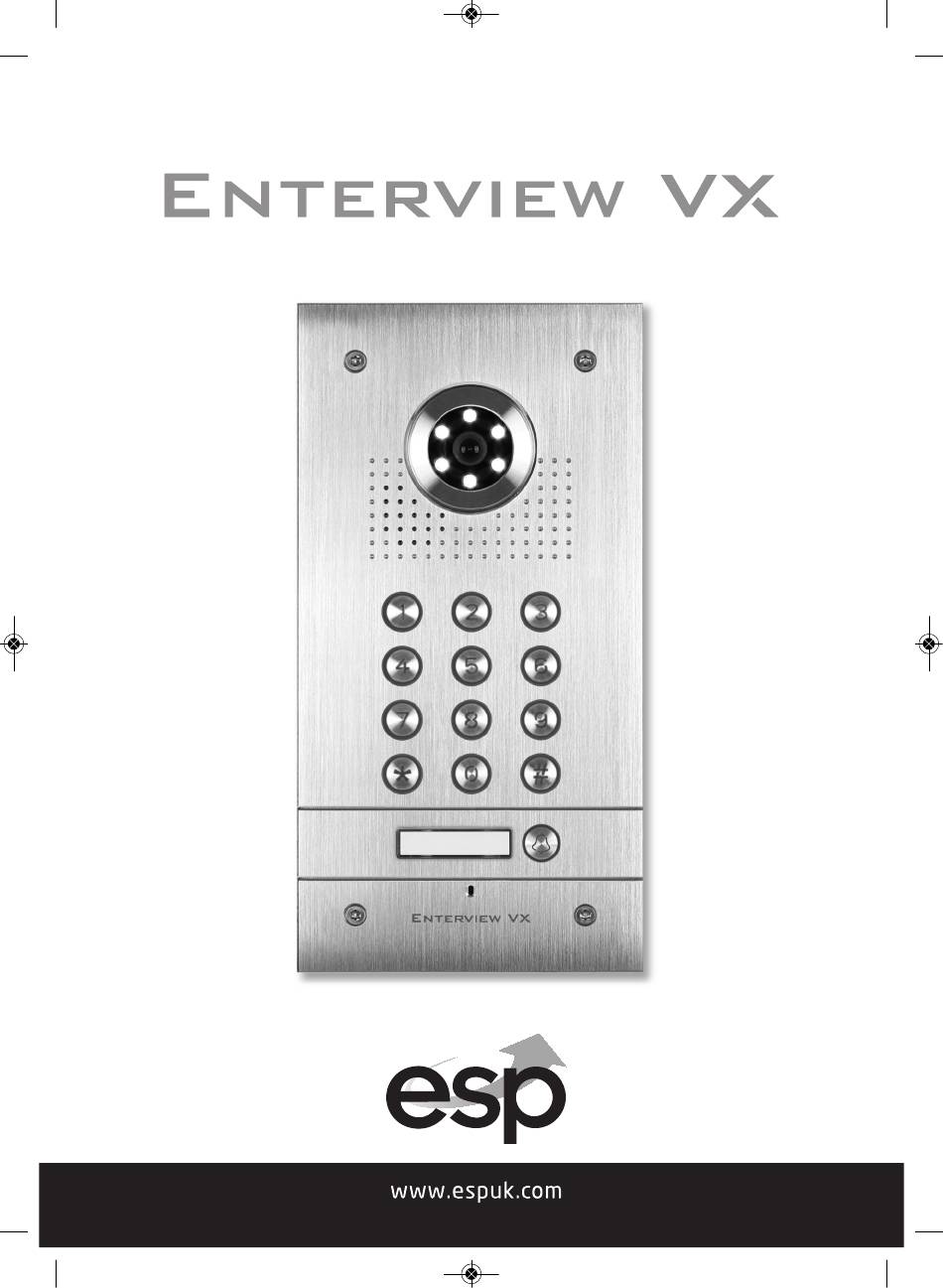

- Page 1 Enterview VX Manual_Layout 2 01/08/2013 09:22 Page 1...
-
Page 2: Table Of Contents
Fitting and wiring the handset ........7 Programming the Enterview VX keypad ......9 Trouble Shooting Guide . -
Page 3: Planning And Installing The Enterview Vx
Enterview VX Manual_Layout 2 01/08/2013 09:22 Page 3 Planning and installing the Enterview VX External call station How many Entry Doors (Front or/and Rear) Mounting: flush or surface. Equipment required External call station (one required per door) Maximum of 4 call buttons... - Page 4 Enterview VX Manual_Layout 2 01/08/2013 09:22 Page 4 Basic cabling 240 VAC mains feed to external door and lock control power supply (EVBPS) 240 VAC mains feed to each handset (via transformer- supplied) 4 core from each external call station (front/rear) to its own power supply (EVBPS)
-
Page 5: Wiring Diagram
Enterview VX Manual_Layout 2 01/08/2013 09:22 Page 5 Wiring diagram Fig. 1... -
Page 6: Fitting The External Call Station
Enterview VX Manual_Layout 2 01/08/2013 09:22 Page 6 Fitting the external call station Select a location close to the FLUSH MOUNTING door to be controlled Recommended mounting height 1.45 meters (camera lens) Secure back plate to the wall paying attention to the upward... -
Page 7: Fitting And Wiring The Handset
Enterview VX Manual_Layout 2 01/08/2013 09:22 Page 7 Removing name tag To remove name tag: 1) Push in name tag on the left-hand side 2) Slide name tag from right to left Fitting and wiring the handset On all types of handsets fitted to a EVVX system please remove the jumper labeled J3. - Page 8 Enterview VX Manual_Layout 2 01/08/2013 09:22 Page 8 Fig. 5 Fig. 6...
-
Page 9: Programming The Enterview Vx Keypad
Enterview VX Manual_Layout 2 01/08/2013 09:22 Page 9 Fitting the handset to the bracket Locate the 4 lugs on the metal back plate, one located on each corner see Fig. 7, these lugs must fit into the recesses on the rear of the hand set. - Page 10 Enterview VX Manual_Layout 2 01/08/2013 09:22 Page 10 Press the # key to delete the code from the location, a 2 second confirmation tone will be heard. Return to the beginning to delete more codes or press the * key to exit programming mode.
-
Page 11: Trouble Shooting Guide
Enterview VX Manual_Layout 2 01/08/2013 09:22 Page 11 Trouble Shooting Guide No picture appears on the monitor (blue or white screen) Check that all wires are connected and connected in the correct configuration Check that the voltage at the back of the monitor across terminals 5 and 6. The voltage should be over 14.3vDC, if it is not then the handset will not function... -
Page 12: Optional Accessories For Enterview Vx
Enterview VX Manual_Layout 2 01/08/2013 09:22 Page 12 Optional accessories for Enterview VX EVH5C-HF – Hands Free Colour EVH5C – Colour Handset EVHF10W and EVHF10B - Handset Colour handsfree 10" monitor I High resolution colour 4” monitor I High resolution colour 7” monitor I High resolution colour 10”...
