CellComSL™ Series Cellular Alarm Communicator

Description

The CellComSL™ Series Alarm Communicator provides a fully supervised alarm communication path for any burglary
control panel. The CellComSL Series communicators can be connected to a control panel's dialer output and used
to capture Contact ID messages. The CellComSLC has a built-in CDMA cellular module to send messages to DMP
Model SCS-1R or SCS-VR Central Station Receivers. The communicator also provides three burglary zones and two
open-collector outputs for connection to burglary control panel outputs and zones. Intrusion detection devices,
such as PIRs, door/window contacts or holdup buttons, can be wired to the three zones on the CellComSL. The
CellComSL Series Communicator Zone 4 provides a connection to the bell output of an existing burglary control
panel. The CellComSLCZ™ Alarm Communicator includes an onboard Z-Wave controller for home automation
applications.

What is Included

The CellComSL Series Cellular Alarm Communicator includes the following:
PCB with Enclosure
3.7 VDC 800 mAh Lithium Ion Battery
Hardware Pack
MODEL CellComSL
B
1.1

Terminals (J9)

Power Connection Terminals

Power is provided from the 12 VDC auxiliary output of the burglary control panel.
OBSERVE POLARITY (See Figure 1)
1. U sing 18 - 22 AWG wire, connect the communicator terminal +12 to the positive terminal on the control
panel auxiliary output.
2. C onnect the communicator terminal G (Ground) to the negative terminal on the control panel auxiliary
output.

Standby Battery

During a power outage, the CellComSL draws power from the burglary control panel's backup
battery. The CellComSL must be included in the standby battery calculations for the burglary
control panel.

Zones 1-3

Terminals Z1 to Z3 and G (Ground) provide three zones to connect to individual outputs on the
burglary control panel or to intrusion devices (PIR, door, panic buttons or windows contacts).
CellComSL Series Communicator Install/Programming Guide

SYSTEM COMPONENTS

System Components
J8
R
J9
S3
+12
G
Z1
Z2

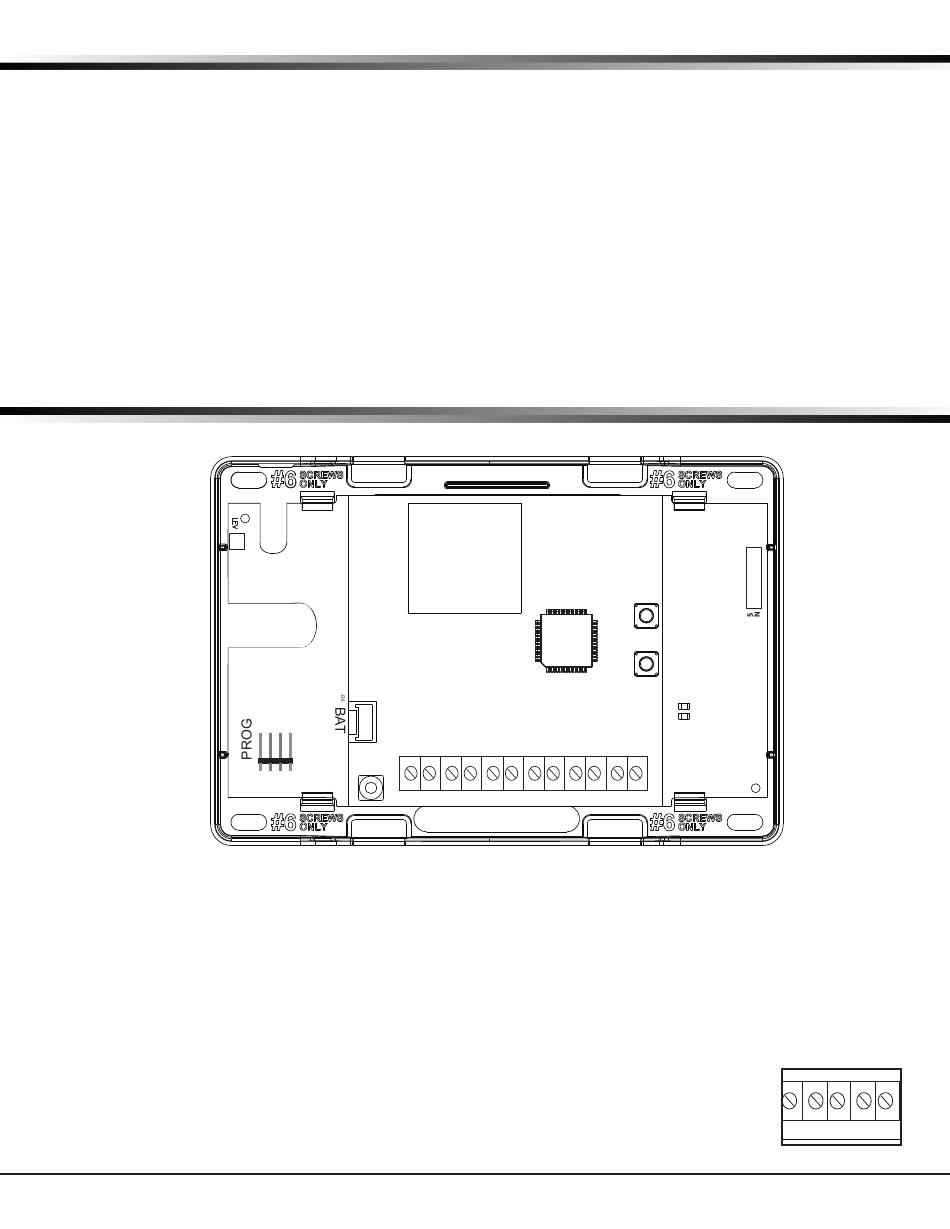

Figure 1: CellComSL Series Communicator
INTRODUCTION
S1
RESET
S2
LOAD
Z3
G
Z4+
Z4-
O1
O2
T
R
MODEL CellComSL
J8
B
R
J9
S3
+12
G
Z1
Z2
Z3
G
Z4+
Figure 2: Zones 1 - 3
Digital Monitoring Products
1
Z4-
