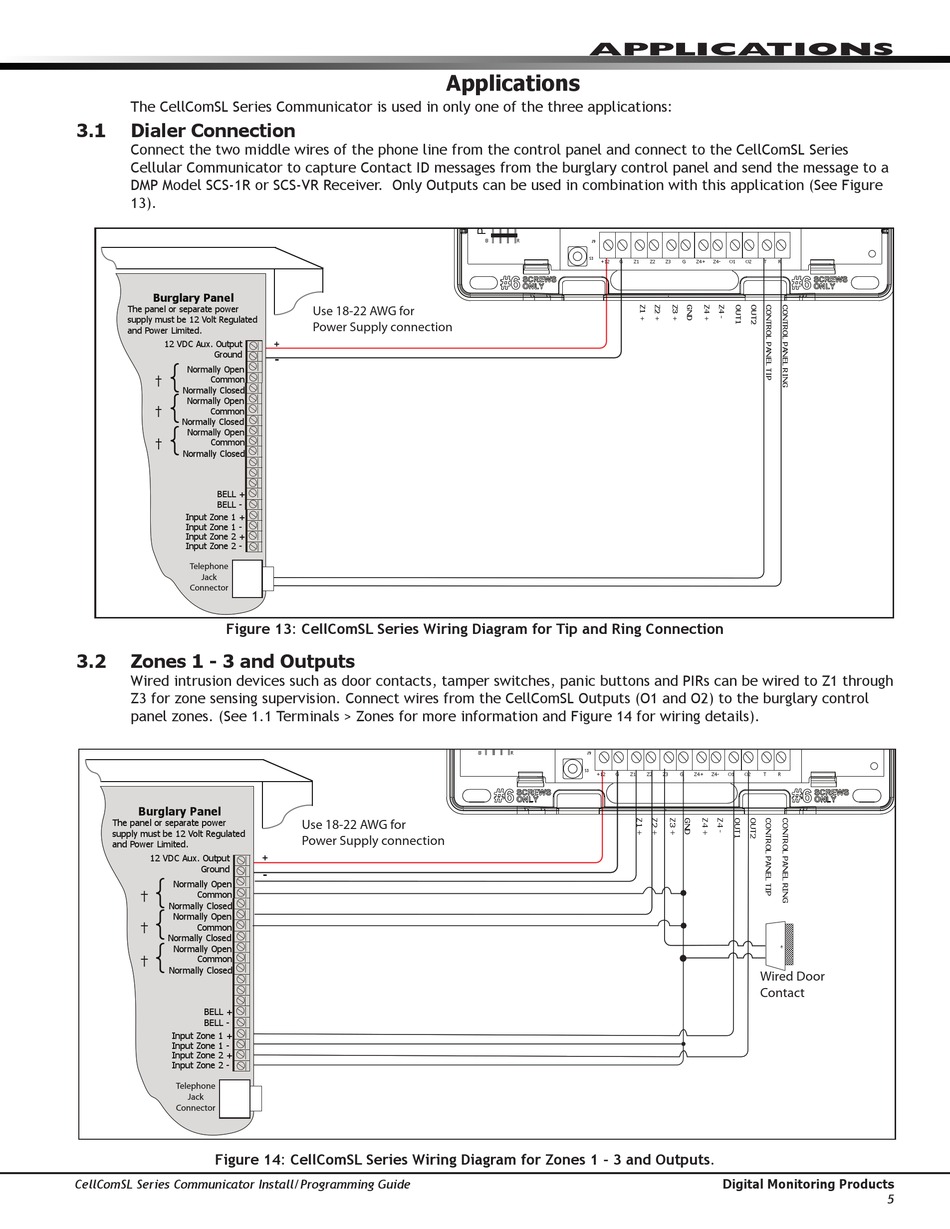

The CellComSL Series Communicator is used in only one of the three applications:
3.1

Dialer Connection

Connect the two middle wires of the phone line from the control panel and connect to the CellComSL Series
Cellular Communicator to capture Contact ID messages from the burglary control panel and send the message to a
DMP Model SCS-1R or SCS-VR Receiver. Only Outputs can be used in combination with this application (See Figure
13).
Burglary Panel
The panel or separate power
supply must be 12 Volt Regulated
and Power Limited.
12 VDC Aux. Output
{
Ground
Normally Open
Common
{
Normally Closed
Normally Open
Common
{
Normally Closed
Normally Open
Common
Normally Closed
BELL +
BELL -
Input Zone 1 +
Input Zone 1 -
Input Zone 2 +
Input Zone 2 -
Telephone
Jack
Connector
Figure 13: CellComSL Series Wiring Diagram for Tip and Ring Connection
3.2

Zones 1 - 3 and Outputs

Wired intrusion devices such as door contacts, tamper switches, panic buttons and PIRs can be wired to Z1 through
Z3 for zone sensing supervision. Connect wires from the CellComSL Outputs (O1 and O2) to the burglary control
panel zones. (See 1.1 Terminals > Zones for more information and Figure 14 for wiring details).
Burglary Panel
The panel or separate power
supply must be 12 Volt Regulated
and Power Limited.
12 VDC Aux. Output
{
Ground
Normally Open
Common
{
Normally Closed
Normally Open
Common
{
Normally Closed
Normally Open
Common
Normally Closed
BELL +
BELL -
Input Zone 1 +
Input Zone 1 -
Input Zone 2 +
Input Zone 2 -
Telephone
Jack
Connector
Figure 14: CellComSL Series Wiring Diagram for Zones 1 - 3 and Outputs.
CellComSL Series Communicator Install/Programming Guide
Use 18-22 AWG for
Power Supply connection
+
-
Use 18-22 AWG for
Power Supply connection
+
-
APPLICA TIONS

Applications

MODEL CellCom
J8
B
R
J9
S3
+12
G
MODEL CellCom
J8
B
R
J9
S3
+12
G
S1
RESET
S1
S2
LOAD
S2
Z1
Z2
Z3
G
Z4+
Z4-
O1
O2
T
R
S1
RESET
S1
S2
LOAD
S2
Z1
Z2
Z3
G
Z4+
Z4-
O1
O2
T
R
Wired Door
Contact
