INST ALLA TION
2.1

Selecting a Location

Install the communicator away from metal objects. DO NOT mount the CellComSL Series Communicator inside or
on the burglary control panel metal enclosure (See Figure 10).
Mounting the communicator on or near metal surfaces impairs performance. The enclosure for the communicator
must be mounted using the provided #6 screws in the four mounting holes (See Figure 11). Mount the enclosure in
a secure, dry place away from metal objects to protect the communicator from damage due to tampering or the
elements. It is not necessary to remove the PCB when installing the enclosure.
When installing component wires care must be taken to route all wires in such a manner that they will not
interfere with the Tamper switch. See Figure 12.
Digital Monitoring Products
4

Mounting the CellComSL Series Communicator

Burglary Control
Panel
Metal Enclosure

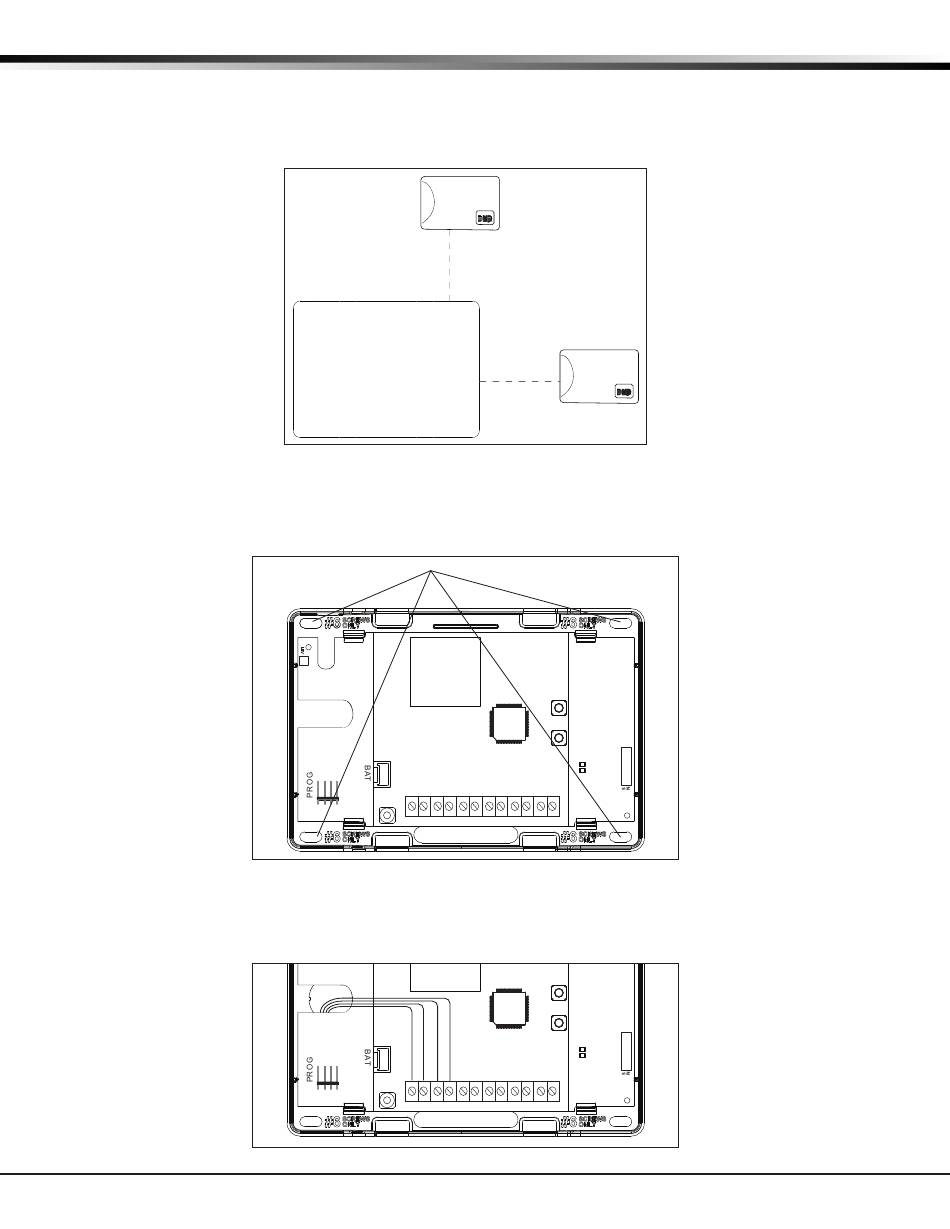

Figure 10: Suggested Mounting Locations
Mounting Screw Locations
MODEL CellComSL
B
R
+12
Figure 11: Mounting Screw Locations
MODEL CellComSL
B
R
+12
Figure 12: Wire Routing
RESET
S1
LOAD
S2
G
Z1
Z2
Z3
G
Z4+
Z4-
O1
O2
T
R
RESET
S1
LOAD
S2
G
Z1
Z2
Z3
G
Z4+
Z4-
O1
O2
T
R
CellComSL Series Communicator Install/Programming Guide
