APPLICA TIONS
3.3

Zone 4 and Outputs

Zone 4 (Z4+ and Z4-) is intended for connection to the control panel bell output. This zone detects an alarm
condition on the burglary control panel by monitoring the voltage of the bell output. (See 1.1 Terminals > Zone 4
for more information and Figure 15 for wiring details).
Burglary Panel
The panel or separate power
supply must be 12 Volt Regulated
and Power Limited.
12 VDC Aux. Output
{
Ground
Normally Open
Common
{
Normally Closed
Normally Open
Common
{
Normally Closed
Normally Open
Common
Normally Closed
BELL +
BELL -
Input Zone 1 +
Input Zone 1 -
Input Zone 2 +
Input Zone 2 -
Telephone
Jack
Connector
3.4

Virtual Keypad App

Using your Smartphone and the DMP Virtual Keypad App, you can connect to your CellComSL Series Communicator
to arm the Area, configure Z-Wave devices (CellComSLCZ only), configure your Favorites (CellComSLCZ only),
configure Rooms (CellComSLCZ only), turn Outputs on and off, and add, edit or remove Users.
Enter Email
Enter Password
Log In
Virtual Keypad

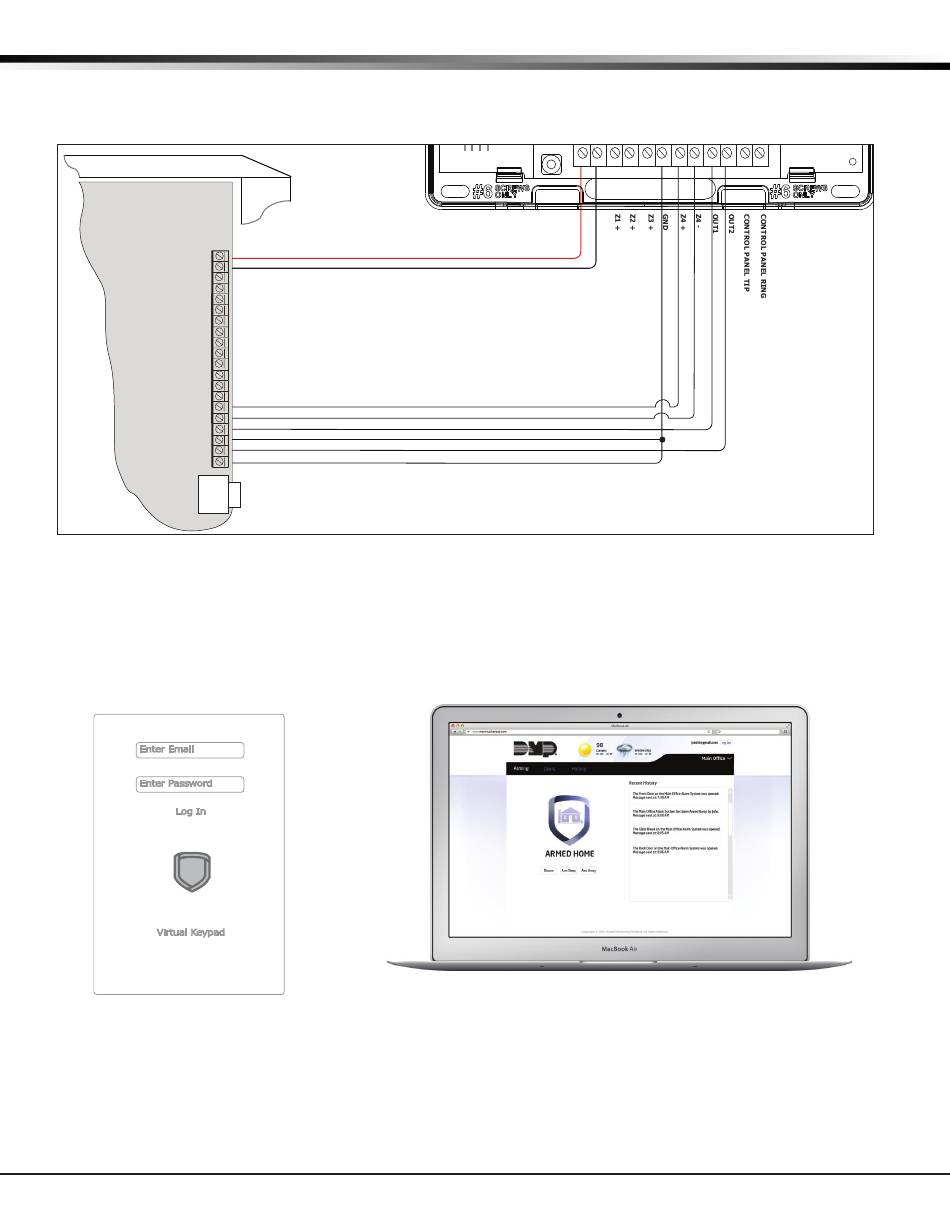

Figure 16: Virtual Keypad Application can be used to access the CellComSL Series Communicator.
Digital Monitoring Products
6
Use 18-22 AWG for
Power Supply connection
+
-
Figure 15: Zone 4 and Output Connections
MODEL CellCom
J8
B
R
J9
S3
+12
G
Z1
CellComSL Series Communicator Install/Programming Guide
S1
RESET
S1
S2
LOAD
S2
Z2
Z3
G
Z4+
Z4-
O1
O2
T
R
