Chapter 4
Technical Aspects and
Specifications
This appendix describes some of the important technical aspects of your PowerLab, to
give some insight into how they work. You do not need to know the material here to use
your PowerLab. It is likely to be of special interest to the technically minded, indicating
what the PowerLab can and cannot do, and its suitability for particular purposes. You
should not use it as a service manual: user modification of the PowerLab voids your
rights under warranty.

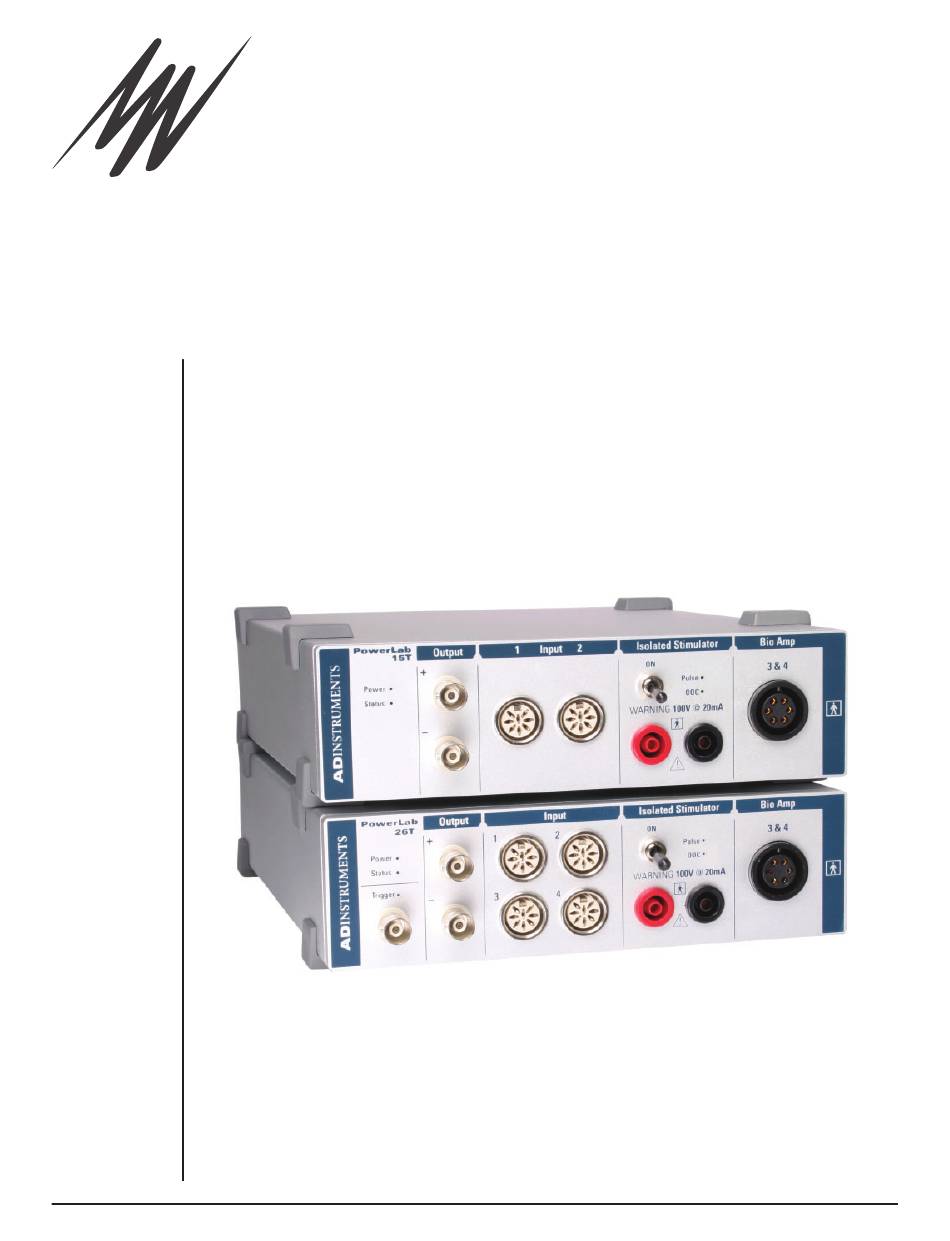

Figure 4-1
PowerLabs 15T
and 26T
28
PowerLab Teaching Series - Owner's Guide
