The Rear Panel

The rear panels of the PowerLab (Figure 1–5 to Figure 1–7) provide the sockets to
connect the PowerLab to the computer, other devices and the power outlet. This section
describes each of the rear panel features:
• Audio connector (PowerLab 26T only)
• I2C connector (not on PowerLab 15T)
• USB connector
• Digital input and output connectors (PowerLab 26T only)
• Ground connector
• Power switch and socket.

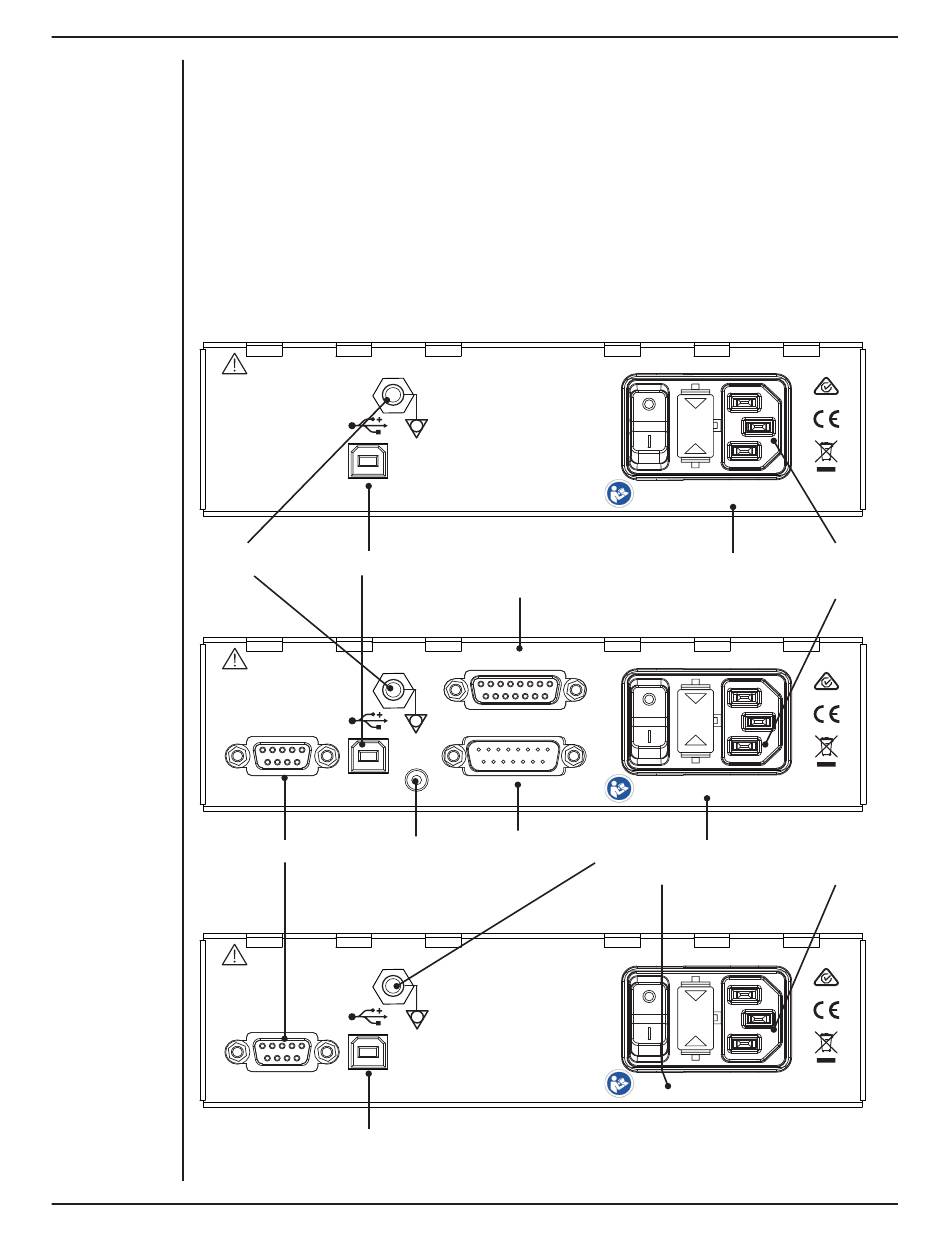

Figure 2–6
The rear panel
Not intended for human connection unless
of the
connections marked appropriately.
No user serviceable parts inside.
PowerLab 15T
Refer servicing to qualified service personnel.
Made in Australia by ADInstruments Pty Ltd.
Ground
Figure 2–7
The rear panel
Not intended for human connection unless
of the
connections marked appropriately.
No user serviceable parts inside.
PowerLab 26T
Refer servicing to qualified service personnel.
Made in Australia by ADInstruments Pty Ltd.
2
I C connector
Figure 2–8
The rear panel
Not intended for human connection unless
of the
connections marked appropriately.
No user serviceable parts inside.
PowerLab 2/26 Refer servicing to qualified service personnel.
and 4/26
Made in Australia by ADInstruments Pty Ltd.
13
WARNING:
USB connector
WARNING:
2
I C Bus
Audio
Output
Audio connector
WARNING:
2
I C Bus
USB connector
Rated Voltage: 100-240 V AC 50/60 Hz 35 VA
Fuse Type: 250VAC; 1A; TIME LAG; 5x20mm
Replace only with fuse of same type and rating
Digital Output
connector
Digital Output Rated Voltage: 100-240 V AC 50/60 Hz 35 VA
Digital Input
Fuse Type: 250VAC; 1A; TIME LAG; 5x20mm
Replace only with fuse of same type and rating
Digital Input Ground
connector
Rated Voltage: 100-240 V AC 50/60 Hz 35 VA
Fuse Type: 250VAC; 1A; TIME LAG; 5x20mm
Replace only with fuse of same type and rating
