Optidew User's Manual
2

INSTALLATION

2.1

Mounting

Optidew 501

The Optidew can be wall mounted using the four mounting points on each corner (see
figure 2 for mounting point dimensions). It is possible to install the Optidew 501 outside,
providing it is shielded from direct sunlight and the climate is within the environmental
requirements listed in Appendix A Technical Specifications. It is highly recommended to
choose the weatherproof option if the installation will be outdoors.
Fixings
Secure using 4 off M4 + washer x 15 long screws, or M6 + washer x 15mm long screws.
Unit must be secured to a solid surface (e.g. brick, concrete, wood min 10mm thick) or
to a metal chassis plate of minimum 3mm thickness.

Optidew 401

The Optidew 401 is designed to be placed on a bench or table to operate. Alternatively
it can be used directly from within the optional Transport Case.
Michell Instruments

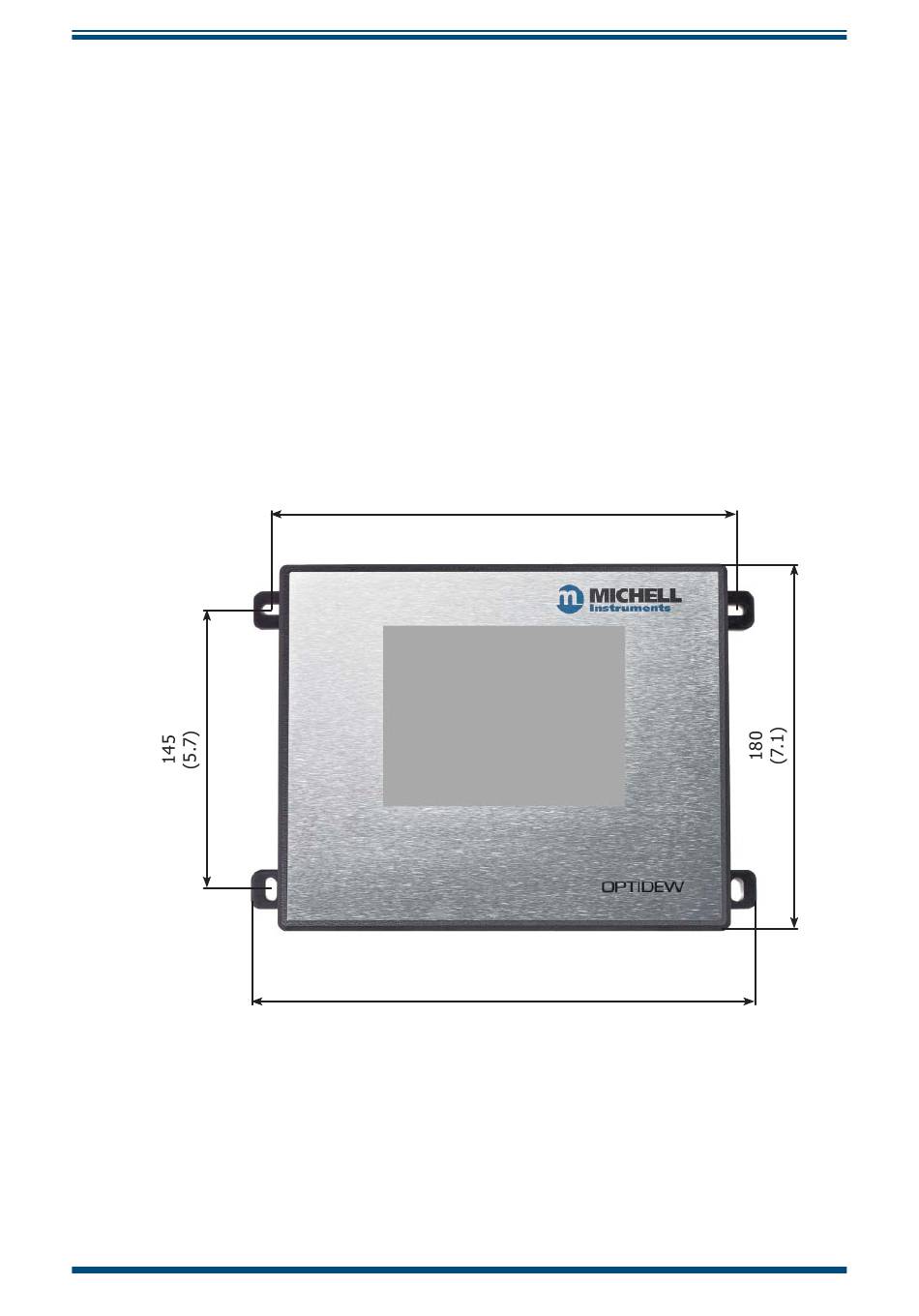

Optidew 501 wall mounting points
Figure 2
240
(9.4)
260
(10.2)
INSTALLATION
3
