Optidew User's Manual
3.1.5

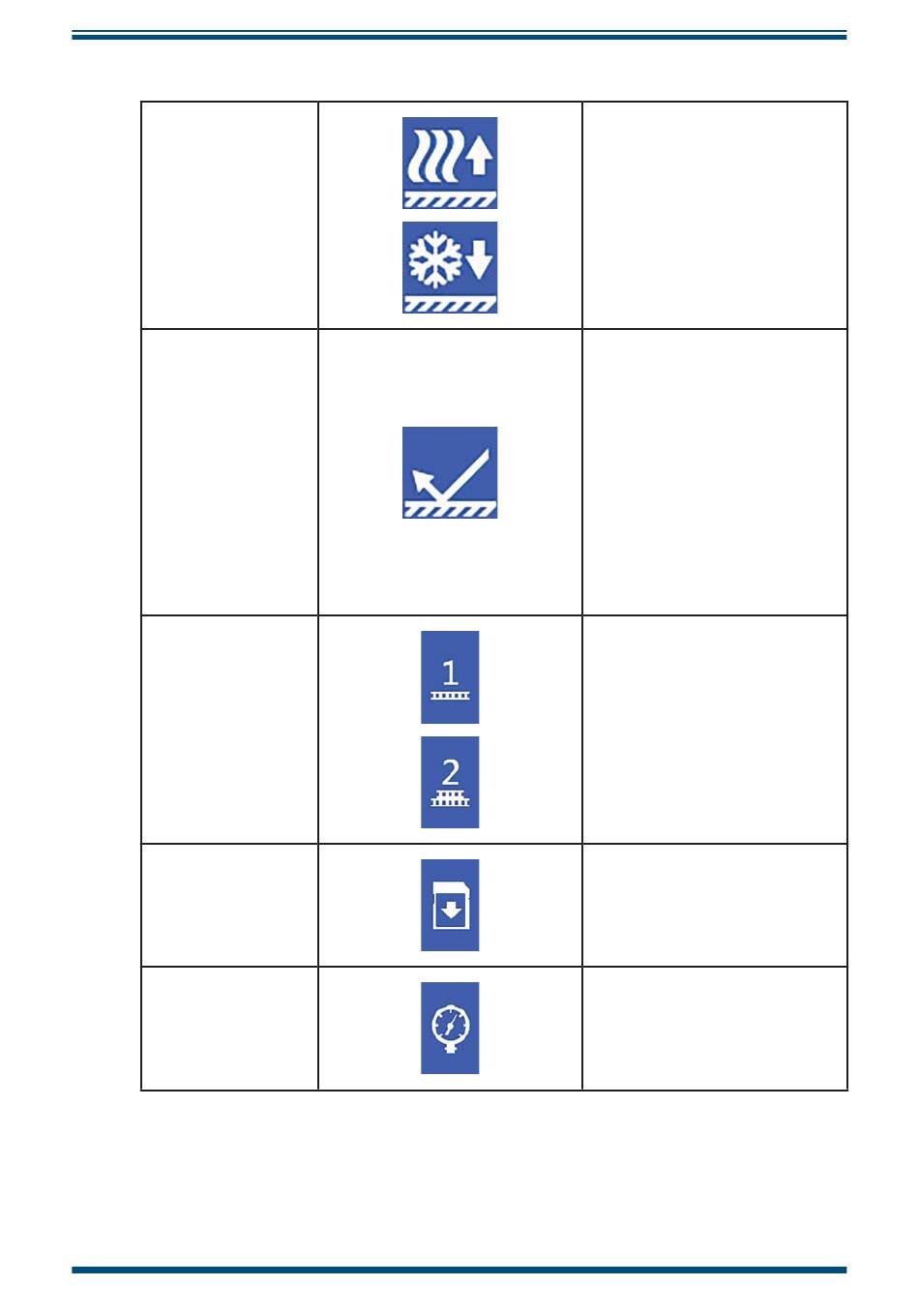

Sensor Status Display
TEC Drive
Optical Signal
Connected sensor
Logging
Pressure
Compensation
Michell Instruments
OPERATION
Indicates whether the sensor is
heating or cooling the mirror:
Also indicates the power level
applied as a percentage of
total possible.
Indicates the reflectivity of
the mirror, and whether this
is clean or has a condensate
formation.
The target is 100% signal level,
which indicates the optimal film
thickness has been achieved.
0% indicates that the mirror is
free of condensate.
For further information see
section 4.2.1.
Shows the sensor type that the
control unit is configured for.
Do not connect a 1-Stage
sensor to a control unit
configured for 2-Stage or vice-
versa.
When shown, the Optidew is
currently logging data to SD.
See section 4.4.6 for further
information.
Displayed when pressure
compensation is active. See
section 4.4.5 for further
information.
19
