5.6.6 Action Keys

There are six action keys on the display/action keypad:
Disable (Isolating a point)
Enable (De-Isolating a point)
Off - Turning a point OFF
On - Turning a point ON
Auto - Return a point to Auto Control

5.6.7 Entry Keypad

The ENTRY keypad is located to the far right on the operator interface panel and is
concealed by the access door. There are fourteen keys on this keypad as shown in
Figure 11.
These keys are used to enter passcodes, identifiers, or numeric data for the system.
Whenever the system expects numeric data input, the user is notified with a prompt.
Numeric data input requires an <ENTER> key press to complete the keypad entry.
Numeric keys also double as "prefix" keys. When entering a point, a prefix key must
be used to identify how the entry is made. Pressing the zone key (key 1) indicates
that the next numeric entry is a zone number. Pressing the address key (key 0)
indicates that an address identifier is entered.
Document No: 4100-M001

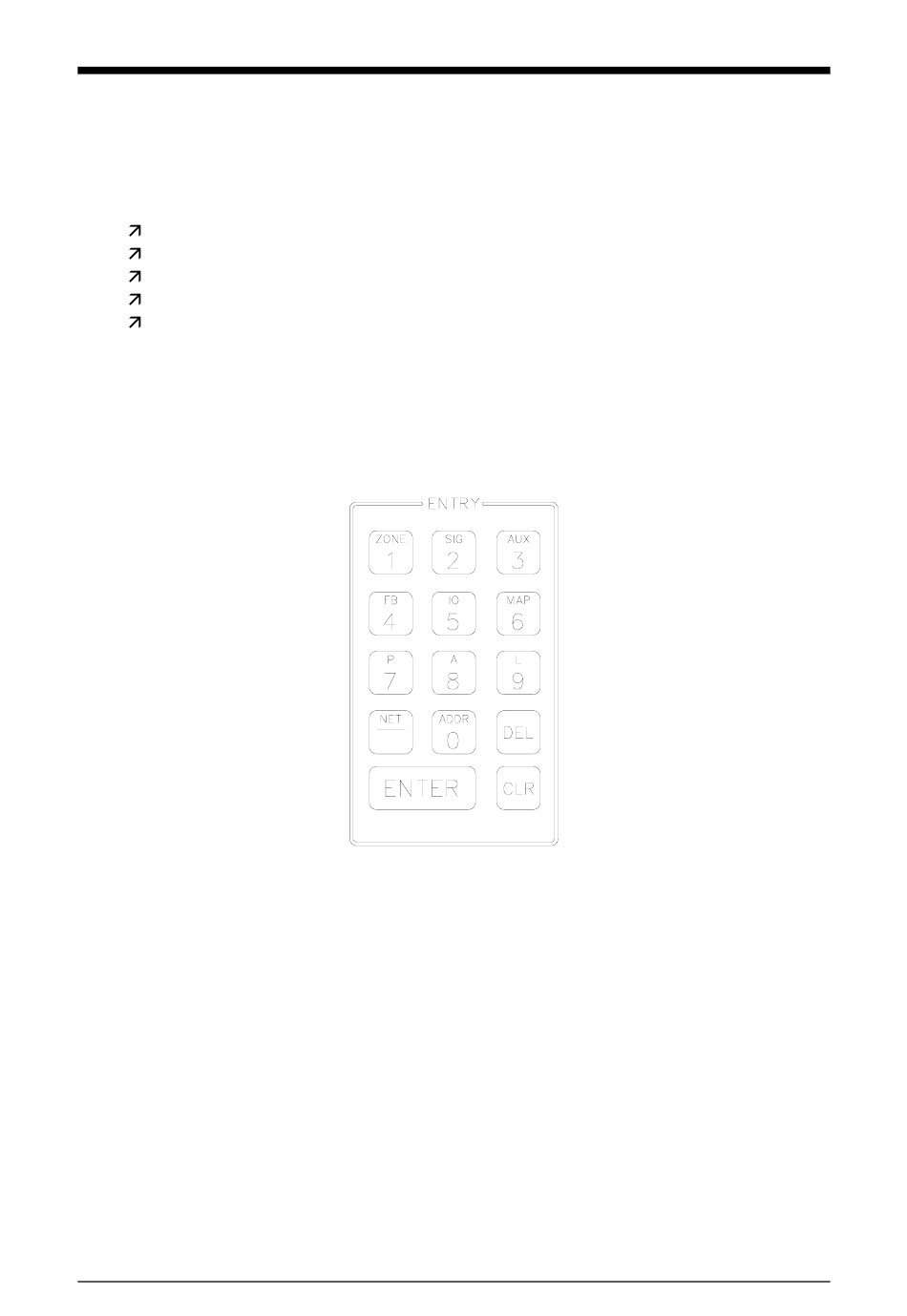

Figure 11
ENTRY Keypad
