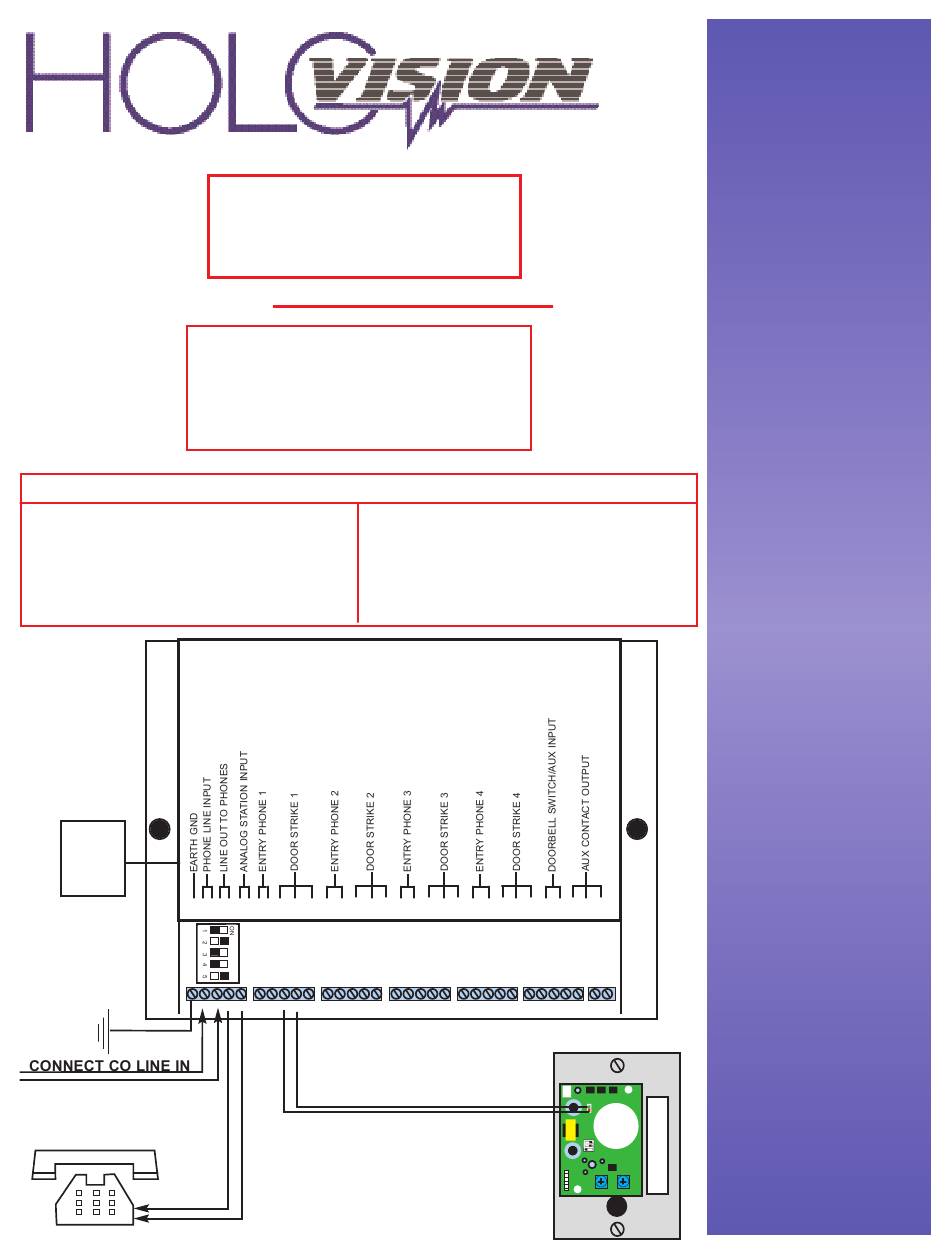

Manual Type 1.1.0.3-RF
For Models
Communication
Viking E-10 Doorbox uses "half-duplex"
communication, allowing for high speaker and
microphone volume, witout the possibility of
feedback.
Viking C-2000A allows up to 4 doorphones to
share a CO line.
VIKING
13.8
VAC
1.25A
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
Viking E-10, C-2000B
with Essex 265 Controller
101-VIK
203-VIK
107-VIK
301-VIK
201-VIK
302-VIK
Specifications
Access Control
Essex 5 button keypad
2 relays
5-6 users
16.5 VAC power supply included
Internal rectifier gives optional ''dc out'' for strikes
c
Model C-2000B
Holovision Face Plate
shown with E-10
installed
INSTALLATION
INSTRUCTIONS
501 E. Goetz Ave.
Santa Ana, Ca 92707
www.eholovision.com
Ph. 714-434-6904
Fax 800-362-0002
HOLOVISION
Advertisement
Related Manuals for HOLOVISION Viking E-10
Summary of Contents for HOLOVISION Viking E-10
- Page 1 203-VIK 107-VIK 301-VIK 201-VIK 302-VIK Specifications Communication Access Control Viking E-10 Doorbox uses “half-duplex” Essex 5 button keypad communication, allowing for high speaker and 2 relays microphone volume, witout the possibility of 5-6 users feedback. 16.5 VAC power supply included Viking C-2000A allows up to 4 doorphones to Internal rectifier gives optional ‘’dc out’’...
- Page 2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 To Door Phone 4 To Door Phone 3 To Door Phone 2 Holovision Faceplate with Keypad House Telephones...
- Page 3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 To Door Phone 4 To Door Phone 3 To Door Phone 2 Holovision Faceplate with Keypad House Telephones “OPEN”...
-
Page 4: Doorphone Programming
Programming Mode - E-10 is factory pre-set, and normally does not need re-programming. Refer to E-10 manual (Viking document which is included) for details Holovision recommends the default settings on the dip switches. See the E-10 manual for more information. Instructions for C-2000B Controller... - Page 5 Doorphone Programming Access Programming Mode (Local Access) STEP ACTION Move DIP switch 2 from OFF to ON position. Come off-hook with any house phone connected to terminals 4 & 5 LINE OUT TO PHONES. Double beep indicates accessing the programming mode. You can now program the C-2000A. The features covered in this manual are Maximum Doorphone Ring Count and Door Strike Activation Time.
- Page 6 Set Essex Relay Options Procedure GOAL: To use jumper pins on circuit board to configure standard relay options. In this configuration, Codes 1 and 2 operate Relay 1. Codes 3, 4, 5 operate Relay 2. Step Action Relay 1 and 2 activate. Only Relay 1 latch* Relay 1 Relay 2 Relay 1...
- Page 7 Programming the Essex Keypad Set Master Code Step Action Press “Program” switch once. (keypad will beep 4 times) Once “Program” switch is pressed, you have 2 minutes to complete Step 5. Press “1119”. (you will hear 3 beeps) Step 5 must be completed within 5 seconds of Step 3. Enter “Master Code”...
- Page 8 Programming the Essex Keypad Set User Code 4 Step Action Enter “Master Code”. Enter 117 (3 beeps). Enter User Code 4. Wait 5 seconds for 3 reset beeps. Set User Code 5 Step Action Enter “Master Code”. Enter 119 (3 beeps). Enter User Code 5.
- Page 9 Programming the Essex Keypad Set Activation Time Of Relay 1 (User codes 1 & 2 - see note below) Step Action Press “Program” switch (keypad will beep 4 times). Enter 1117 (3 beeps). Enter 1 for every 1 second latch time, and 5 for every 5 seconds. Examples: 6 seconds = 5, 1 8 seconds = 5, 1, 1, 1...
- Page 10 501 E. Goetz Ave. Santa Ana, Ca 92707 Ph. 714-434-6904 Fax 800-362-0002 www.eholovision.com...
