Mirage Micro™ for Kids
nasal mask
User Guide
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mirage Micro and is the answer not in the manual?

Questions and answers

Related Manuals for ResMed Mirage Micro

Summary of Contents for ResMed Mirage Micro

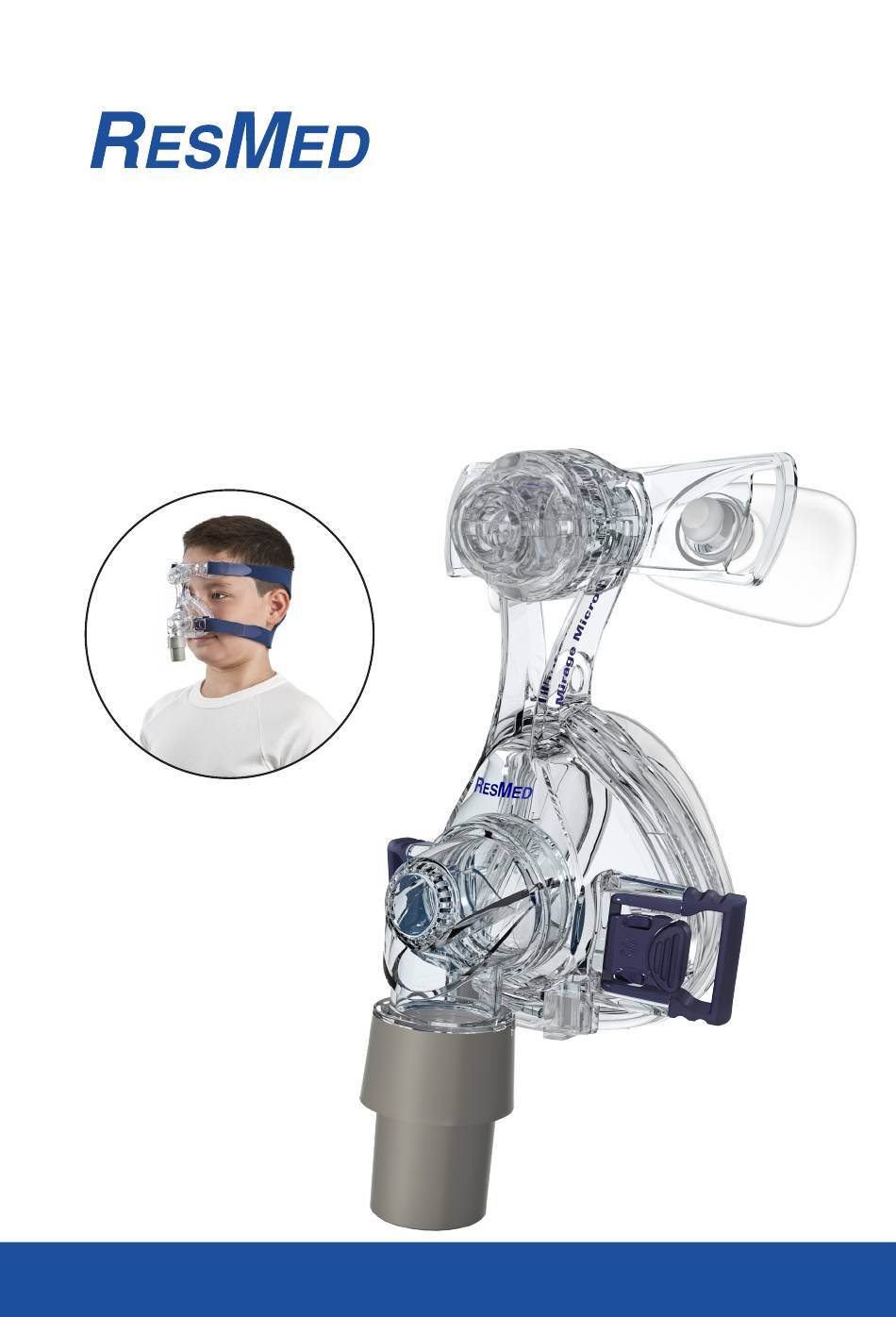

  • Page 1 Mirage Micro™ for Kids nasal mask User Guide English...
  • Page 2 Mirage Micro for Kids ™ Fitting / Mise en place / Ajuste / Colocação e ajuste...
  • Page 3 Mirage Micro for Kids...
  • Page 4 Mask components / Composants du masque / Piezas de la mascarilla / Componentes da máscara Item / Description / Description / Descripción / Descrição Article / Artículo / Item Mask frame / Entourage rigide / Armazón de la mascarilla / Armação da máscara Dial / Molette de réglage / Disco / Botão giratório Forehead support / Support frontal / Apoyo para la frente / Suporte para a testa...
  • Page 5 Removal / Enlèvement / Cómo quitarse la mascarilla / Remoção Disassembly / Démontage / Desmontaje / Desmontagem...
  • Page 6 Reassembly / Remontage / Montaje / Remontagem...

  • Page 7: Intended Use

    NASAL MASK Thank you for choosing the Mirage Micro for Kids. Intended use The Mirage Micro for Kids channels airflow noninvasively to a patient from a positive airway pressure device such as a continuous positive airway pressure (CPAP) or bilevel system.

  • Page 8: Using Your Mask

    • Remove all packaging before using the mask. Using your mask When using your mask with ResMed CPAP or bilevel devices that have mask setting options, refer to the Technical Specifications section in this user guide for mask selection options.
  • Page 9 Removal To remove the mask, disconnect one of the lower headgear clips and pull the mask and headgear up over your head. Disassembly Refer also to the disassembly illustrations in this user guide. Detach the air tubing. Unclip the headgear clips and unthread the upper headgear straps. It is not necessary to remove the headgear clips from the headgear.
  • Page 10 Reassembly Refer also to the reassembly illustrations in this user guide. Insert the ports cap. Insert the cushion into the mask frame. Ensure that the arrows at base of the cushion and mask frame are aligned. Push the forehead pads firmly into the forehead support. Insert the forehead support (a) into the mask frame and screw (b) the dial clockwise onto the pole.

  • Page 11: Reprocessing The Mask Between Patients

    Reprocessing the mask between patients Only Sleep Lab Mask (SLM) variants of the mask are intended for multi-patient re-use. When using between patients, these masks must be reprocessed according to cleaning and disinfection instructions available on ResMed.com/ downloads/masks.

  • Page 12: Troubleshooting

    Troubleshooting Problem/possible cause Solution Mask is uncomfortable Headgear straps are too tight. Adjust straps evenly. The forehead support ‘anchors’ your mask and should sit firmly on your forehead. Fit is too tight. Wind out dial. Mask is too noisy Ports cap or elbow incorrectly Remove the ports cap or elbow from the inserted.
  • Page 13 WARNING • At a fixed rate of supplemental oxygen flow, the inhaled oxygen concentration varies, depending on the pressure settings, patient breathing pattern, mask, point of application and leak rate. • The technical specifications of the mask are provided for your clinician to check that they are compatible with the CPAP or bilevel device.

  • Page 14: Technical Specifications

    Technical specifications Pressure–flow The mask contains passive venting to protect against rebreathing. As a result of manufacturing variations, the curve vent flow rate may vary. Pressure Flow (cm H (L/min) Mask pressure (cm H Physical dead space is the empty volume of the mask to Dead space the end of the swivel.

  • Page 15: Limited Warranty

    90 days or in the case of disposable masks the maximum use period. This warranty is only available to the initial consumer. It is not transferable. If the product fails under conditions of normal use, ResMed will repair or replace, at its option, the defective product or any of its components.
  • Page 16 ResMed shall not be responsible for any incidental or consequential damages claimed to have resulted from the sale, installation or use of any ResMed product. Some regions or states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you.
  • Page 17 NZ 411319, NZ 411320, NZ 411321, NZ 411322, NZ 411323, US D532512, US D547439, US D545960, US D594111, US D594112, US D594113, US D595840, US D597202. Others pending. Mirage and Mirage Micro are trademarks of ResMed Ltd and Mirage is registered in U.S. Patent and Trademark Office.
  • Page 18 168164/1 18-04 MICRO FOR KIDS USER 168164 AMER MUL Global leaders in sleep and respiratory medicine www.resmed.com...
