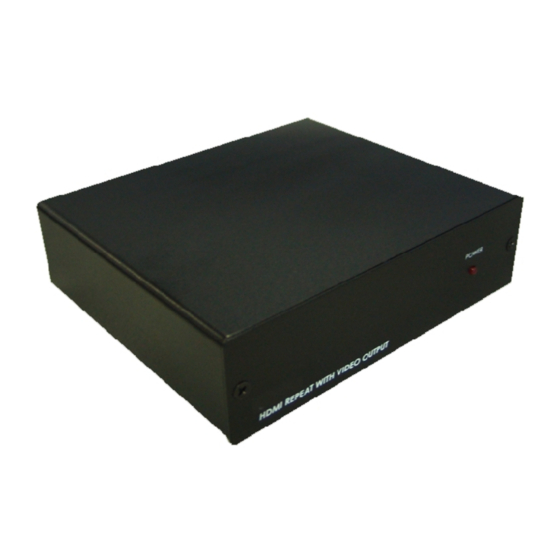

- Page 1 HDMI to Video CV/SV Downscaler - ID# 15006 with HDMI pass - Operation Manual...
- Page 2 Introduction HDMI to CV/SV Converter is designed to convert digital signal from HDMI (or DVI + Coaxial) source to analog signal of NTSC or PAL system, with L/R stereo audio. Besides S-Video and Composite Video outputs, it also provides one bypass HDMI output to deliver original signal, and a Coaxial output to send S/PDIF digital audio to audio amplifier.
- Page 3 Operation Controls and Functions INPUT A Both video and audio from HDMI source* O U T P U T A HDMI HDMI - > Bypass, output original video and audio from COAXIAL -> Output digital audio from HDMI HDMI CV + UR -> Output analog video / audio converted from SV + HDMI UR ->...
-
Page 4: Hardware Description
Hardware Description The following sections describe the hardware components. Front Panel Power LED: The LED indicator will illuminate when the unit is powered on. Rear Panel 1. Coaxial Input: Connect the digital audio input port to the Coaxial output port of your source equipment such as DVD player or Set-Top-Box. 2. - Page 5 6. Composite Video/S-Video: Connect the Composite Video or S-Video port to the input port of your display. 7. TV System Switcher: Select between NTSC and PAL system for output. 8. DC 5V: Plug the 5VDC power supply into the unit and connect the adapter to the AC wall outlet Connection and Installation...
- Page 6 Support Resolutions Audio Chart Specifications Input ports: 1 x HDMI type A, 1 x Coaxial Output ports: 1 x HDMI type A, 1 x Coaxial, 2 x Stereo R/L RCA jack, 1 x Composite-Video RCA jack, 1 x R/L 1 x S-Video , 1 x R/L Power Supply: 5V/2.6A DC (US/EU standards, CE/FCC/UL certified) Dimensions (mm):...
