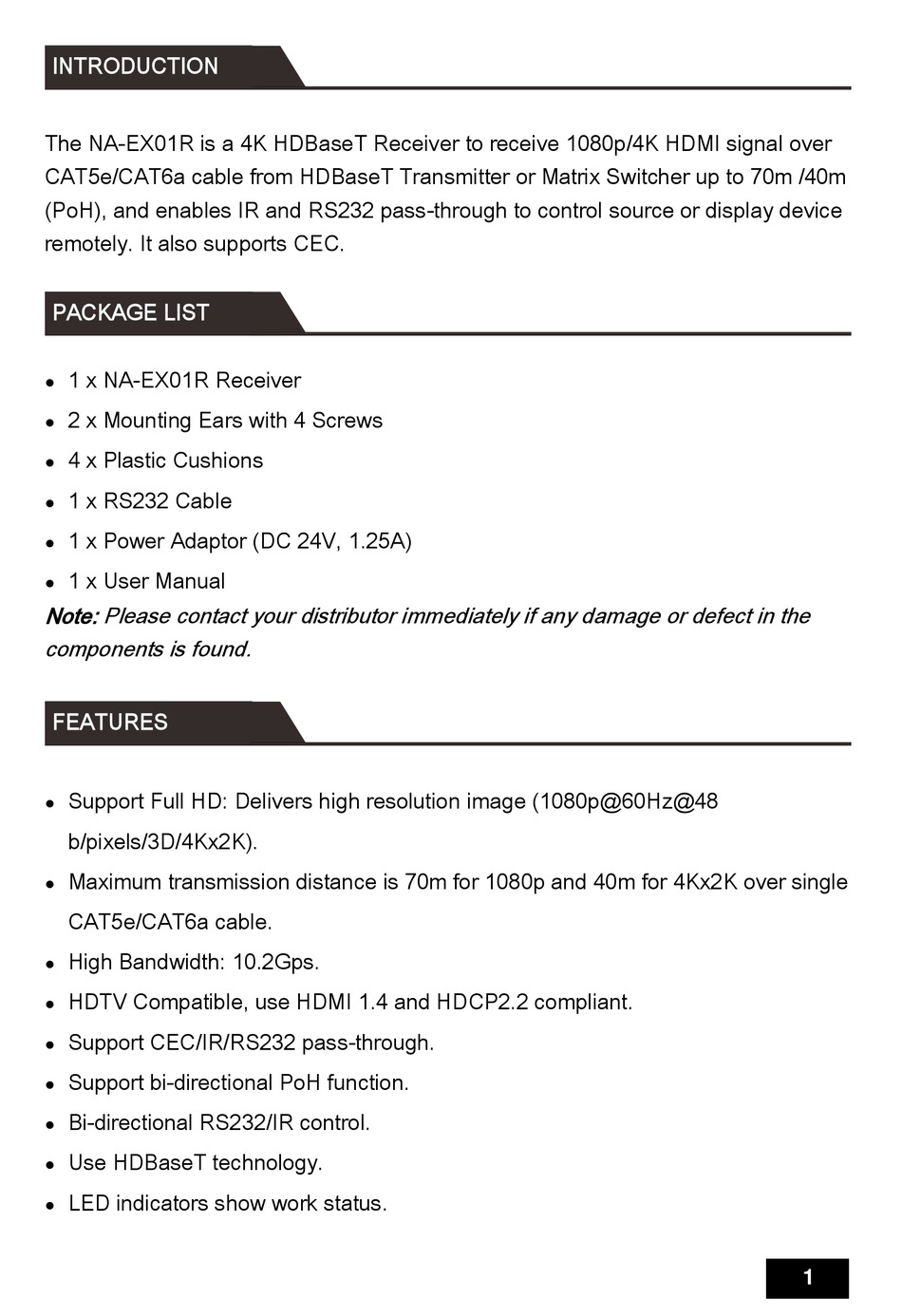

INTRODUCTION

The NA-EX01R is a 4K HDBaseT Receiver to receive 1080p/4K HDMI signal over
CAT5e/CAT6a cable from HDBaseT Transmitter or Matrix Switcher up to 70m /40m
(PoH), and enables IR and RS232 pass-through to control source or display device
remotely. It also supports CEC.

PACKAGE LIST

1 x NA-EX01R Receiver

2 x Mounting Ears with 4 Screws

4 x Plastic Cushions

1 x RS232 Cable

1 x Power Adaptor (DC 24V, 1.25A)

1 x User Manual

Note: Please contact your distributor immediately if any damage or defect in the
components is found.

FEATURES

Support Full HD: Delivers high resolution image (1080p@60Hz@48

b/pixels/3D/4Kx2K).
Maximum transmission distance is 70m for 1080p and 40m for 4Kx2K over single

CAT5e/CAT6a cable.
High Bandwidth: 10.2Gps.

HDTV Compatible, use HDMI 1.4 and HDCP2.2 compliant.

Support CEC/IR/RS232 pass-through.

Support bi-directional PoH function.

Bi-directional RS232/IR control.

Use HDBaseT technology.

LED indicators show work status.

1
