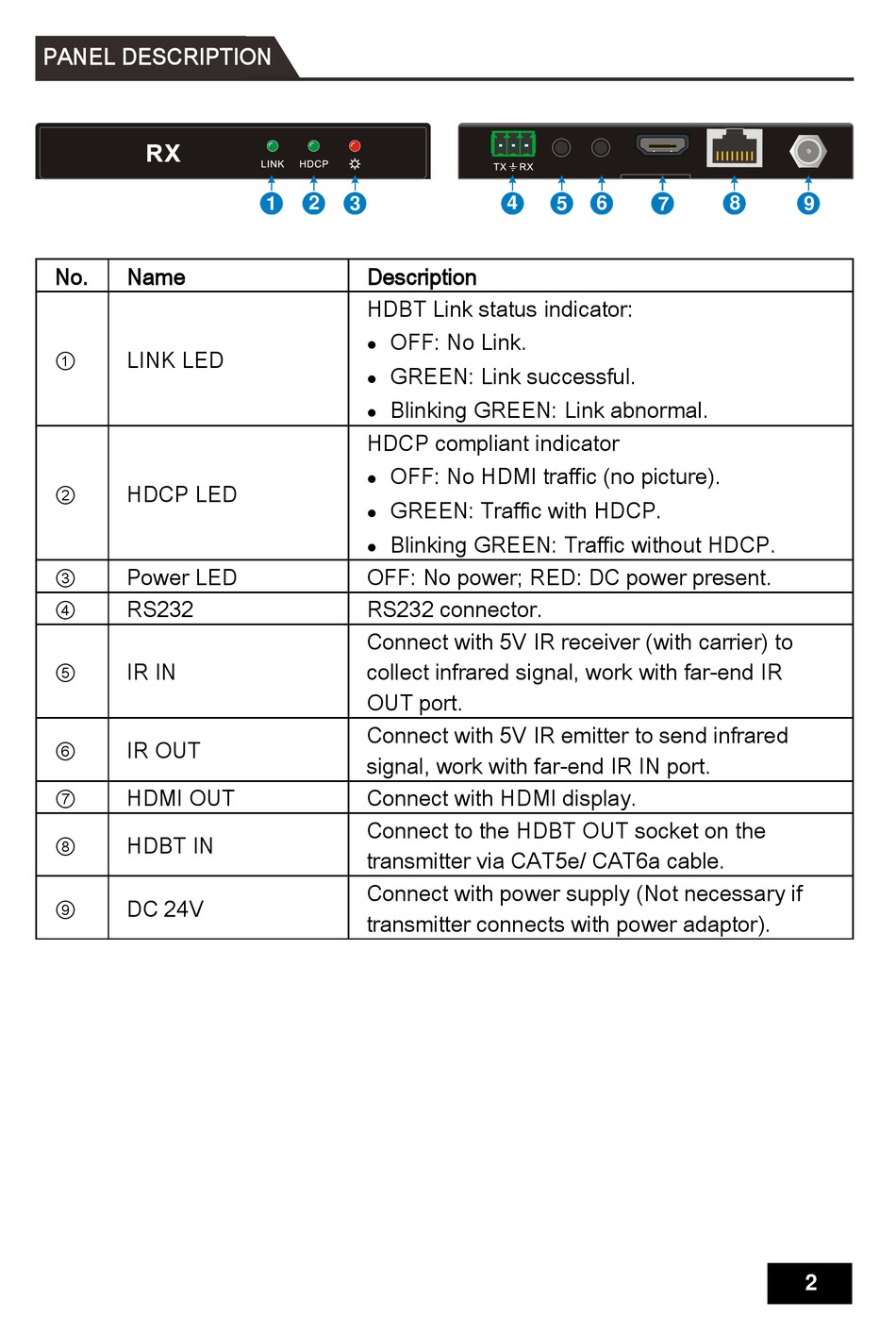

PANEL DESCRIPTION

No. Name
① LINK LED
② HDCP LED
③ Power LED
④ RS232
⑤ IR IN
⑥ IR OUT
⑦ HDMI OUT
⑧ HDBT IN
⑨ DC 24V
2 3
1
Description
HDBT Link status indicator:
OFF: No Link.

GREEN: Link successful.

Blinking GREEN: Link abnormal.

HDCP compliant indicator
OFF: No HDMI traffic (no picture).

GREEN: Traffic with HDCP.

Blinking GREEN: Traffic without HDCP.

OFF: No power; RED: DC power present.
RS232 connector.
Connect with 5V IR receiver (with carrier) to
collect infrared signal, work with far-end IR
OUT port.
Connect with 5V IR emitter to send infrared
signal, work with far-end IR IN port.
Connect with HDMI display.
Connect to the HDBT OUT socket on the
transmitter via CAT5e/ CAT6a cable.
Connect with power supply (Not necessary if
transmitter connects with power adaptor).
4 5 6
7
8 9
2
