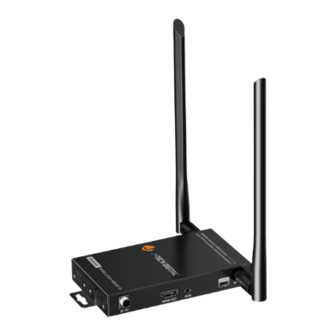

4k@60hz wireless hdmi extender up to 196ft transmitter & receiver kit with ir

Advertisement

Quick Links

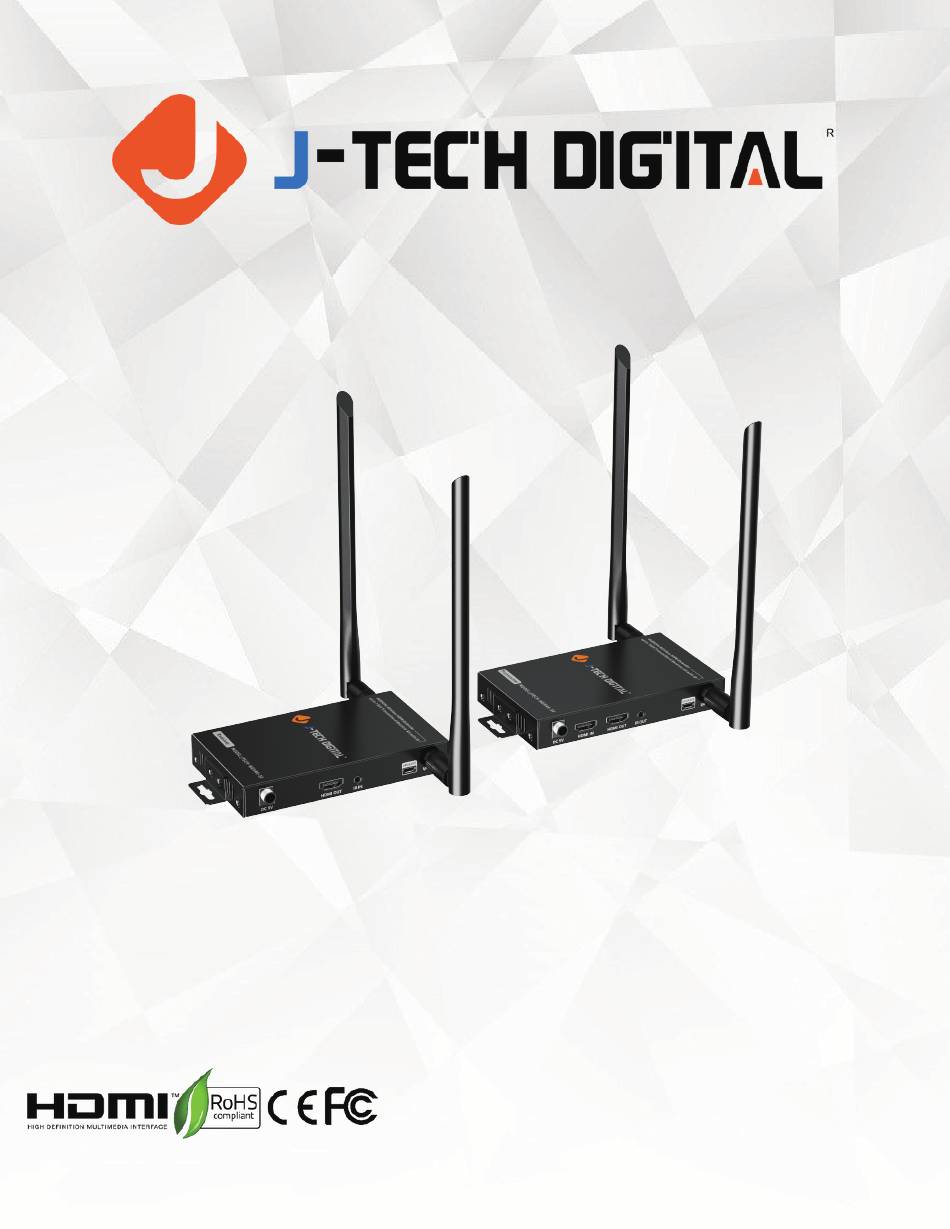

V1.0
USER MANUAL
4K@60Hz Wireless HDMI Extender
up to 196ft Transmitter & Receiver Kit with IR
JTECH-WEX4K-50
J-TECH DIGITAL INC.
9807 EMILY LANE
STAFFORD, TX 77477
TEL: 1-888-610-2818
E-MAIL: SUPPORT@JTECHDIGITAL.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JTECH-WEX4K-50 and is the answer not in the manual?

Questions and answers

Summary of Contents for J-Tech Digital JTECH-WEX4K-50

  • Page 1 V1.0 USER MANUAL 4K@60Hz Wireless HDMI Extender up to 196ft Transmitter & Receiver Kit with IR JTECH-WEX4K-50 J-TECH DIGITAL INC. 9807 EMILY LANE STAFFORD, TX 77477 TEL: 1-888-610-2818 E-MAIL: SUPPORT@JTECHDIGITAL.COM...
  • Page 4: Table Of Contents

    Table of Contents 1. Introduction 2. Features 3. Package Contents 4. Installation Requirements 5. Panel Description 6. Installation Procedures 7. FAQ 8. Specification 9. Maintenance 10. Warranty 11. Mail-In Services 12. Limited Warranty Limits and Exclusions...
  • Page 5: Introduction

    1. Introduction This is a 4K@60Hz HDMI wireless extender, including a transmitter and a receiver. Adopting ipcolor STREAM technology can realize high definition and low-latency transmission. Based on the 5G wireless frequency band, with stable anti-interference and safety performance. It supports 1-to-1 wireless transmission, and the transmission distance can reach 50 meters, effectively solving problems caused by complicated wiring.
  • Page 6: Package Contents

    3. Package Contents Transmitter x1 Receiver x1 DC 12V/1A adapter x2 IR receiver extension IR blaster extension Antenna x4 cable x1 cable x1 Grounding User manual x1 screw x2...
  • Page 7: Installation Requirements

    4. Installation Requirements 1. HDMI source device (DVD, game console, PC, etc.) 2. HDMI display device (TV, projector, LED screen, etc.) 5. Panel Description 5.1 Transmitter (TX) ① ②③④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ① Antenna ① Connect with antennas connectors The indicator will turn blue when the power is ②...
  • Page 8 5.2 Receiver (RX) ① ②③④ ⑤ ⑥ ⑦ ⑧ ⑨ ① Antenna ① Connect with antennas connectors The indicator will turn blue when the power is ② Power indicator turned on a) Slow flash: waiting for connection ③ b) Steady on: connection succeeded WiFi indicator c) Quick flash: SSID Pairing mode a) Light off: no HDMI signal...
  • Page 9: Installation Procedures

    6. Installation Procedures 6.1 Connection Diagrams One to one connection HDMI IN HDMI OUT Video Source HDMI Display HDMI Display 6.2 Connection Instructions 1) Connect the source device to the HDMI IN port of the transmitter with an HDMI cable, and connect the HDMI OUT port of the receiver to the display device with another HDMI cable.
  • Page 10: Faq

    Frequency Channel 1 5.180 GHz Channel 2 5.200 GHz Channel 3 5.220 GHz Channel 4 5.240 GHz 7. FAQ Q: Why the receiver and transmitter cannot be connected, showing "Search ipcolor Tx..." on the screen? A: 1) Move transmitter and receiver closer. 2) Re-power the transmitter or receiver.
  • Page 11: Specification

    8. Specification Items Specifications Voltage/Current DC 12V/1A Power Supply Power consumption TX ≤ 6W, RX ≤ 4W HDMI version HDMI 2.0 HDCP version HDCP 1.4/HDCP 2.2 Maximum transfer 18Gbps rate HDMI 3840x2160@24/30/50/60Hz, Performance Resolution 1080P@50/60Hz, 720P@50/60Hz, supported and Interface 1920x1200, 2560x1440, 2560x1600 Input and output TMDS signal Input and output...
