Summary of Contents for J-Tech Digital JTD-791

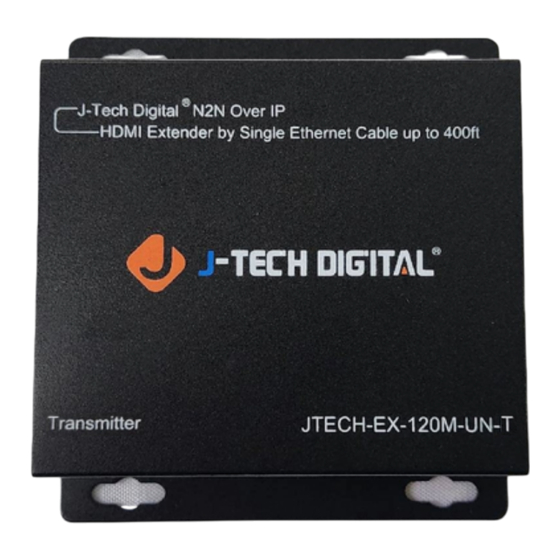

- Page 1 V2.0.1 USER MANUAL HDMI Extender By Single Ethernet Cable up to 400ft. JTD-791 | JTECH-EX-120M-UN-T (Transmitter) JTD-792 | JTECH-EX-120M-UN-R (REceiver) J-TECH DIGITAL INC. 9807 EMILY LANE STAFFORD, TX 77477 TEL: 1-888-610-2818 E-MAIL: SUPPORT@JTECHDIGITAL.COM...
- Page 2 Scan the QR code below or visit https://resource.jtechdigital.com/?q=JTECH-EX-120M-UN- to view and access detailed digital resources regarding this unit.
- Page 3 Safety Instructions: Before using this product, please carefully read the following safety instructions to ensure its proper use and keep this manual for future reference: To prevent electric shock, do not attempt to open the product. Only qualified personnel should perform any repairs or maintenance. Always place the product on a stable, flat surface to prevent it from falling.
-
Page 4: Table Of Contents
Table of Contents Introduction Features Specifications Panel Description Package Contents Connecting and Operating Typical Applications Transmitter / Receiver IP and MAC Address Setup Frequently Asked Questions Maintenance Warranty Mail-In Services Limited Warranty Limits and Exclusions... -
Page 5: Introduction
1. Introduction The J-Tech Digital JTD-EX-120M-UN-T transmitter works in conjunction with JTD-EX-120M-UN-R receiver and allows users to use these extenders in a point - point, point - many, or many to many configurations. The point - many, and many to many configurations can be achieved using the JTECH-NS24 or JTECH-NS48 A/V over IP gigabit ethernet switch. -
Page 6: Panel Description
4. Panel Description... -
Page 7: Package Contents
5. Package Contents (1) x Transmitter (1) x IR-TX Cable (1) x DC5V/1A Power Adapter (1) x User Manual 6. Connecting and Operating Connect the HDMI source device (such as Blu-ray, Media Player, Laptop etc.) to the HDMI port on the transmitter Connect a Cat5e/6 cable to the ethernet ports of both the transmitter and the receiver units (The cables must follow the standard of EIA-TIA 568B) Connect the HDMI display to the HDMI port on the receiver... -
Page 8: Typical Applications
Plug in the IR-TX cable in to the IR port on the transmitter, and the IR-RX cable in to the IR port on the receiver *Note: Place the IR transmitter cable’s emitter bulb directly in front of the source devices’ IR window Ensure that the IR receiver is in direct line of sight with the remote control of the source device Insert/extract cables gently 7. - Page 9 Point - Many JTD-793 Switch...
-
Page 10: Transmitter / Receiver Ip And Mac Address Setup
Many - Many JTD-793 Switch 8. Transmitter / Receiver IP and MAC Address Setup An HTTP server is embedded in each transmitter and receiver. You can set up IP address for these extenders via web browser. The default IP address of the TX is 192.168.168.55, MAC address is 00:0b:78:00:60:01 The default IP address of the RX is 192.168.168.56, MAC address is 00:0b:78:00:60:02 Step 1: Assign the PC (or laptop) a static IP address. -
Page 11: Frequently Asked Questions
Digital ethernet cables which can be found on our website. 2) Can I use these transmitter and receivers with other models? A. No. The J-Tech Digital JTD-EX-120M-UN-T transmitter only works with the JTD-EX-120M-UN-R receivers. 3) Do these models supports 4K resolution? -
Page 12: Maintenance
4) What kind of switch is required for a point-many or many-many configuration? A. You can use a managed switch with VLAN function for a point-many or many-many configuration, but we recommend using the JTD-793 24-port A/V over IP ethernet switch or the JTD-636 48-port A/V over IP ethernet switch with these extenders since our switches have a custom web-interface to help with input/output routing. -
Page 13: Mail-In Services
12. Mail-In Service When shipping the unit, carefully pack and send it prepaid, adequately insured, and preferably in the original carton. Include a letter detailing the complaint and provide a day time phone and/or email address where you can be reached. 13. - Page 14 WWW.JTECHDIGITAL.COM PUBLISHED BY J-TECH DIGITAL INC. 9807 EMILY LANE STAFFORD, TX 77477 TEL: 1-888-610-2818 E-MAIL: SUPPORT@JTECHDIGITAL.COM...
