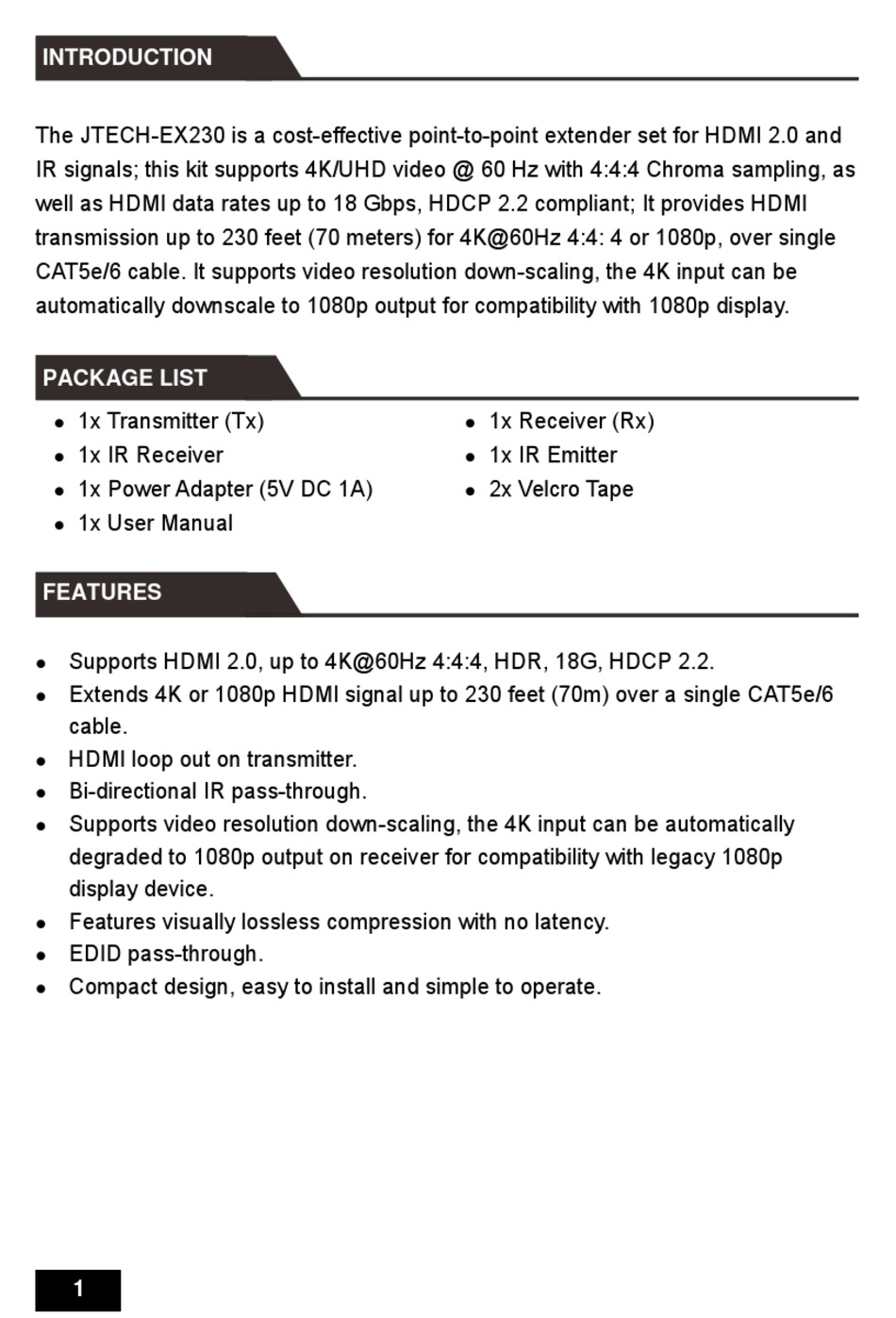

INTRODUCTION

The JTECH-EX230 is a cost-effective point-to-point extender set for HDMI 2.0 and
IR signals; this kit supports 4K/UHD video @ 60 Hz with 4:4:4 Chroma sampling, as
well as HDMI data rates up to 18 Gbps, HDCP 2.2 compliant; It provides HDMI
transmission up to 230 feet (70 meters) for 4K@60Hz 4:4: 4 or 1080p, over single
CAT5e/6 cable. It supports video resolution down-scaling, the 4K input can be
automatically downscale to 1080p output for compatibility with 1080p display.

PACKAGE LIST

1x Transmitter (Tx)

1x IR Receiver

1x Power Adapter (5V DC 1A)

1x User Manual


FEATURES

Supports HDMI 2.0, up to 4K@60Hz 4:4:4, HDR, 18G, HDCP 2.2.

Extends 4K or 1080p HDMI signal up to 230 feet (70m) over a single CAT5e/6

cable.
HDMI loop out on transmitter.

Bi-directional IR pass-through.

Supports video resolution down-scaling, the 4K input can be automatically

degraded to 1080p output on receiver for compatibility with legacy 1080p
display device.
Features visually lossless compression with no latency.

EDID pass-through.

Compact design, easy to install and simple to operate.

1
1x Receiver (Rx)

1x IR Emitter

2x Velcro Tape

