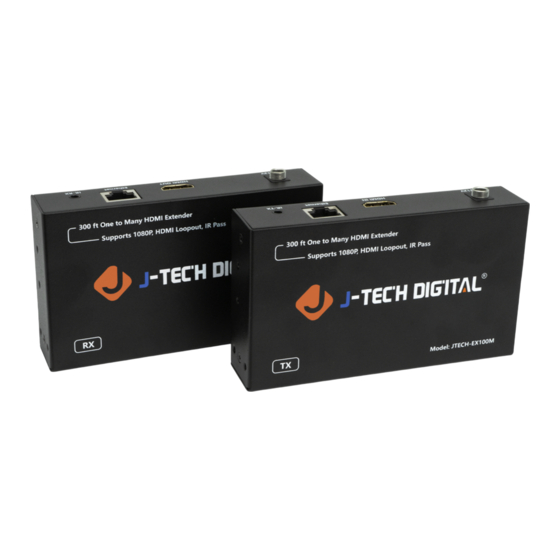

- Page 1 V1.0 USER MANUAL 1080P 60Hz One - Many HDMI Ethernet Extender Up to 328Ft JTD-2994 | JTECH-EX100M J-TECH DIGITAL INC. 9807 EMILY LANE STAFFORD, TX 77477 TEL: 1-888-610-2818 E-MAIL: SUPPORT@JTECHDIGITAL.COM...
- Page 2 Scan the QR code below or visit https://resource.jtechdigital.com/products/2994 to view and access detailed digital resources regarding this unit.
- Page 3 Safety Instructions: Before using this product, please carefully read the following safety instructions to ensure its proper use and keep this manual for future reference: To prevent electric shock, do not attempt to open the product. Only qualified personnel should perform any repairs or maintenance. Always place the product on a stable, flat surface to prevent it from falling.
-
Page 4: Table Of Contents
Table of Contents Features Specifications Package Contents Panel Description Connecting and Operating Typical Application Maintenance Warranty Mail-In Services Limited Warranty Limits and Exclusions... -
Page 5: Features
1. Features Extends HDMI signal up to 328ft (100m) over single CAT5E/CAT6. The highest video resolution is 1080P 60Hz (YUV444). HDMI1.4, HDCP1.4. Supports infrared extension transmission control. H.265 encoding, low bandwidth and high image quality. Low power consumption, less than 2w 2. -
Page 6: Package Contents
3. Package Contents (1) x Transmitter (1) x Receiver (2) x DC 12V/1A Power Adapters (1) x IR TX Cable (1) x IR RX Cable (1) x User Manual 4. Panel Description... -
Page 7: Connecting And Operating
5. Connecting and Operating Connect the HDMI signal source (Such as DVD, STB etc.) to HDMI Transmitter. Connect CAT5e or 6 cables to both the Ethernet of the transmitter and Ethernet port of the Receiver. (The cables must follow the standard of EIA-TIA 568B). Connect the HDMI display (Such as HD-LCD, HD-DLP) into the Receiver. -
Page 8: Typical Application
6. Typical Application One - One One - More... -
Page 9: Maintenance
7. Maintenance Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner, or benzine to clean. 8. Warranty If your product does not work properly because of a defect in materials of workmanship, our company (referred to as “the warrantor”) will, for the length of the period indicated as below, “Parts and Labor (1) Year”, which starts with the date of original purchase (“Limited Warranty period”), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product. - Page 10 WWW.JTECHDIGITAL.COM PUBLISHED BY J-TECH DIGITAL INC. 9807 EMILY LANE STAFFORD, TX 77477 TEL: 1-888-610-2818 E-MAIL: SUPPORT@JTECHDIGITAL.COM...
