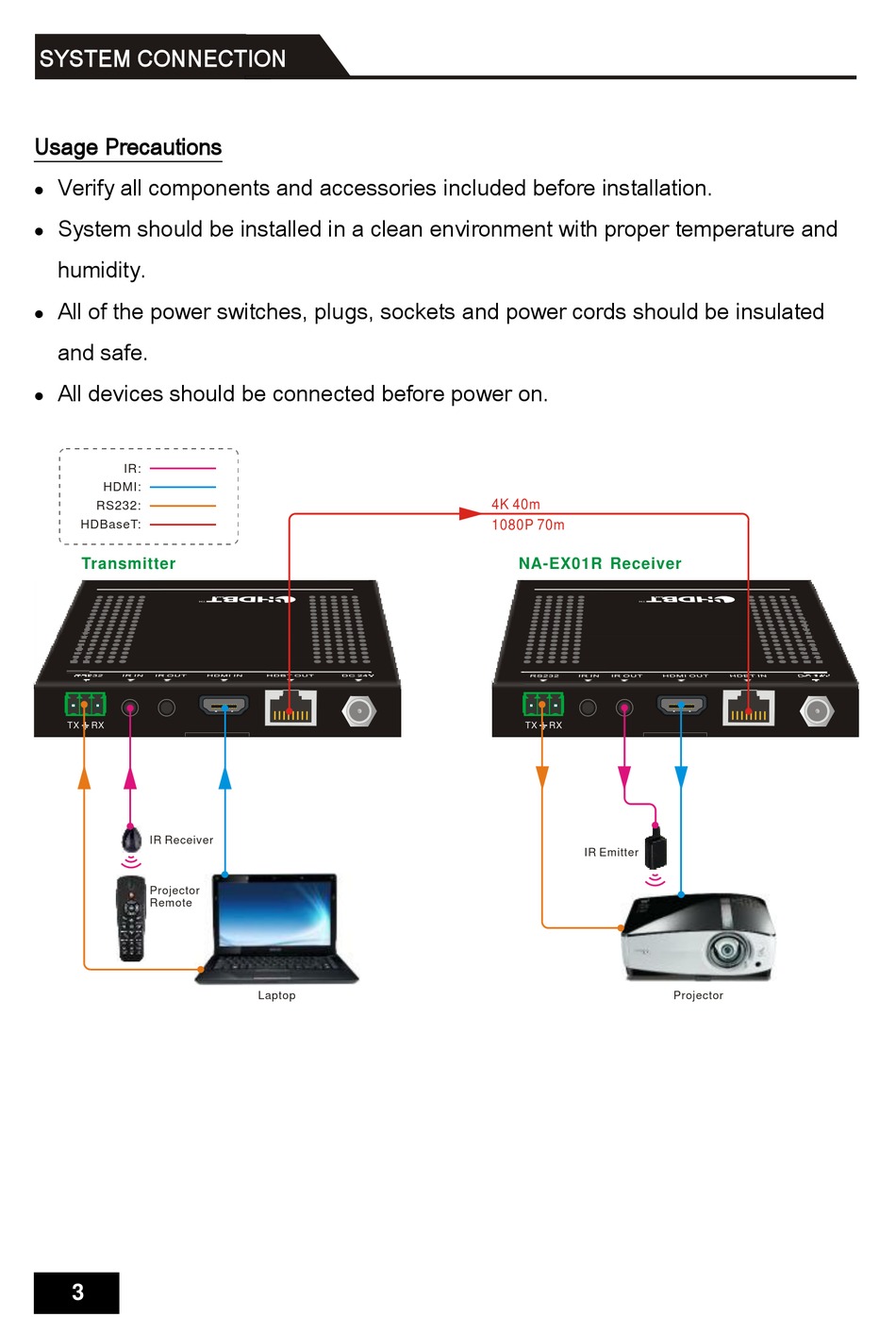

SYSTEM CONNECTION
Usage Precautions
Verify all components and accessories included before installation.
System should be installed in a clean environment with proper temperature and
humidity.
All of the power switches, plugs, sockets and power cords should be insulated
and safe.
All devices should be connected before power on.
IR:
HDMI:
RS232:
HDBaseT:
Transmitter
TX
RX
IR Receiver
Projector
Remote
3
Laptop
4K 40m
1080P 70m
NA-EX01R Receiver
TX
RX
IR Emitter
Projector
