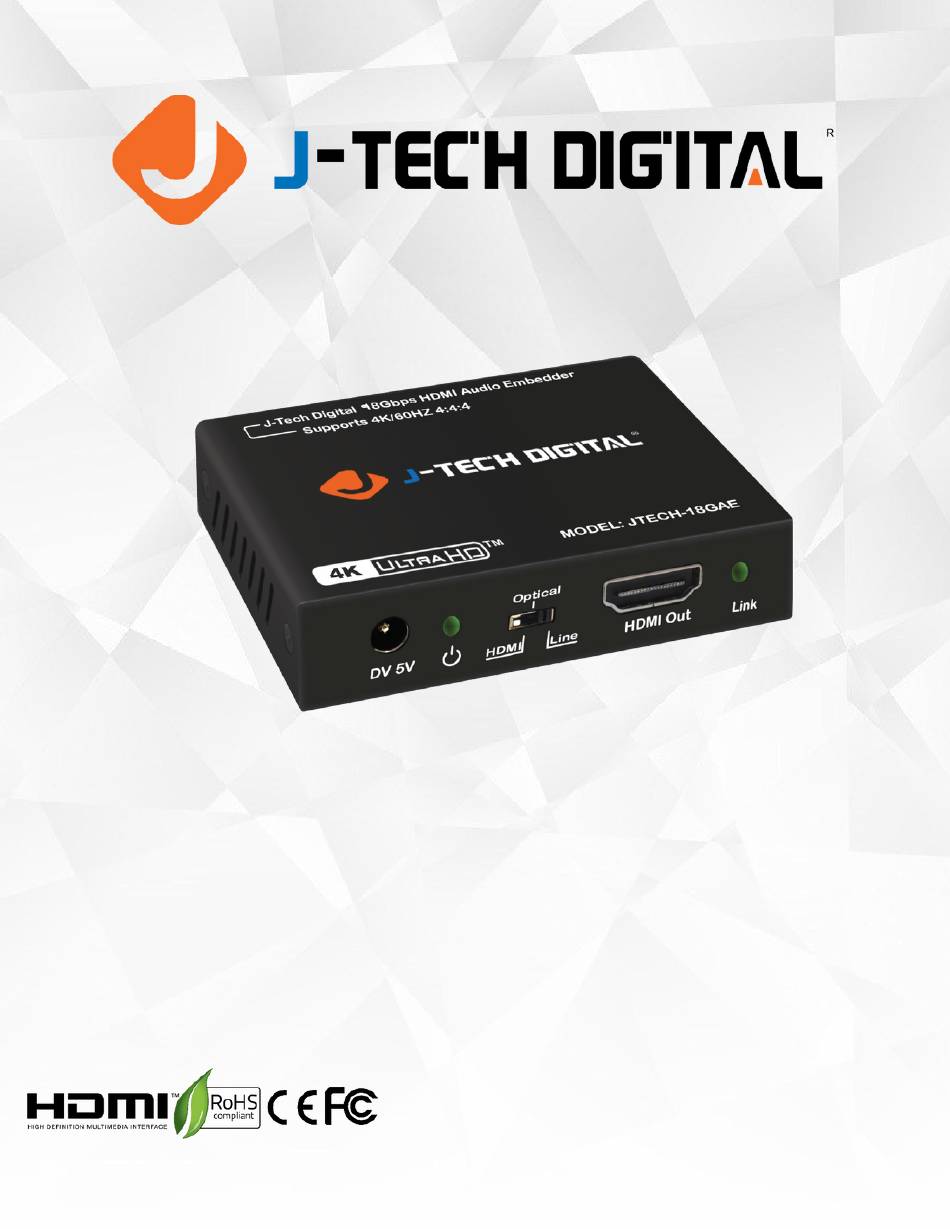

- Page 1 V1.0 USER MANUAL 4K 60Hz 18Gbps HDMI digital / Analog Audio Embedder JTD-1729 | JTECH-18GAE J-TECH DIGITAL INC. 9807 EMILY LANE STAFFORD, TX 77477 TEL: 1-888-610-2818 E-MAIL: SUPPORT@JTECHDIGITAL.COM...
- Page 2 Scan the QR code below or visit https://resource.jtechdigital.com/products/1729 to view and access detailed digital resources regarding this unit.
- Page 3 Safety Instructions: Before using this product, please carefully read the following safety instructions to ensure its proper use and keep this manual for future reference: To prevent electric shock, do not attempt to open the product. Only qualified personnel should perform any repairs or maintenance. Always place the product on a stable, flat surface to prevent it from falling.
-
Page 4: Table Of Contents
Table of Contents 1. Introduction 2. Features 3. Package Contents 4. Specifications 5. Operation Controls and Functions 5.1 Front Panel 5.2 Rear Panel 6. Application Example 7. Maintenance 8. Warranty 9. Mail-In Services 10. Limited Warranty Limits and Exclusions... -
Page 5: Introduction

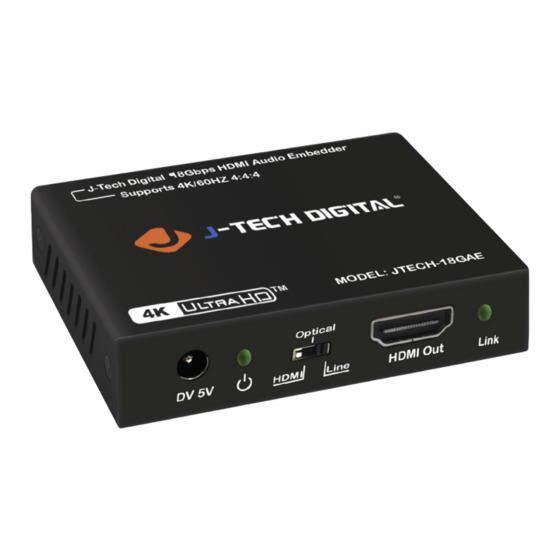

1. Introduction The HDMI 18Gbps Audio Embedder could embed audio signals from digital optical or analog stereo Line audio to HDMI output. Further, both input and output HDMI support video resolution up to 4K2K@50/60Hz (YUV444). It supports 10bits HDR (High Dynamic Range) pass through and HDMI high resolution digital audio formats bypass, LPCM 2CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos a d DTS-HD Master Audio, audio sampling rate up to 192 kHz. -
Page 7: Operation Controls And Functions
5. Operation Controls and Functions 5.1 Front Panel... -
Page 8: Rear Panel
Rear Panel... -
Page 9: Application Example
6. Application Example... -
Page 10: Maintenance
7. Maintenance Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner, or benzine to clean. 8. Warranty If your product does not work properly because of a defect in materials of workmanship, our company (referred to as “the warrantor”) will, for the length of the period indicated as below, “Parts and Labor (1) Year”, which starts with the date of original purchase (“Limited Warranty period”), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product. - Page 11 WWW.JTECHDIGITAL.COM PUBLISHED BY J-TECH DIGITAL INC. 9807 EMILY LANE STAFFORD, TX 77477 TEL: 1-888-610-2818 E-MAIL: SUPPORT@JTECHDIGITAL.COM...
